New COM Express Mini CPU Module with Intel Atom E6x0T processor from VersaLogic

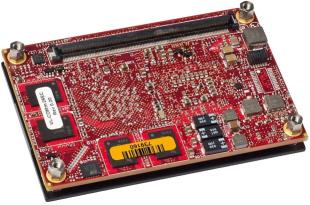

The VL-COMm-26 is an extremely small and rugged COM Express board with Type 10 pinout. At roughly the size of a business card the VL-COMm-26 offers significant performance and lower power consumption (7W−8W typical) in a very compact package.

The VL-COMm-26 has been engineered to meet industry demands for smaller, lighter, and lower power embedded systems, while adhering to stringent regulatory standards, making it ideal for medical, military, robotic and automotive markets.

The standard Type 10 pin-out provides industry-standard system interfaces including Gigabit Ethernet with network boot capability, seven USB ports, three x1 PCIe lanes, two serial interfaces, Intel High-Definition Audio (HDA), LPC, and SMBus to the carrier board.

An auxiliary board-to-board connector provides two additional serial interfaces and a CAN interface. Dual SATA 3 Gb/s interfaces support high-capacity storage. A microSD socket provides flexible solid-state drive (SSD) options. Designed and tested for industrial temperature (-40º to +85ºC) operation, the rugged VL-COMm-26 also meets MIL-STD-202G specifications for shock and vibration.

Soldered-on RAM provides additional ruggedisation for use in extremely harsh environments, and heatsink or heat plate versions provide fanless heat dissipation. A wide input voltage range of 8 to 17 volts (12V typ.) simplifies system power supply requirements. It is fully compatible with 12V automotive-type power systems. The VL-COMm-26 is a newly released product. It may be available in limited quantities. Please contact Sarsen Technology for details on this product and availability of sample units.
