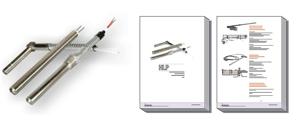

High watts density cartridge heaters.

One of Clarian’s specialties, these heaters are designed to be inserted into a metal block and can operate up to 750 degrees centigrade.

Our cartridge heaters are cylindrically ground for greater accuracy and longer life and the special construction allows an extremely high surface loading providing maximum power in the smallest possible space.

Cartridge heaters are normally inserted into a metal block due to their high surface loading. Our cartridge heaters can be made with distributed wattage allowing greater heater output at the ends as opposed to the middle. They can also be made with low and high voltages as well as dual voltages and incorporate temperature sensors. We can supply cartridge heaters with self regulating elements if required and in very small diameters down to 2.8mm. We can also supply very long cartridge heaters in excess of 2 metres in length and heaters with special mechanical fittings and connectors.  Our exceptional service provides you with the

EXACT cartridge heater you need.
•    Maximum accuracy
•    High surface loading (smallest volume; maximum power)
•    Ground sheath
•    Longer lasting
•    Huge range of choices to suit you

Bespoke Design to Suit Your Exact Requirements

•    Metric or Imperial sizes
•    Choice of diameters from 2.8mm
•    Choice of lengths up to 3 metres
•    Choice of cables
•    Choice of cable exits
•    Moisture protection available
•    Wattage distributed to specific areas of the cartridge as required
•    Low, high or dual voltage
•    Integrated temperature sensor
•    Self regulating ptc elements

Special mechanical fittings and connectors available

Applications include; Plastics, apparatus construction, woodworking, paper machinery, medical technology, foundries, high vacuum technology, laboratories and packaging.
