New High-Current Contact Tested to LV215: Pluggable on Three Sides for SMT and THT Soldering

Schalksmühle, 20.03.2025. Lumberg expands its portfolio of high-current contacts with the new 4580 01 high-current contact, designed for both SMT (reflow) and THT soldering.

This in-novative phase contact offers a flexible solution for various assembly requirements and is par-ticularly suited for high-current applications.

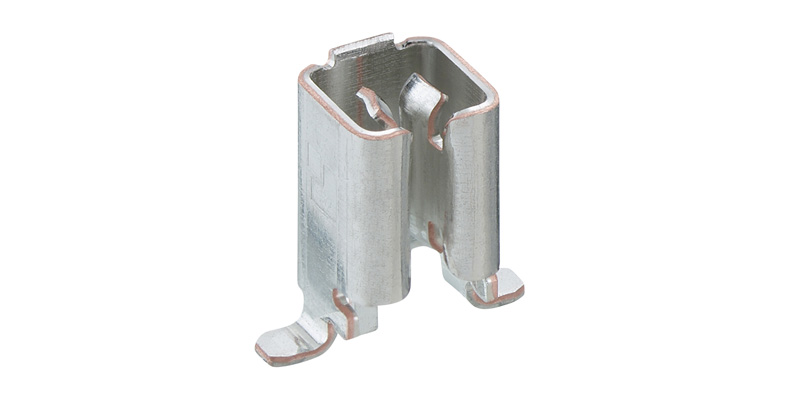

The 4580 01 high-current contact is characterized by its versatility and robust – and at 4.9 x 4.95 mm (W x D) particularly space-saving – design, which really comes into its own in tight in-stallation spaces. It can be plugged in from the top, bottom, and side, and is compatible with many standard blade contacts. The connection is made using flat blade connectors with widths from 2.8 to 6.8 mm and a thickness of 0.8 mm (0.5 mm in preparation), enabling easy integra-tion into various PCB designs.
The high-current contact has been tested and meets the requirements of industry standard LV215 for electric vehicle applications and Volkswagen standard VW 80332 for “Motor Vehicle High-Voltage Contacts”.

Technical Highlights:
Temperature Range: -40°C to +120°C
Material: CuCr alloy, tin-plated
Electrical Performance: Contact resistance < 1 mΩ, rated current up to 56 A (depending on installation and heat dissipation)
Mechanical Durability: High pull-out forces for stable connections (e.g., 32 N ± 15 N when plugged in from the top)
Insertion Cycles: Up to 5 cycles
Tests: LV215, VW 80332

With the 4580 01 high-current contact, Lumberg offers another powerful solution that meets the growing demands and new assembly designs in electronics development. Delivered in blister tape, the contact is particularly suited for automated manufacturing processes.
