How Does RH Membrane Switch Assembly and QC Deliver Total Peace of Mind?

When you hold a finished electronic device, a medical interface, or an industrial control panel in your hand, you rarely think about the layers of complexity hidden beneath the surface. You simply expect it to work. You expect the button to click with the right amount of resistance, the display to be crystal clear, and the internal components to remain secure regardless of how much vibration, physical shock, or heat the unit endures. At RH Technical Industries, we know that this “expectation of excellence” isn’t a given—it’s engineered through a meticulous membrane switch assembly process.

While many companies can print a graphic overlay or etch/print a circuit, very few can bridge the gap between “parts” and a “product.” That bridge is our Assembly and Quality Control (QC) department. In this post, we’re taking you behind the scenes to show you how we turn raw materials into high-performance solutions and why our obsession with the “final check” is your greatest asset.

The One-Stop-Shop Advantage: Why Assembly Matters

In the world of manufacturing, there is a common pitfall: fragmentation. A customer might source their graphic overlays from one vendor, their PCBs from another, and their metal enclosures from a third. They then face the logistical nightmare of bringing those parts together, often finding that tolerances don’t match or that components fail when integrated.

At RH, we’ve spent decades perfecting the art of the “total solution.” By housing our assembly department under the same roof as our design and printing teams, we eliminate the friction of multi-vendor sourcing.

Our assembly team doesn’t just “put things together.” They are specialists in the integration of membrane switches, backlighting, shielding, and mounting. Whether it’s applying a complex adhesive layer to a curved surface or integrating LEDs into a thin-film circuit, our assembly process is designed to ensure that the sum is always greater than its parts.

More Than Just “Sticking it Together”

Precision assembly is a game of extreme tolerances. Consider a standard membrane switch assembly. It consists of multiple layers: the graphic overlay, the spacer, the circuit, and often a backplate. If these layers are misaligned by even a fraction, the tactile feel of the button is ruined, or worse, the circuit fails to close.

Our technicians use bespoke jigging and alignment tools to ensure every layer is perfectly registered. But it’s not just about the tools; it’s about the environment. Our assembly areas are managed to minimise dust and static, which are the silent killers of electronic components. By controlling the environment, we ensure that your product doesn’t just look good today but stays functional for years in the field.

Quality Control: Our Zero-Defect Mentality

If assembly is the heart of our production, Quality Control is the conscience. At RH, QC isn’t a final hurdle to clear before shipping; it is a philosophy that starts the moment a project enters our facility.

In many high-volume manufacturing environments, QC is performed on a “sampling” basis—checking one in every hundred parts. For our clients in the medical, aerospace, and defence sectors, that isn’t good enough. When a product is mission-critical, “mostly right” is a failure.

The Stages of RH Quality Assurance

We break our quality process down into three distinct phases to catch potential issues before they ever become problems:

1. Incoming Material Inspection – Quality starts with our suppliers. We don’t assume the polyester, adhesives, or inks arriving at our door are perfect. We verify them. By checking the batch consistency of our raw materials, we ensure that the base of your project is solid.
2. In-Process Verification – This is where we differ from the competition. We don’t wait until a panel is fully assembled to check it. We test at critical milestones. For example, after the circuit is printed but before the overlay is applied, we conduct electrical continuity tests. If a circuit isn’t perfect, it never makes it to the assembly stage. This saves time and ensures that no defective component is ever buried inside a finished unit.

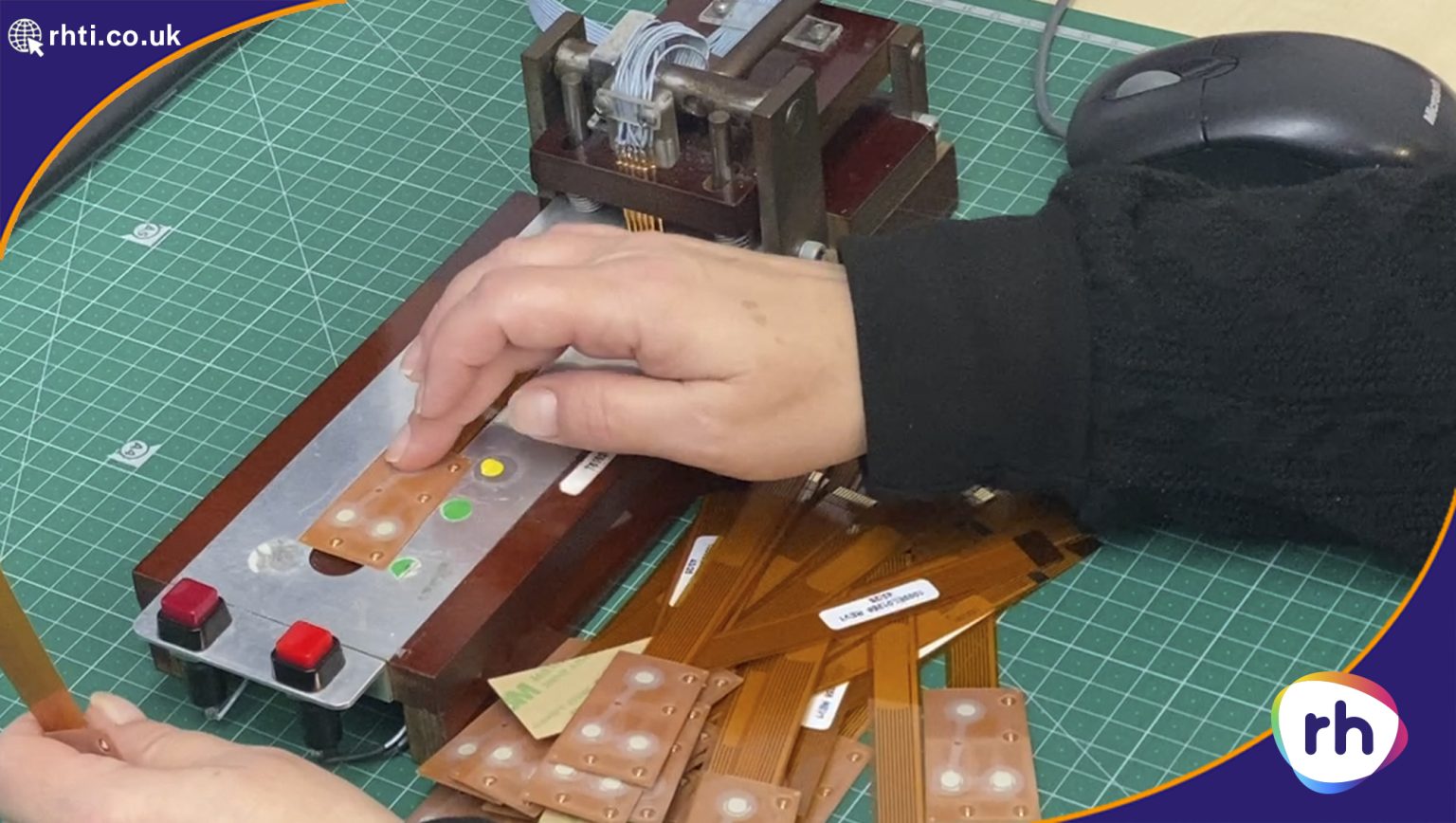

3. The Final Exit Gate Every single product that leaves RH undergoes a final, rigorous inspection. This includes:

• Visual Inspection: Checking for colour accuracy, registration, and surface finish under specialised lighting.
• Tactile Testing: Ensuring buttons have the correct “snap” and travel.
• Electrical Testing: Using automated test equipment to verify resistance, insulation, and functionality.
• Adhesion Testing: Ensuring that the bond between the product and its mounting surface meets the required industrial standards.

The Human Element in a Tech-Driven World

While we invest heavily in the latest testing technology—from digital microscopes to automated circuit testers—we believe the most important tool in our QC department is the human eye.

Our QC staff are more than inspectors; they are craftspeople with years of experience, and they know how a specific polycarbonate should feel. They can spot a microscopic imperfection in a screen-printed logo that a machine might miss. This “human touch” provides a level of intuition that is essential for bespoke manufacturing.

When you work with RH, you aren’t just getting a part that passed a computer scan. You’re getting a product that has been handled, checked, and approved by a professional who understands what your brand stands for.

Why This Matters to Your Bottom Line

It’s easy to look at QC and assembly as an added cost, but in reality, it’s a massive cost-saving measure for our customers. Here is how our commitment to quality impacts your business:

1. Reduced Returns and RMA Costs – There is nothing more expensive than a product failure in the field. Between shipping, repairs, and customer service time, a “cheap” part can quickly become a financial disaster. Our rigorous testing ensures that your failure rate stays as close to zero as possible.

2. Protecting Your Brand Reputation – Your interface is often the only part of your machine that your customer actually touches. If the overlay peels or a button stops responding, the customer doesn’t blame the component manufacturer—they blame you. RH acts as the guardian of your reputation by ensuring every touchpoint feels premium and reliable.

3. Faster Time-to-Market – By providing fully assembled, tested, and “plug-and-play” solutions, we help you streamline your own production line. Instead of spending your time troubleshooting sub-assemblies, your team can focus on the final build and get your product to market faster.

Learning from the Best: A Competitive Edge

When you look at the leaders in the industrial graphics space you see a recurring theme: a focus on extreme durability and precision. At RH, we take that a step further by offering the agility and personal service of a UK-based partner.

Unlike some larger competitors where you might feel like just another number in a global supply chain, RH offers a collaborative approach. Our assembly and QC teams often work directly with our customers’ engineers to develop custom testing protocols. If your product needs to survive 1 million actuations in a saltwater environment, we don’t just hope it works—we build a process to prove it.

The Future of Membrane Switch Assembly

As the industry moves toward “smart” surfaces and printed electronics, the assembly process is becoming even more high-tech. RH is at the forefront of this shift. We are integrating sensors, antennas, and capacitive touch technology directly into our assemblies.

These advanced technologies require an even higher level of QC. Traditional testing isn’t enough when you’re dealing with silver-ink circuits that are thinner than a human hair. This is why we are constantly updating our equipment and training our staff in the latest IPC standards. We aren’t just keeping up with the industry; we’re helping to define where it goes next.

Conclusion: Quality You Can Feel

At the end of the day, our Membrane Switch Assembly and QC department is about one thing: Trust.

Our customers trust us to deliver components that work the first time, every time. They trust us to be their final line of defence against defects. And they trust us to care as much about their product as they do.

Whether you are designing a medical diagnostic tool that requires 100% reliability or an industrial controller that needs to survive a decade in a factory, RH’s assembly and quality standards are your guarantee of success.

Next time you start a project, don’t just think about the design or the print. Think about the finish, think about the assembly. Think about the peace of mind that comes from knowing your project is in the hands of the UK’s most dedicated quality experts.

Ready to see the RH difference for yourself? Contact our team today to discuss your next assembly project or browse our case studies to see our QC standards in action.
