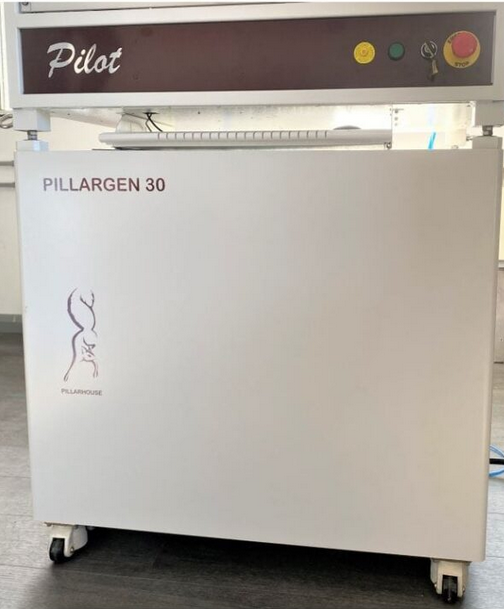

Pilot
The all-new ultra-low-cost Pilot machine has been designed as an entry-level, handload, benchtop machine for small to medium batch manufacturers, combining high levels of production flexibility with economic running costs.
Offered with two universal, quick change tooling carriers, each one can be exchanged to optimise cycle time. Each carrier is capable of handling a board size up to 330mm x 250mm (13″ x 10″).
The Pilot incorporates, as standard, our patented Drop-Jet fluxer for quick, accurate flux deposition. An optional bottom side IR pre-heat is also available; this is particularly useful when processing multi-layer PCBs or using water-based flux types.
Jade MKII
Designed to meet the needs of the small/medium batch manufacturer who requires high levels of production flexibility, the Jade MKll entry-level system offers uncompromised selective soldering quality at a very low cost.
The Jade MKII is a handload system, incorporating a universally adjustable tooling carrier capable of accommodating PCBs or pallets up to 457 x 508mm (18″ x 20″).
Our patented Drop-Jet design fluxer offers quick and effective flushing of the pressurised flux chamber. This helps to keep maintenance levels to a minimum whilst enabling use of higher solid content fluxes as well as water-soluble fluxes.
Jade MKIV
With all the proven features of the Jade MKII, the Jade MKIV sets even higher standards of performance.
Designed to meet the needs of the small/medium batch manufacturer who requires high levels of production flexibility, the Jade MKIV offers uncompromised selective soldering quality at a very low cost.
The Jade MKIV is a handload system, incorporating a universally adjustable tooling carrier capable of accommodating PCB’s or pallets up to 508 x 610mm (20″ x 24″).
Our patented Drop-Jet design fluxer offers quick and effective flushing of the pressurised flux chamber. This helps to keep maintenance levels to a minimum whilst enabling the use of higher solid content fluxes as well as water-soluble fluxes.
Jade Handex
The Jade Handex is equipped with a revolutionary twin PCB rotary table transport system to allow simultaneous load/unload during product processing.
Jade Pro
Designed to meet the needs of the small batch manufacturer who requires high levels of production flexibility. The Jade Pro offers the ability to regularly change solder alloys without incurring expensive down time, whilst the solder bath cools down and heats up during a regular manual changeover process.
Jade Prodex
Designed to meet the needs of the small batch manufacturer who requires high levels of production flexibility. The Jade Prodex offers the ability to regularly change solder alloys without incurring expensive down time, whilst the solder bath cools down and heats up during a regular manual changeover process.
The Jade Prodex is an offline system, incorporating a quick load, twin PCB, universally adjustable, rotary table transport system to allow simultaneous load/unload during product processing.
Orissa Synchrodex
Designed as a modular system, the Synchrodex range of in-line equipment offers the ultimate in flexibility with the ability to upgrade to high-speed throughput when multiple modules are placed together.
Orissa Synchrodex Pro
Designed as a modular system, the Synchrodex Pro range of in-line equipment offers the ultimate in flexibility with the ability to upgrade to high-speed throughput when multiple modules are placed together.
Orissa Synchrodex Combo
This compact, modular, in-line system utilises the same design concept as the new generation Synchrodex soldering cell, and offers the user significantly reduced process time when compared to using a single soldering unit with on-board fluxing and pre-heat functions. It also provides a reduced footprint and cost savings over the conventional three module, fluxing, pre-heat and selective soldering work cell.
Orissa Fusion
Incorporating high-speed PCB transfer, the Orissa Fusion platform offers the ultimate in flexibility, coupled with reduced line length at a lower cost compared to current market offerings.
Quadron (PLC)
A versatile four station rotary bench top soldering machine, ideally suited for high or low volume production, the Quadron combines well proven pumped soldering techniques with advanced PLC-controlled movement technology.
Much of its versatility is owed to the specially designed programming system which allows the user access to all fluxing and soldering parameters at any time. In addition, rapid product changeover is achieved quickly and easily through simple tooling design and program identification.
The machine is at home both processing coils/sub-assemblies/transformers or small PCBs, in either small or large batches. Cycle times as low as 5 seconds can be achieved.
Optical Flux Plume System
Thermal Flux Sensing
Flux Flow Monitoring
Auto-Nozzle Conditioning
Dual Solder Pots
Heated Trollies
Nitrogen Purity Analyser
Pot Coding/Solder Reel Coding
Solder Level Detect/Top-up
Thermal Nozzle Calibration
Wave Height Correction
Pump RPM Meter
Board Warp
Barcodes & Board Traceability
