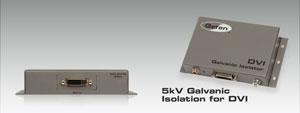

Gefen DVI Galvanic Isolator from ITM

Isolate both the source and display DVI connection in an imaging system to provide a safe environment and a reliable operation room.

The Gefen DVI Galvanic Isolator is ideal for mission-critical applications where galvanic isolation between the connected DVI (source and display) is required to eradicate the potential for ground loops and maintain decoupling between devices used in a High-Definition video system.

This is an important safety requirement in applications such as medical imaging systems, where particular components of the system (such as endoscopy cameras) come into direct contact with the patient and the medical professional.

Using the included DVI cable, connect the imaging source, such as a camera, to the DVI input of the DVI Galvanic Isolator. Connect the output of the DVI Galvanic Isolator to the next DVI component in the system such as a video scaler or a high resolution display. Connect the supplied 5V DC power supply to the locking connector on the DVI Galvanic Isolator and to an available electrical outlet. Power up the systems after all the cables and power connections are made.

Features:

•    Provides up to 5kV full galvanic isolation between DVI components
•    Supports resolutions up to 1920 x 1200 (WUXGA)
•    EDID pass-through
•    HPD pass-through
•    Isolation between the input and out DVI
•    Grounding Terminal
•    Locking power supply connector

Product Code: EXT-DVI-GI
