12 April 2013 | ITM Components Ltd

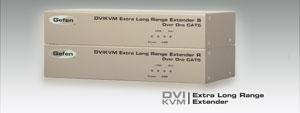

Extra Long Range KVM Extender for DVI and USB over one Cat-5 cable

The DVIKVM ELR extends any DVI and USB source to a monitor or other digital signage application over a distance up to 330 feet (100 meters) using one Cat 5 cable. It supports USB 2.0 data rates of up to 100 Mbps, in addition to providing backward-compatibility with USB 1.1.

The Receiver unit allows the connections of up to three USB devices, providing access to printers, scanners, digital signage, and automated control systems. This product uses Gefen ELR (Extra Long Range) technology, allowing DVI and USB signals to travel along the same CAT-5 cable, minimising cabling costs and making installation far easier.

By placing the DVIKVM ELR Sender unit next to the DVI source, you can use the included DVI cable to connect the computer or DVI source to the Sender unit. Use the supplied USB cable to connect the USB host device to the USB port on the Sender unit. Connect the Receiver unit to the monitor or digital signage display with a DVI cable. Connect the USB devices to the Receiver unit. Use one Cat-5 cable, up to 330 feet (100 meters), to connect the Sender to the Receiver unit. Connect the included locking power supplies to the Sender and Receiver units, and then connect both power cords to available electrical outlets.

Features:

•    Extends DVI and USB 2.0 up to 330 feet (100 meters) over one CAT-5 cable
•    Supports resolutions up to 1080p and 1920 x 1200
•    Supports 100 Mbps using USB 2.0
•    Backward-compatible with USB 1.1
•    EDID management for rapid integration of source and display devices
•    Field-upgradeable via mini-USB port

Product Code: EXT-DVIKVM-ELR
