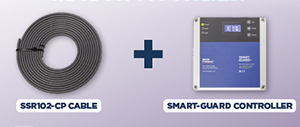

Smart-GUARD
Fire Sprinkler Pipework Frost Protection System
WE’VE GOT YOU COVERED!
BENEFITS OF USING OUR SYSTEM
- MONITORING - 24 hrs/365 days per year active monitoring of 2 independent
- heating circuits (duty/standby) + auto switch-over function via the watchdog
- system in the controller unit.
- CONTROL − status information of the frost protection system with BMS
- comms. functionality for common fault reporting.
- SOFT-START - innovative built-in feature eliminates inrush currents on Solco
- Pyroelec self-regulating heating cables, allows substantially increased circuit
- lengths over a standard controller.
- ECONOMY & VALUE - longer trace heating circuit lengths up to 245m (startup
- at +5°C, 20A Type C circuit breaker protection) for SSR102-CP.
- SAFETY − SSR102-CP self-regulating trace heating tape has a power output
- of 10W/m at +10°C and, unlike constant wattage tapes, will not overheat or
- burn out, even on plastic pipework or when overlapped at valves and flanges.
- SECURITY − the UP, DOWN, ENTER buttons on the front of the Smart-GUARD
- unit are locked in normal use to prevent inadvertent or malicious altering/
- tampering of the programmed settings.
- PLUG & PLAY − the Smart-GUARD unit is pre-set to maintain 5°C (freeze
- protection application) and can be used as AIR (ambient) sensing OR LINE
- (pipe) sensing.
