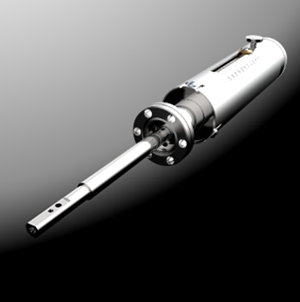

UHV Design − ALBD linear bellows drive

27 November 2024 | UHV Design Ltd

UHV Design − ALBD linear bellows drive

The Linear Bellows Drives (ALBDs) are engineered for ultra-high vacuum environments, offering reliable linear motion for low load applications.

Key Features:
  • Made with 316L high-quality bellows for durability.
  • Guaranteed for 10,000 cycles, ensuring longevity.
  • Available in CF16 and CF35 flange sizes.
  • Stroke length options range from 25mm to 150mm.
  • High-resolution movement with 10 micron manual and 1 micron motorised capabilities.
  • Provides 25N (5.6 lbf) of axial thrust.
  • Can be baked to 250°C with the motor removed
  • Easy to motorise retrospectively for enhanced control.
These features make ALBDs an excellent choice for precision applications in challenging environments.
