09 January 2025 | Bowdens

Link Box

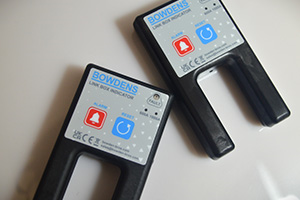

The Link Box Fault Passage Indicator (FPI) is deployed on the links of an LV Link box.

Once deployed the Link Box FPIs provide fault location when a fault occurs, by indicating on which leg of the Link Box the fault has occurred.

There is no need to remove links or fuses, simply drop the Link Box FPIs over the Links and they are ready to go.

Features:
Simple to fit
1000A or 600A selectable overcurrent fault detection
6 Hours reset time
10 Year Battery Life
Low battery indication
Sealed to IP67
High melting point enclosure
