Single Axis Y-Shift – LDM series

22 September 2025 | UHV Design Ltd

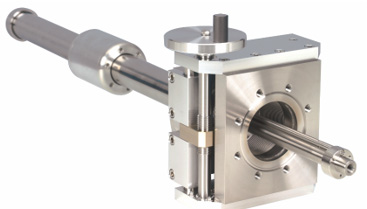

Single Axis Y-Shift – LDM series

Accurate, repeatable axial alignment on the Y-axis

Linear Displacement Mechanisms (Y-Shifts) can be used in conjunction with a sample transfer arm, e.g. a PowerProbe, to facilitate sample handoff. That’s because these robust, production-proven devices offer true UHV performance. They’re also available in two sizes, providing +/-7.5mm or +/-31mm Y-axis adjustment and have four different fixed/travelling flange combinations.

Key Specifications:
* The kinematic design provides smooth, precise motion in a parallel plane
* Four different fixed/travelling flange combinations
* Any-orientation mounting
* Bellows-sealed all-metal vacuum enclosure

For further details on the range please visit our website.
