Practical Solutions for Product Design, Cad Modelling & Manufacturing

We create solutions that follow the form, fit, function framework. • Form: the critical dimensions, shape, size, and visual aspects of your design • Fit: ensures that each part mates with, or interconnects to other part(s) • Function: achieves the purpose of the product and how it operates Where appropriate, the finished design will include all ribs & bosses, draft angles, fillet radii etc., so that it is ready for manufacture.

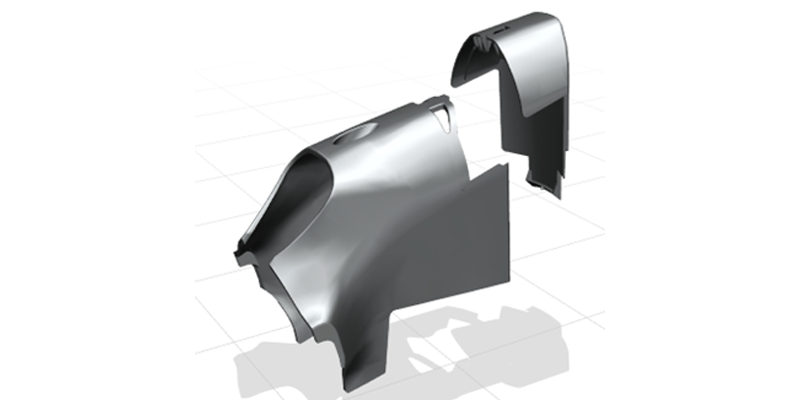

Using the latest history based parametric surface/solid CAD systems, we produce high quality 3D CAD models of your product parts along with associative assemblies and drawings. For more organic forms we use T-Spline technology to create complex surface and solid CAD models.

In addition, we have direct modelling tools to modify geometry regardless of how the CAD model was produced. Throughout the process, we can provide you with 3D PDF files, rendered images, prototype models etc to help you fully visualize and test your design before you give final approval.

If you would like a quotation for your next project or need further information, please contact us on +44 (0)1296 613122 or E-mail info@cadmansolutions.co.uk
