Company details for:

1st Machine Tool Accessories Ltd

Submit press release

(1)

Unit 1,
The Headlands,
Downton,
Salisbury,
Wiltshire,
SP5 3JJ,
United Kingdom

Quick Links:

Products

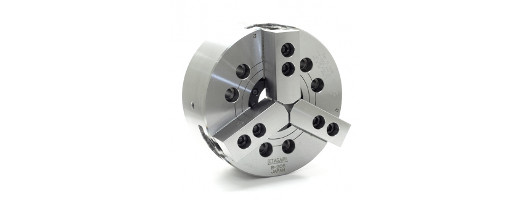

Kitagawa Power Chucks

For over half a century, Kitagawa products have inspired confidence in customers all over the world. The Kitagawa series of chucks is wide-ranging and so technologically advanced that we can offer solutions for all machining conditions, no matter how punishing. Manufacturing systems with exceptional quality controls ensure the production of highly precise and superior products, which guarantee trouble-free operation. Our unique innovations in workholding solutions, supported by highly specialised design teams and a proven history of excellence, shows our capacity to challenge the world of engineering.

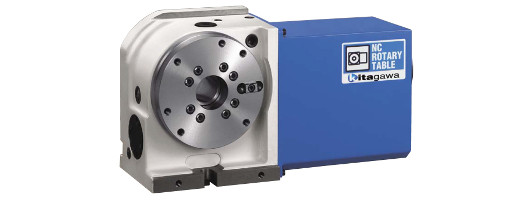

Kitagawa Rotary Tables

High clamping torque, high accuracy and high rigidity, Kitagawa NC Rotary Tables feature proven technology.

The use of rotary tables allows the benefits of one-hit machining to be exploited to the full. Through this process, most - if not all - metal cutting requirements are undertaken by a single machining centre, irrespective of component complexity. The advantages of such a technique are clear. They include: only one machine set-up; one fixturing set-up; cost and time savings associated with reduced parts handling; and the elimination of tolerance errors accumulated as workpieces are moved from machine to machine.

Kitagawa Collet Chucks

Kitagawa Collet Chucks are available in a variety of different styles:

Standard Cap Collet Chucks for Spring and Varibore collets. Available in short size to maximize your lathe work envelope.
Quick Change Collet Chucks for Spring and Varibore collets, for when a quick change design is neccessary.
Fixed Length Collet Chucks are high accuracy, and ideal for second operation.
Pull Back Collet Chucks for Pull Back collets offer a compact design for improved tool access.

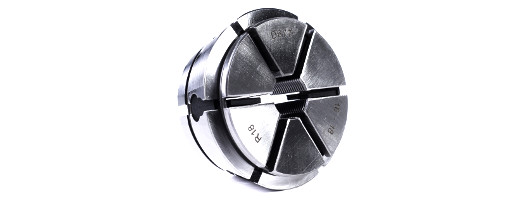

Collets

A large selection of collets in round, square and hexagon configurations, in a large variety of sizes to suit multiple different collet chucks.

Spring collets are available as D173E and D185E.

Varibore collets are available as D673, D677, D285, D120, D175, and D850.

Pullback collets are available as 5C and 16C.

Custom collets can be provided if the sizes listed are not applicable to your needs. If a custom collet is something you require, please get in touch and we will be able to help.

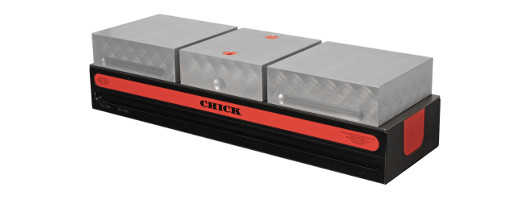

Chick Workholding System 5

The Chick Workholding System 5 family has evolved through the pursuit of innovation. The range consists of the Qwik-Lok fast-acting vice for vertical CNC machines, and the Multi-Lok for horizontal machine, which is essentially multiple Qwik-Loks placed on the side of a tooling column. Take advantage of the dual station clamping benefits which allow you to present multiple parts to the spindle at once, cutting machine downtime which in turn saves you time and money.

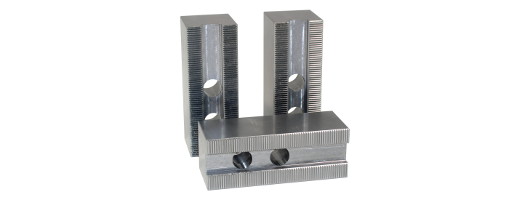

Chuck Jaws

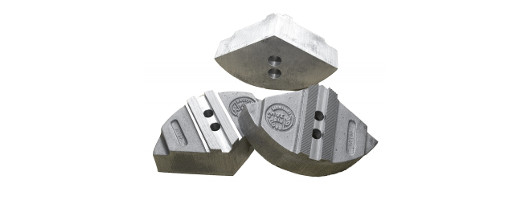

A huge range of chuck jaws are available to grip whatever you desire. Standard soft and hard jaws are complemented by pie jaws, gripper jaws, scroll chuck jaws, and more.

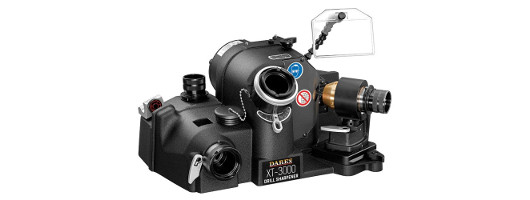

Darex Drill Sharpeners

From Auto Drill Sharpeners to End Mill Grinders, Darex offers the world’s bestselling state-of-the-art sharpening tools for your business. Extend the life of your cutting tools with our full range of commercial drill sharpening products and parts. For more than 35 years, Darex has been committed to making industrial sharpening quick and easy work every time. Turn to Darex Sharpeners, the cost-effective way to sharpen drills in-house and keep your production going.

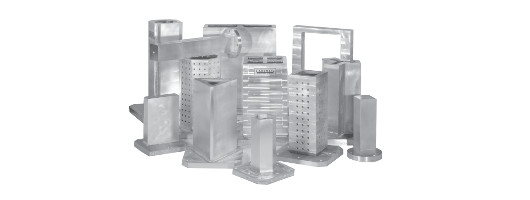

Abbott Tooling Columns

Abbott Workholding Tooling Columns, made of Tenzaloy naturally aged to T-6 condition, provide a practical, inexpensive and lightweight means of holding work accurately in a vertical or horizontal plane for CNC machining operations. They can be mounted directly on a machine table/pallet or used in conjunction with a rotary table. Standard Abbott tooling columns are available in multiple configurations built to any height, width and thickness dimensions required for your application. In addition, base sizes can be customized to fit any machine pallet. Many columns are also available in cast iron and/or steel. Abbott's pre-machined Universal Mount Tooling Columns are available as a stock option to our standard made to order fixtures. Abbott's Round Base Tooling Columns are designed for use with an indexer or 4th axis rotary table in vertical machining environments.

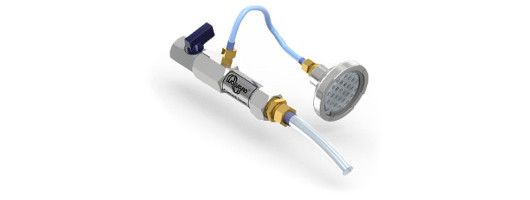

Wogaard Coolant Saver

The Wogaard Coolant Saver collects the cutting-fluid that is normally wasted through the machine tools automatic chip conveyor. The cutting fluid is reclaimed from the chip-container and returned to the machine tool's main tank for re-use.

Cut the costs of cutting fluid by up to 50%

A 'greener" business does not neccessarily mean an increase in operating costs. Environmental concerns should first and foremost be about re-using resources - making more with less. A lot of money can be saved by reducing water-consumption, re-using cutting fluid and recycling consumables.

On the road to ISO14001, you can reduce consumption of cutting fluid and water, reduced the amount of waste fluid collected and disposed of; and, end fluid leaks that create potential health and safety issues.

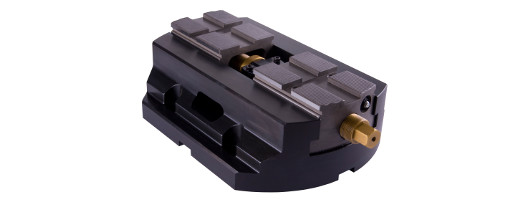

Best Centric Grippers

The Best range of vices combine high-quality, high-clamping forces of up to 100kN with competitive prices. The vices can clamp on only 3mm of material; they have a +/-0.01mm centring accuracy with a five-micron repeatability of centricity for manual and pneumatic vices and a one-micron repeatability for hydraulic types.

Kitagawa Hydraulic Cylinders

From standard to advanced type, a recognised line-up of high performance cylinders accomodates every Kitagawa chuck.
A range of hydraulic cylinders are available, from high speed hydraulic cylinders, to double actuating cylinders.

Clamping Receivers

Created for use on CNC machining centres, the V-Tech Zero Point system’s unique design guarantees the secure and precise clamping of workpieces, even under tough conditions. The pneumatic, quick change and ZERO POINT clamp features compact dimensions, extraordinarily high clamping force and is made from top quality materials. V-Tech clamping and location elements can be purchased individually to easily adapt workholding and fixtures for lightning fast changeovers. V-Tech receivers are also available as a . Each V-Tech receiver provides 24KN of clamping force and has positioning slots to allow for indexing by 90 degrees. The self-clamping mechanism means the force is still applied after the air has been disconnected.

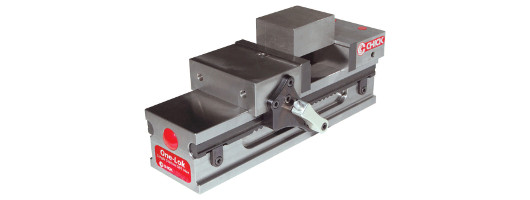

Chick OneLOK

Setup in record time with quick change BoltFast™ jaws and the QwikSlide ratchetting movable jaw
Precise jaw location and zero jaw lift mean high precision clamping and maxiumum workpiece rigidity
At nearly half the weight of 1950 style vises and with an ergonomic handgrip, the OneLOK can be handled with ease.
OneLOK’s sealed design eliminates “chip traps” for cleaner operation.

Full Length Expanding Mandrel

For gripping workpieces internally, Kitagawa's KEM Series of Expanding Mandrels is the best option. Able to grip internal diameters from 12.4mm to 82.7mm as standard, the KEM series' ID clamping offers full OD part access. With parallel expansion for optimum accuracy and grip force, the exanding sleeves are fully sealed for complete protection. The pull-back design draws workpiece securely against a part locator for 'dual-contact' rigidity and all mandrel models have a common flange configuration, enabling full interchangeability with all back bodies.Customized systems available - up to 635mm possible. 1/2-length, extended length and dual sleeves - for supporting a wide range of parts.

Chuck Jaw Finder

At 1st Machine Tool Accessories, we take the hassle out of choosing new chuck jaws. Simply contact us with the make and model of your chuck and we’ll find the perfect jaws for your needs. If for whatever reason you can’t give us that information, contact us anyway and we’ll be able to help you figure it out.

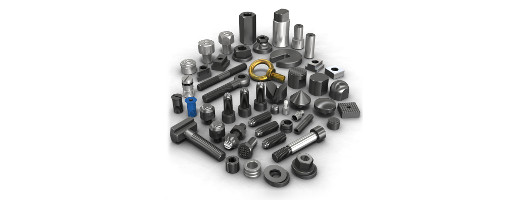

Fixturing Accessories

A range of useful accessories for fixture building and general workpiece clamping. Nuts, bolts, washers, eyes, gripper pads and many other small items, all manufactured and heat treated to industrial standards of quality for a long life and excellent reliability.

Fixturing Base Plates

The base plates in this section are available with holes, t-slots or with plain machinable faces. Within this section you will find flat plates and angled plates that are often found on vertical and horizontal machines, both CNC and conventional.

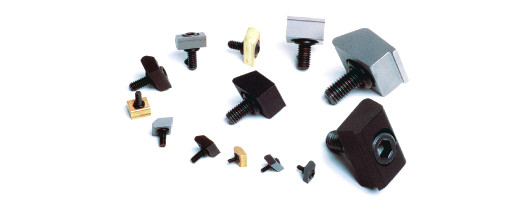

Fixturing Clamps

A variety of general clamping equiment for fixture building as well as direct-to-table machining operations. Top-clamps, edge clamps and various serrated, smooth and machinable items. Many items are suitable for CNC and conventional machines as well as for non-machining applications like fixtures for fabrication or assembly.

Fixturing Stops

We supply both fixed and adjustable positioning stops, ideal for mounting to a machine table or building into fixtures. Smooth, serrated, ball end fixture components and screws are available. Many can be partnered with items from the clamp section that have similar dimensions.

Reduction Bushes

Enable standard toolholders to be reduced in bore size for smaller boring bars and drills to be used.

SwiftKlamp

Dovetail workholding allows gripping on very small amounts of stock with large overhangs, making it great for workpiece access. Whilst dovetail workholding was originally developed for 5 axis machining, it has found uses in other applications too. We supply Klamp’s SWIFT hydraulic zero point system, based on the tried-and-tested HSK interface.

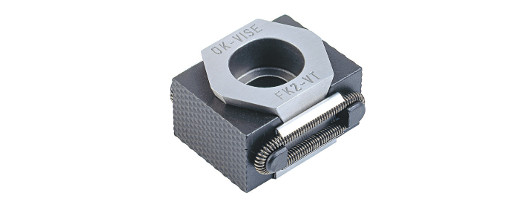

OK-VISE Machine Clamps

Founded in 1984 OK-Vise Oy is located in the lake district of central Finland in a Muurame Business Park, a centre of the megatronics industry in the northern European Union.
The OK-Vise low-profile wedge-operated clamp was originally designed by Mr Olli Kytölä to solve a specific workholding requirement in a flowmeter production process of the parent company Kytola Instruments Oy.

CNC Automation

Reduce the need for manual application with our range of CNC automation solutions. Built for complete ease of access for anyone looking to maximise efficiency and productivity, as you require zero robotics experience, can be set up in under 5 minutes − allowing for a complete plug-and-play- operation. Our range of automation solutions is perfect for 5 axis, lathe, and milling workholding stations.

About us

1st Machine Tool Accessories, also known as 1mta, are leading specialists in quality machine tools.

We provide a one stop shop for machine tool accessories that meet the needs of your machining requirements. We take away the hassle of searching for the best items as we only supply high quality products from the very best manufacturers.

Our Vast Product Range Includes:

Turning Tools

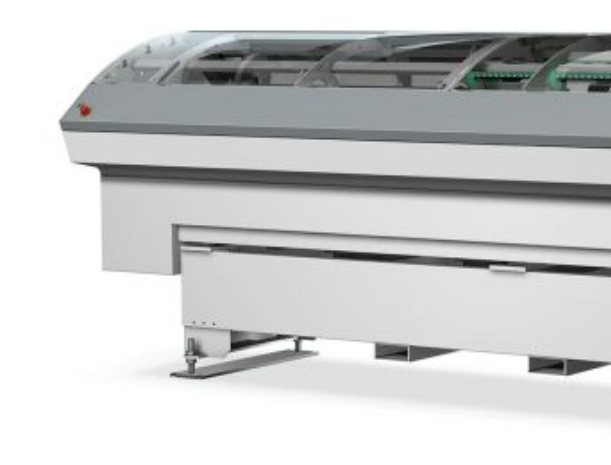

This category encompasses a range of tools essential for turning operations. From power chucks and chuck jaws to collet chucks and expanding mandrels, these tools facilitate precise and efficient turning processes. Barfeeders and chucking systems enhance productivity, while custom solutions cater to specific machining requirements, ensuring versatility and performance.

Milling Tools
Milling tools are vital for a variety of milling operations. Jaw finders aid in workpiece positioning, while 5-axis and horizontal milling machines offer flexibility and capability for complex machining tasks. Fixturing solutions ensure secure workpiece clamping, while ancillaries and automation options streamline milling operations, improving efficiency and throughout.

Workpiece Positioning Tools
Jaw finders play a crucial role in accurately positioning workpieces for machining operations. These tools ensure precise alignment, enhancing the efficiency and accuracy of machining processes.

Advanced Machining Systems
5-axis and horizontal machining systems represent cutting-edge technology in the machining industry. 5-axis machines offer unparalleled versatility, allowing for complex geometries and multi-sided machining in a single setup. Horizontal machining centers excel in high-volume production environments, delivering exceptional speed and efficiency.

Fixture Solutions & Automation
Fixturing solutions are essential for securely holding workpieces during machining operations. They ensure stability and repeatability, minimising errors and maximising productivity. Ancillaries and automation options further enhance efficiency by streamlining workflows and reducing manual intervention, leading to increased throughput and reduced cycle times.

All of which provide you with peace of mind and satisfaction guaranteed.

1st MTA understands the importance of reliable machine tools that can stand the test of time and also retain accuracy that is why all our items are backed by excellent warranty and service, provided by our dedicated team of technical engineers. In addition we recognise the importance of maintaining a safe and efficient working environment and as such we stock unrivalled heavy duty air cleaners available in the market today.

Here at 1st Machine Tools customers’ satisfaction is paramount to our success that is why our experience staff members are here to discuss your requirements and offer advice prior to you placing an order. Demonstrations of selected products are also available from external sales specialists on request.

Contact us now for more details.
