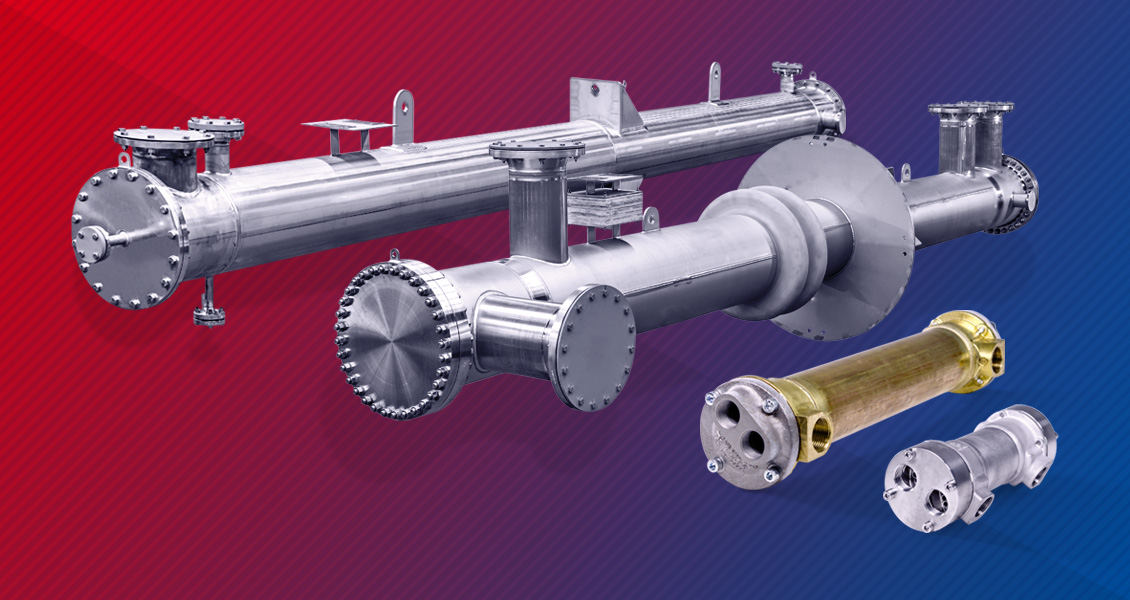

Shell-&-Tube Heat Exchangers
Quality & safety − be it standard products or customised solutions.
A heat exchanger is an unfired pressure system in which two media flow past one another separated by as thin a wall as possible, so that if there is a temperature difference, they will mutually exchange heat without mixing in the process.
As the diagram shows, one medium flows through the shell chamber and the second medium through the tube chamber. The flow through the shell chamber is controlled by baffles, allowing as much cross flow to the tubes as possible. The form and spacing of the baffles is adapted to the application.
Depending on the expediency, speed and pressure loss, the flow through the tube chamber is carried out by a single pass or multiple passes.
With the exception of radiation losses, the input heat quantity is the same as the output heat quantity.
However, an efficient heat exchange can only take place if there is a sufficient temperature difference. The greater the temperature difference, the smaller the required heat transfer surface. This makes a compact apparatus design possible.
The heat transfer performance of a heat exchanger is the product of the mean logarithmic temperature difference, the heat transfer surface and the heat transfer coefficient. The latter is largely determined by the flow characteristic of the media, i.e. by the design features.
On the other hand, the supplier of heat exchangers must have extensive application expertise with regard to the thermodynamic properties of special media at relevant pressures and temperatures. This also applies to the issues of fouling factors and material compatibility.
The calculation and design of FUNKE heat exchangers is carried out with worldwide leading programs (e.g. HTRI, Heat Transfer Research Institute, USA) and with in-house developed software, which is already used around the world.
A heat exchanger is an unfired pressure system in which two media flow past one another separated by as thin a wall as possible, so that if there is a temperature difference, they will mutually exchange heat without mixing in the process.
As the diagram shows, one medium flows through the shell chamber and the second medium through the tube chamber. The flow through the shell chamber is controlled by baffles, allowing as much cross flow to the tubes as possible. The form and spacing of the baffles is adapted to the application.
Depending on the expediency, speed and pressure loss, the flow through the tube chamber is carried out by a single pass or multiple passes.
With the exception of radiation losses, the input heat quantity is the same as the output heat quantity.
However, an efficient heat exchange can only take place if there is a sufficient temperature difference. The greater the temperature difference, the smaller the required heat transfer surface. This makes a compact apparatus design possible.
The heat transfer performance of a heat exchanger is the product of the mean logarithmic temperature difference, the heat transfer surface and the heat transfer coefficient. The latter is largely determined by the flow characteristic of the media, i.e. by the design features.
On the other hand, the supplier of heat exchangers must have extensive application expertise with regard to the thermodynamic properties of special media at relevant pressures and temperatures. This also applies to the issues of fouling factors and material compatibility.
The calculation and design of FUNKE heat exchangers is carried out with worldwide leading programs (e.g. HTRI, Heat Transfer Research Institute, USA) and with in-house developed software, which is already used around the world.

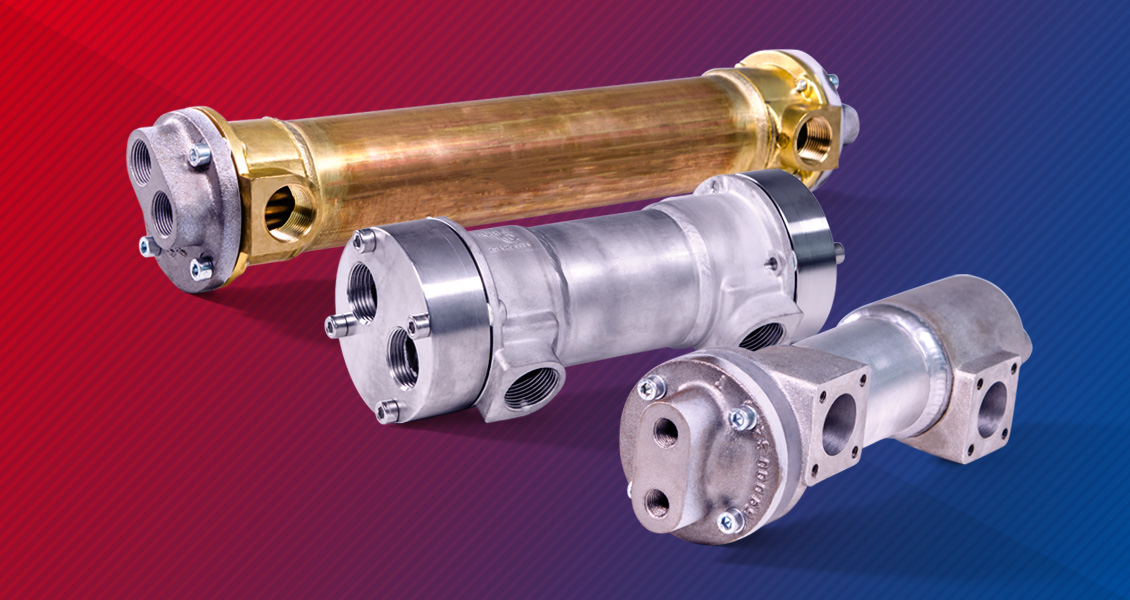

Standard Shell-&-Tube Heat Exchangers
Our universal shell and heat exchanger in a modular system construction is used mainly to cool liquids such as lubricating oil and hydraulic oil or water, as well as for heating by means of saturated steam. Water, water/glycol mixtures or seawater can be used as coolants.
More than 200 graduated building sizes in different materials form the basis for an optimal and detailed type selection.
Standardisation means we can ensure short delivery times.
More than 200 graduated building sizes in different materials form the basis for an optimal and detailed type selection.
Standardisation means we can ensure short delivery times.
BCF, CCF, SSCF - Shell-&-Tube Heat Exchangers
Design features
Tube bundle fixed (F) or
removable (P versions)
Material variants
Brass (Types BCF / BCP)
Carbon Steel (Types CCF / CCP)
Stainless Steel (Types SSCF / SSCP)
Exchange surfaces from 0.11 m² to 11.45 m²
Internal tube measurement:
6.35 x 0.5 mm and 9.5 x 0.8 mm
Variable baffle spacing
Tube side 1-, 2- or 4-pass
Horizontal or upright version with angle or clamped feet or stand
Boundary conditions
Design pressure:
Shell side: 16 bar
Tube side: 10 bar
Design temperatures:
BCF/BCP/CCF/CCP: -10 / 150 °C
SSCF/SSCP: -10 / 230 °C
Approval type pursuant to
PED 2014/68/EU module B
CE marking
Tube bundle fixed (F) or
removable (P versions)
Material variants
Brass (Types BCF / BCP)
Carbon Steel (Types CCF / CCP)
Stainless Steel (Types SSCF / SSCP)
Exchange surfaces from 0.11 m² to 11.45 m²
Internal tube measurement:
6.35 x 0.5 mm and 9.5 x 0.8 mm
Variable baffle spacing
Tube side 1-, 2- or 4-pass
Horizontal or upright version with angle or clamped feet or stand
Boundary conditions
Design pressure:
Shell side: 16 bar
Tube side: 10 bar
Design temperatures:
BCF/BCP/CCF/CCP: -10 / 150 °C
SSCF/SSCP: -10 / 230 °C
Approval type pursuant to
PED 2014/68/EU module B
CE marking
TDW - Shell-&-Tube Heat Exchangers
Design features
Removable U-tube bundle with ribbed tubes
Spiral flow baffle principle for high specific heat transfer performance
Materials:
Internal tubes:
copper, tin-plated
alternative CuNi10Fe
Tubesheets:
plastic; reinforced aluminium
Shell: cast aluminium
Chamber: cast aluminium
Helical screws: cast aluminium
Exchange surfaces from 0.05 m² to 1.5 m²
Internal tube measurement: 14 x 1 mm
acc. to DIN EN 12452
Tube side 4-pass
Also available as
tank installation
version TDW T
Boundary conditions
Design pressure:
Shell side: 16 bar
Tube side: 8 bar
Design temperatures: 100°C
Approval type pursuant to
PED 2014/68/EU module B
CE marking
Removable U-tube bundle with ribbed tubes
Spiral flow baffle principle for high specific heat transfer performance
Materials:
Internal tubes:
copper, tin-plated
alternative CuNi10Fe
Tubesheets:
plastic; reinforced aluminium
Shell: cast aluminium
Chamber: cast aluminium
Helical screws: cast aluminium
Exchange surfaces from 0.05 m² to 1.5 m²
Internal tube measurement: 14 x 1 mm
acc. to DIN EN 12452
Tube side 4-pass
Also available as
tank installation
version TDW T
Boundary conditions
Design pressure:
Shell side: 16 bar
Tube side: 8 bar
Design temperatures: 100°C
Approval type pursuant to
PED 2014/68/EU module B
CE marking
UNIVEX - Shell-&-Tube Heat Exchangers
Design features
Removable tube bundle
Materials:
Inner tubes: CuNi10Fe
Water chamber: gun metal, seawater resistant
Exchange surfaces from 0.15 m² to 5.79 m²
Internal tube measurement: 6x 0.5 mm
Tube side 4-way
Boundary conditions
Design pressure:
Shell side: 16 bar
Tube side: 10 bar
Design temperatures: -10/120°C
Without approval type
and CE marking
Inspection pursuant to PED 2014/68/EU
Removable tube bundle
Materials:
Inner tubes: CuNi10Fe
Water chamber: gun metal, seawater resistant
Exchange surfaces from 0.15 m² to 5.79 m²
Internal tube measurement: 6x 0.5 mm
Tube side 4-way
Boundary conditions
Design pressure:
Shell side: 16 bar
Tube side: 10 bar
Design temperatures: -10/120°C
Without approval type
and CE marking
Inspection pursuant to PED 2014/68/EU

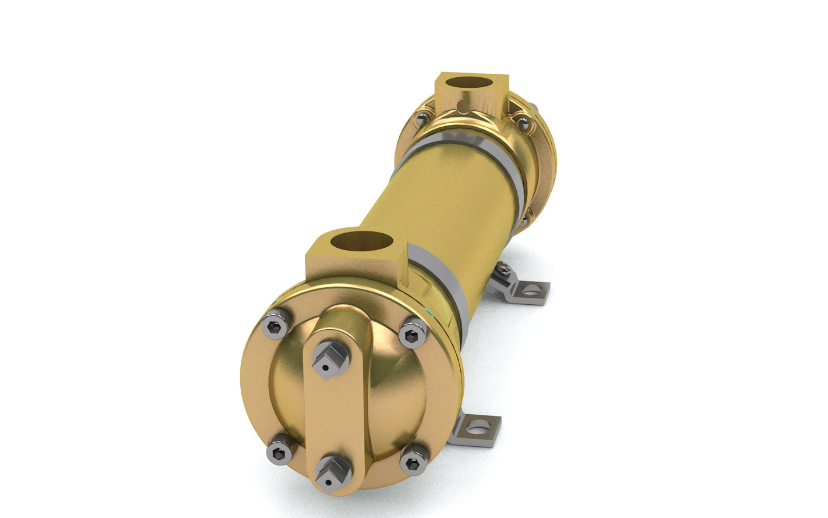

Customised Shell-&-Tube Heat Exchangers
Our customer-oriented, individual solutions in the area of shell-and-tube heat exchangers find their main application in project business.
The focus throughout is always on the customer’s requirements for our products.
We look at the operating data, construction regulations and specifications in the course of project engineering and use this information to provide the optimal, thermodynamic apparatus.
We attach great importance to a technically and economically optimised solution, one that fully meets the requirements of the customer as well as our requirements for maximum plant safety and efficiency.
After all, at up to 600 bar operating pressure, every single welding seam counts.
In addition, strict quality controls from incoming goods to shipping ensure that the manufactured product meets your requirements with regard to function, quality and documentation.
The focus throughout is always on the customer’s requirements for our products.
We look at the operating data, construction regulations and specifications in the course of project engineering and use this information to provide the optimal, thermodynamic apparatus.
We attach great importance to a technically and economically optimised solution, one that fully meets the requirements of the customer as well as our requirements for maximum plant safety and efficiency.
After all, at up to 600 bar operating pressure, every single welding seam counts.
In addition, strict quality controls from incoming goods to shipping ensure that the manufactured product meets your requirements with regard to function, quality and documentation.
CP (TEMA type W) - Customised Solutions
Design features
Solid design, with removable bare or finned tube bundle, easy to inspect
Sealing of the floating tube sheet by means of 2 gaskets and lantern ring with signal bore holes for leak detection
Applications
Globally used for liquid-to-liquid exchanger applications and for gas cooling. Good price performance ratio. Typical applications: Oil cooling in hydraulic systems, large motors and shipbuilding, for example as intercooler or after cooler for compressors or as condenser etc.
Solid design, with removable bare or finned tube bundle, easy to inspect
Sealing of the floating tube sheet by means of 2 gaskets and lantern ring with signal bore holes for leak detection
Applications
Globally used for liquid-to-liquid exchanger applications and for gas cooling. Good price performance ratio. Typical applications: Oil cooling in hydraulic systems, large motors and shipbuilding, for example as intercooler or after cooler for compressors or as condenser etc.
A-100 (TEMA type W) - Customised Solutions
Design features
Removable bare tube bundle - 1-pass design - with floating tubesheet
Large range of standard sizes available
Application
Cooling and drying of process gases or compressed air. Used as intercooler or aftercooler for compressors or, in case of gas tubeside, as pipeline cooler in pipe line systems.
Removable bare tube bundle - 1-pass design - with floating tubesheet
Large range of standard sizes available
Application
Cooling and drying of process gases or compressed air. Used as intercooler or aftercooler for compressors or, in case of gas tubeside, as pipeline cooler in pipe line systems.
C-100 (TEMA type P) - Customised Solutions
Design features
The removable tube bundle with ring gasket allows for a larger length difference due to differential thermal expansion between the shell and internal tubes
The tube bundle can be removed without removing the cover of the movable sheet
Available with 1, 2, 4 and 6 passes
Application
A universal heat exchanger suitable for the thermal treatment of diverse media, air or gases. Used as inter- or aftercoolers, etc.
The removable tube bundle with ring gasket allows for a larger length difference due to differential thermal expansion between the shell and internal tubes
The tube bundle can be removed without removing the cover of the movable sheet
Available with 1, 2, 4 and 6 passes
Application
A universal heat exchanger suitable for the thermal treatment of diverse media, air or gases. Used as inter- or aftercoolers, etc.
C-200 (TEMA type M) - Customised Solutions
Design features
Non-removable tube bundle with or without compensator in shell
Provides very good heat transfer performance through maximum exchange surface in shell
Available with 1, 2, 4 and 6 passes
Application
To cool and heat various media and for applications in diverse processes.
Non-removable tube bundle with or without compensator in shell
Provides very good heat transfer performance through maximum exchange surface in shell
Available with 1, 2, 4 and 6 passes
Application
To cool and heat various media and for applications in diverse processes.
C-300 (TEMA type U) - Customised Solutions
Design features
The removable U-tube bundle with ring gasket allows for a larger length difference due to differential thermal expansion between the shell and internal tubes
Available with 2, 4 and 6 passes
Application
Particularly suitable in high pressure areas to cool and heat various media. Used as steam generator and condenser as well as in processes with high temperature differentials, etc.
The removable U-tube bundle with ring gasket allows for a larger length difference due to differential thermal expansion between the shell and internal tubes
Available with 2, 4 and 6 passes
Application
Particularly suitable in high pressure areas to cool and heat various media. Used as steam generator and condenser as well as in processes with high temperature differentials, etc.
C-400 (TEMA type T) - Customised Solutions
Design features
Removable tube bundle with a movable tubesheet fixed to the guide chamber
Tube bundle can be removed without removing the guide chamber
This version comes with a large inlet port at the bundle
Available with 1, 2, 4 and 6 passes
Application
For process coolers, inter- and aftercoolers for gas and air, vapour condenser. For applications mainly in the chemical industry.
Removable tube bundle with a movable tubesheet fixed to the guide chamber
Tube bundle can be removed without removing the guide chamber
This version comes with a large inlet port at the bundle
Available with 1, 2, 4 and 6 passes
Application
For process coolers, inter- and aftercoolers for gas and air, vapour condenser. For applications mainly in the chemical industry.
C-500 (TEMA type S) - - Customised Solutions
Design features
Removable tube bundle guide chamber fixed into the clamp ring
Available with 2, 4 and 6 passes
Designed for high differential thermal expansion between the shell and internal tubes
Largest exchange surface with regard to comparable shell diameter of other types
Application
Satisfies the highest demands (e.g. high temperature differences) in the chemical industry and refineries. In addition to thermal treatment of liquid media, the C-500 can also be used to cool gases or air and as a steam condenser.
Removable tube bundle guide chamber fixed into the clamp ring
Available with 2, 4 and 6 passes
Designed for high differential thermal expansion between the shell and internal tubes
Largest exchange surface with regard to comparable shell diameter of other types
Application
Satisfies the highest demands (e.g. high temperature differences) in the chemical industry and refineries. In addition to thermal treatment of liquid media, the C-500 can also be used to cool gases or air and as a steam condenser.
WRA (TEMA type M) - Customised Solutions
Design features
Designed as exhaust gas heat exchanger with thermal shield at gas inlet of fixed tube bundle
Inlet temperatures of up to 600° C
Available with 1- and 2-way passes
Easy to clean the flue gas side through the inspection cover
Application
Heat recovery from the exhaust gas of combustion engines such as gas, diesel or heavy oil engines.
Designed as exhaust gas heat exchanger with thermal shield at gas inlet of fixed tube bundle
Inlet temperatures of up to 600° C
Available with 1- and 2-way passes
Easy to clean the flue gas side through the inspection cover
Application
Heat recovery from the exhaust gas of combustion engines such as gas, diesel or heavy oil engines.
Safety Heat Exchangers
When safety is your number one priority.
The range of safety shell-and-tube heat exchangers is based on the ‘three chamber devices’ principle, which was developed and patented by the company’s founder Karl-Heinz Funke.

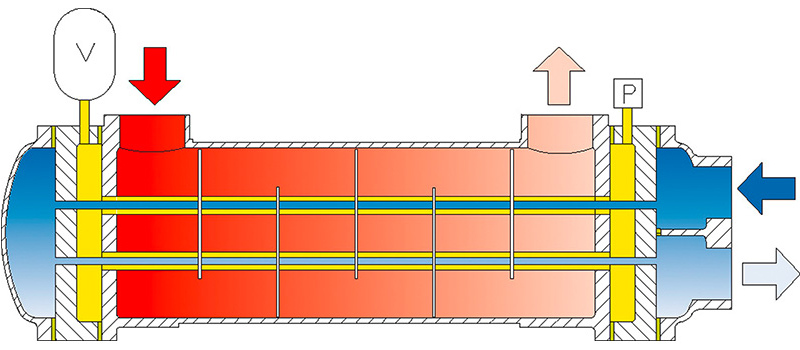

Operating principle of a safety heat exchanger.
Here with double tubes, double sheets and leak sealing liquid.
Design Features
Media separated by double tube bundles, media cannot mix
Special sealing liquid for immediate leak indication
Leakage system works independently of the installation position
Leakage detection is possible through process control
Suitable for a wide range of liquid media
Application
Safety heat exchangers are used wherever the highest requirements for product purity in process engineering (e.g., food/pharmaceutical industry) are required, where there is an environmental risk of contaminating cooling or process water, or because mixing of the media can damage the machine or system.
The range of safety shell-and-tube heat exchangers is based on the ‘three chamber devices’ principle, which was developed and patented by the company’s founder Karl-Heinz Funke.
Operating principle of a safety heat exchanger.
Here with double tubes, double sheets and leak sealing liquid.
Design Features
Media separated by double tube bundles, media cannot mix
Special sealing liquid for immediate leak indication
Leakage system works independently of the installation position
Leakage detection is possible through process control
Suitable for a wide range of liquid media
Application
Safety heat exchangers are used wherever the highest requirements for product purity in process engineering (e.g., food/pharmaceutical industry) are required, where there is an environmental risk of contaminating cooling or process water, or because mixing of the media can damage the machine or system.
Plate Heat Exchangers
Standard model series and customer-oriented solutions

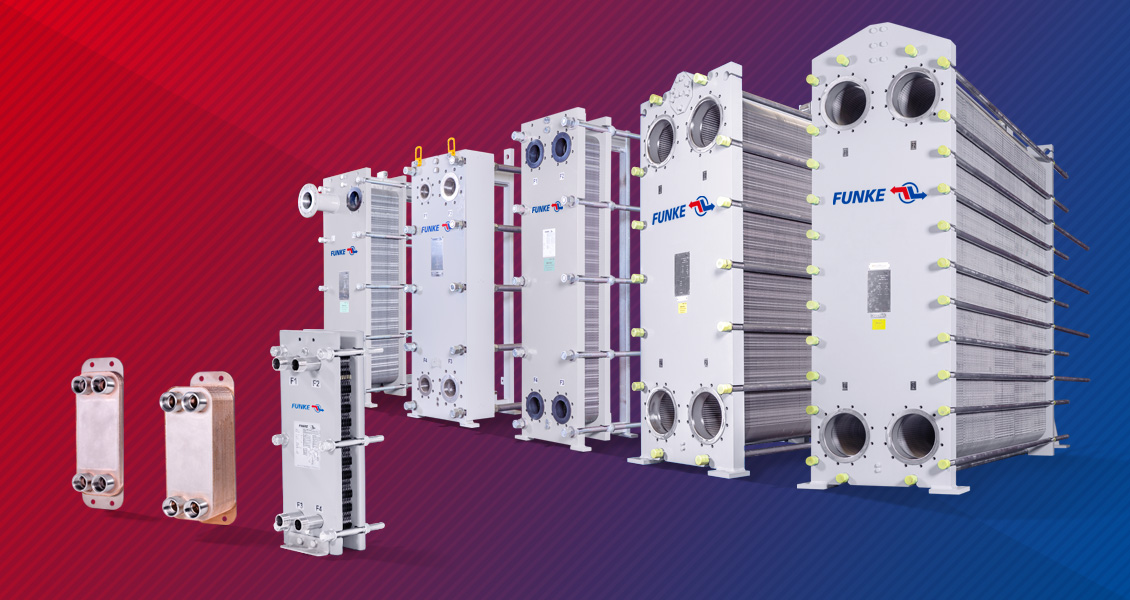

In the area of plate heat exchangers, FUNKE offers a sophisticated range of products for almost any requirement in mechanical and plant engineering. FUNKE’s unique ‘Off-Set’ system with asymmetrical flow gaps creates highly efficient and cost-effective devices, whose performance per area (depending on the design) is up to 17% higher than conventional plate heat exchangers.
In the area of plate heat exchangers, FUNKE offers a sophisticated range of products for almost any requirement in mechanical and plant engineering. FUNKE’s unique ‘Off-Set’ system with asymmetrical flow gaps creates highly efficient and cost-effective devices, whose performance per area (depending on the design) is up to 17% higher than conventional plate heat exchangers.
Gasketed Plate Heat Exchangers
Design & Function

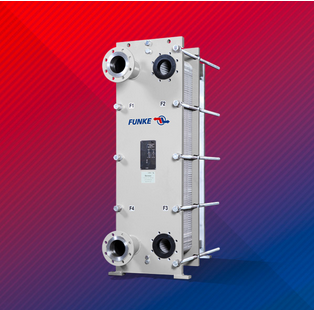

Gasketed plate heat exchangers consist of a set of adjoining embossed plates with apertures.
The plates are assembled at a 180° angle to each other, resulting in a flow gap. The gasket, which is mechanically secured or glued onto every plate, ensures that the flow gaps are securely sealed to the outside and from the second medium involved in the heat exchange.
The plate assembly is mounted in a frame and compressed with tightening bolts between the fixed plate and the movable plate.
The gaskets of a plate heat exchanger experience a normal fatigue process over the course of their service life. Depending on the conditions of use, the plate assembly can be re-tightened several times until the lower limit is reached.
The connections of the media involved in the heat exchange are on the fixed plate, but can also be on the moveable plate for multiple-pass flows. (see “Flow diagram”).
Our product range includes single and multiple-pass plate heat exchangers with heat exchange surfaces of up to 2,000 m².
Gasketed plate heat exchangers consist of a set of adjoining embossed plates with apertures.
The plates are assembled at a 180° angle to each other, resulting in a flow gap. The gasket, which is mechanically secured or glued onto every plate, ensures that the flow gaps are securely sealed to the outside and from the second medium involved in the heat exchange.
The plate assembly is mounted in a frame and compressed with tightening bolts between the fixed plate and the movable plate.
The gaskets of a plate heat exchanger experience a normal fatigue process over the course of their service life. Depending on the conditions of use, the plate assembly can be re-tightened several times until the lower limit is reached.
The connections of the media involved in the heat exchange are on the fixed plate, but can also be on the moveable plate for multiple-pass flows. (see “Flow diagram”).
Our product range includes single and multiple-pass plate heat exchangers with heat exchange surfaces of up to 2,000 m².
New Generation of Heat Exchangers Plates

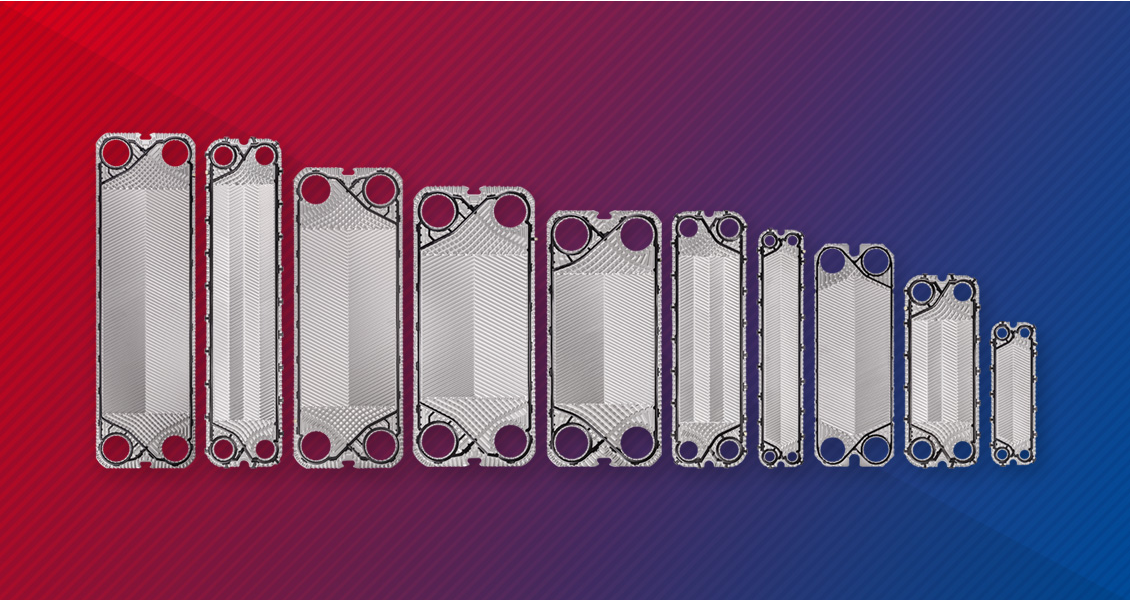

The new series FP2000 and FP4000 with new thermally and hydraulically optimized heat transfer plate. These offer a significant increase in efficiency. The efficiency in terms of heat transfer and pressure loss is improved by up to 20 %.
With a new type of embossing optimised by CFD and innovative features such as the bypass stop system, a new series has been developed here that is significantly more efficient than the previous units in this series. This makes the heat exchangers cheaper and more compact.
With a new type of embossing optimised by CFD and innovative features such as the bypass stop system, a new series has been developed here that is significantly more efficient than the previous units in this series. This makes the heat exchangers cheaper and more compact.
Brazed Plate Heat Exchangers
The TPL, GPL and GPLK series achieve a high heat transfer performance with low pressure losses. The thermodynamically optimised corrugation of the embossed stainless steel plates, as well as the special, FUNKE insert turbulence plates (TPL), produce a high turbulent flow even at low volume flow rates. This allows for an extremely efficient use of the available heat exchange area, leading to a highly efficient heat transfer. The turbulent flows also result in a powerful self-cleaning effect, which greatly reduces long downtimes and maintenance costs. FUNKE brazed plate heat exchangers can be operated with high pressures and temperatures and stand out for their compact design.
TPL - Brazed Plate Heat Exchangers

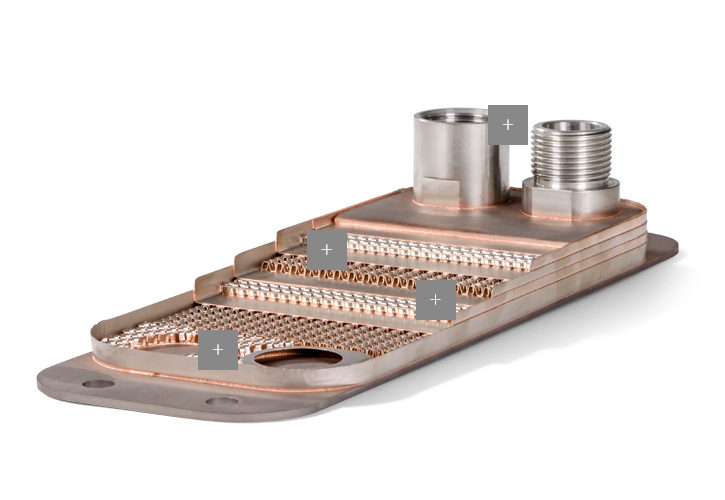

Originally developed specifically for applications such as cooling hydraulic and motor oil, TPL brazed plate heat exchangers are also ideally suited and deployable for other application processes in mechanical and plant engineering. TPL satisfy the high demands in this area with regard to reliability and thermodynamic efficiency − and can be designed with the utmost flexibility!
The exceptionally high heat transfer performance is achieved by means of diagonal media flow as well as special turbulence plates inserted into the flow gaps, a technology developed and produced exclusively by FUNKE. The turbulence plates are available in different versions, making the technical design very flexible. Each individual flow channel can be adapted to the specific application thanks to the modular design of the TPL. Another advantage of the TPL is its high resilience, as the surface soldering makes it possible to achieve a significantly higher level of safety under stress compared to the spot soldering used in conventional brazed plate heat exchangers. Stress conditions in the heat exchanger caused by differences in pressure or temperature, for example, can be absorbed significantly better thanks to the surface soldering of the TPL. TPL can be used universally with different media. Small sizes with low space requirements are possible for media with higher viscosity thanks to the high heat transfer of the powerful TPL. The optional extended end plates also facilitate the installation of the already very compact units.
Technical data
Heat exchange surface per plate:0.035 - 0.286 m²
Max. operating pressure:36 bar
Max. operating temperature:+200°C
Material
WA plates: 1.4404 (AISI 316 L)
Solder: Copper 99.9% (TPL)
Solder: Stainless steel 100% (TPLB)
The exceptionally high heat transfer performance is achieved by means of diagonal media flow as well as special turbulence plates inserted into the flow gaps, a technology developed and produced exclusively by FUNKE. The turbulence plates are available in different versions, making the technical design very flexible. Each individual flow channel can be adapted to the specific application thanks to the modular design of the TPL. Another advantage of the TPL is its high resilience, as the surface soldering makes it possible to achieve a significantly higher level of safety under stress compared to the spot soldering used in conventional brazed plate heat exchangers. Stress conditions in the heat exchanger caused by differences in pressure or temperature, for example, can be absorbed significantly better thanks to the surface soldering of the TPL. TPL can be used universally with different media. Small sizes with low space requirements are possible for media with higher viscosity thanks to the high heat transfer of the powerful TPL. The optional extended end plates also facilitate the installation of the already very compact units.
Technical data
Heat exchange surface per plate:0.035 - 0.286 m²
Max. operating pressure:36 bar
Max. operating temperature:+200°C
Material
WA plates: 1.4404 (AISI 316 L)
Solder: Copper 99.9% (TPL)
Solder: Stainless steel 100% (TPLB)
GPLK - Heat Transfer Plates with V Corrugation)
Applications
Mainly used in heating, air conditioning, motor cooling and heat recovery.
Can be used universally with different media.
Technical data
Max. operating pressure:30 bar
Max. operating temperature:+200°C
Material
WA Plates: 1.4401 / AISI 316
Solder: Copper
Nickel (NPLK)
Mainly used in heating, air conditioning, motor cooling and heat recovery.
Can be used universally with different media.
Technical data
Max. operating pressure:30 bar
Max. operating temperature:+200°C
Material
WA Plates: 1.4401 / AISI 316
Solder: Copper
Nickel (NPLK)
Oil-/Air-Cooling Units
Okan

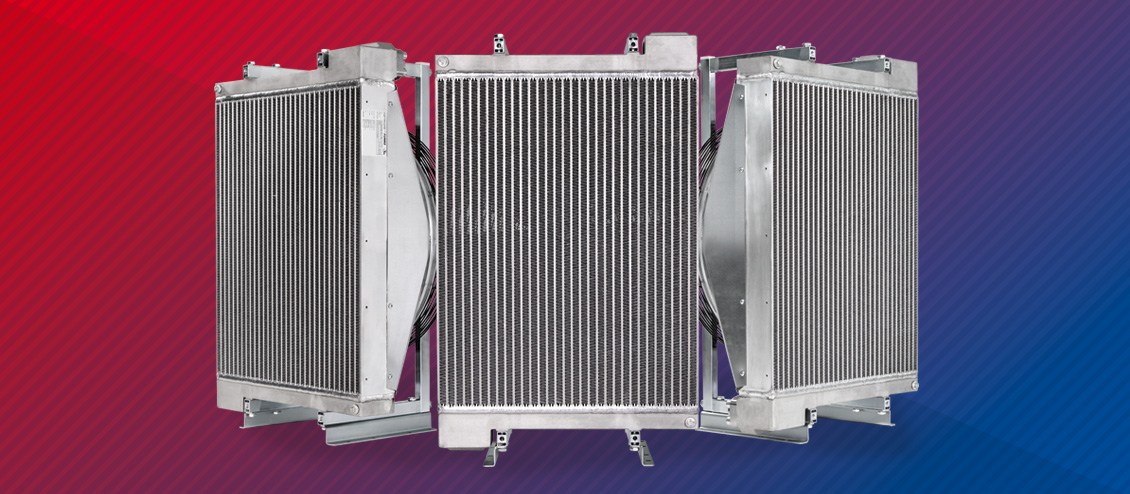

Funke has a comprehensive standard range in the oil/air cooler sector, which covers numerous mobile and stationary applications.
This includes, in the first instance, the Okan 2.79 cooler series, which can be adapted to suit a wide range of customer requirements due to its modular design. For example, special designs are available for marine and offshore applications, or for installation in areas where there is a high risk of explosion.

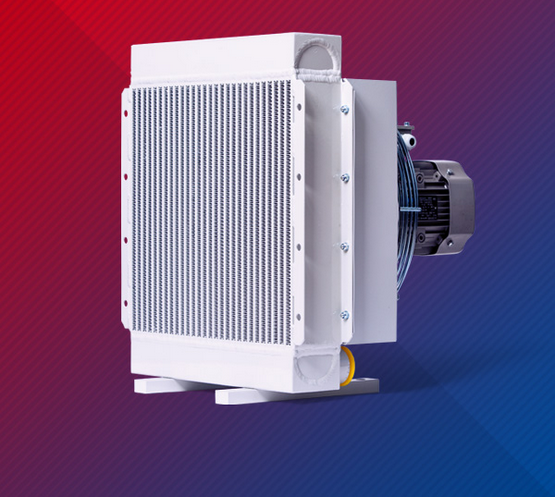

The Okan E series is also available. The Okan E series oil/air coolers have been specially developed for standard applications in the industrial hydraulics sector which do not impose any special requirements on the design of the oil/air cooler.
In addition to extensive documentation, 3D models of all oil/air coolers are included as step files.
Design and function
The basic element is an aluminium cooler in bar and plate construction, as shown below. The oil tubes are fitted with turbulence elements to guarantee optimum heat transfer.
The fan mounted behind the cooler operates as suction in standard mode. The slat shape, fan blades and motor power are aerodynamically and thermodynamically coordinated to achieve a high degree of heat dissipation.
Funke has a comprehensive standard range in the oil/air cooler sector, which covers numerous mobile and stationary applications.
This includes, in the first instance, the Okan 2.79 cooler series, which can be adapted to suit a wide range of customer requirements due to its modular design. For example, special designs are available for marine and offshore applications, or for installation in areas where there is a high risk of explosion.
The Okan E series is also available. The Okan E series oil/air coolers have been specially developed for standard applications in the industrial hydraulics sector which do not impose any special requirements on the design of the oil/air cooler.
In addition to extensive documentation, 3D models of all oil/air coolers are included as step files.
Design and function
The basic element is an aluminium cooler in bar and plate construction, as shown below. The oil tubes are fitted with turbulence elements to guarantee optimum heat transfer.
The fan mounted behind the cooler operates as suction in standard mode. The slat shape, fan blades and motor power are aerodynamically and thermodynamically coordinated to achieve a high degree of heat dissipation.

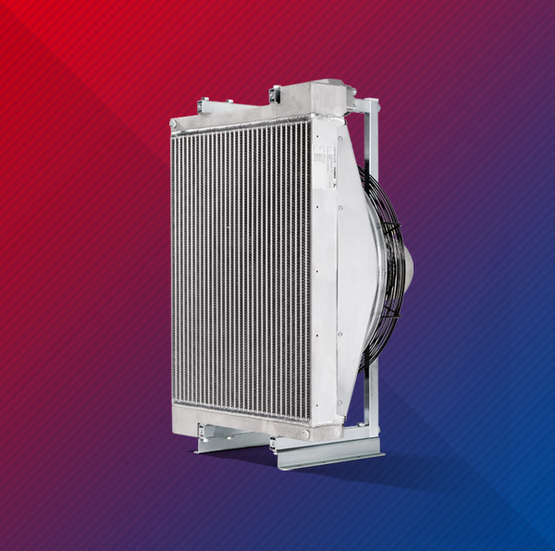

OKAN II - Längerer & Reich System
Applications
Cooling of oils, hydraulic fluids and emulsions using
ambient air, particularly in the field of mechanical and
plant engineering, construction machinery and special
vehicle manufacturing
Used as an additional cooler at peak load times (summer) − wherever water is not available or piping is too expensive
Advantages
effectively low costs per kW heat dissipation
sturdy, compact design with high standards of quality
wide range of accessories and combinations available
customer-specific designs possible
low costs for installation
variable installation position
maximum available over a long service life
virtually maintenance-free
Okan 2.79
Operating data
13 sizes (see tables below)
max. cooling capacity: approx. 6.2 kW/K
max. operating temperature: for oil 100°C for emulsion 90°C
max. operating pressure, static: 16 bar (size 15 to 10 bar)
ambient temperatures: -20°C to +40°C
cooling surfaces: 0.05 to 1.44m²
fan drives: three-phase motor, direct current motor, hydro motor
available up to size 10 in 1-way and 3-way versions
Cooling of oils, hydraulic fluids and emulsions using
ambient air, particularly in the field of mechanical and
plant engineering, construction machinery and special
vehicle manufacturing
Used as an additional cooler at peak load times (summer) − wherever water is not available or piping is too expensive
Advantages
effectively low costs per kW heat dissipation
sturdy, compact design with high standards of quality
wide range of accessories and combinations available
customer-specific designs possible
low costs for installation
variable installation position
maximum available over a long service life
virtually maintenance-free
Okan 2.79
Operating data
13 sizes (see tables below)
max. cooling capacity: approx. 6.2 kW/K
max. operating temperature: for oil 100°C for emulsion 90°C
max. operating pressure, static: 16 bar (size 15 to 10 bar)
ambient temperatures: -20°C to +40°C
cooling surfaces: 0.05 to 1.44m²
fan drives: three-phase motor, direct current motor, hydro motor
available up to size 10 in 1-way and 3-way versions
OKAN E
Applications
Cooling of oils, hydraulic fluids and emulsions using
ambient air, particularly in the field of mechanical and
plant engineering, construction machinery and special
vehicle manufacturing
Used as an additional cooler at peak load times (summer) − wherever water is not available or piping is too expensive
Advantages
effectively low costs per kW heat dissipation
sturdy, compact design with high standards of quality
wide range of accessories and combinations available
customer-specific designs possible
low costs for installation
variable installation position
maximum available over a long service life
virtually maintenance-free
Okan E
Operating data
7 sizes (see table below)
max. cooling capacity: approx. 1.9 kW/K
max. operating temperature: for oil 100°C for emulsion 90°C
max. operating pressure, static: 26 bar
ambient temperatures: -20°C to +40°C
cooling surfaces: 0.08 to 0.5m²
fan drives: three-phase motor
additional connections for monitoring temperature and pressure
Cooling of oils, hydraulic fluids and emulsions using
ambient air, particularly in the field of mechanical and
plant engineering, construction machinery and special
vehicle manufacturing
Used as an additional cooler at peak load times (summer) − wherever water is not available or piping is too expensive
Advantages
effectively low costs per kW heat dissipation
sturdy, compact design with high standards of quality
wide range of accessories and combinations available
customer-specific designs possible
low costs for installation
variable installation position
maximum available over a long service life
virtually maintenance-free
Okan E
Operating data
7 sizes (see table below)
max. cooling capacity: approx. 1.9 kW/K
max. operating temperature: for oil 100°C for emulsion 90°C
max. operating pressure, static: 26 bar
ambient temperatures: -20°C to +40°C
cooling surfaces: 0.08 to 0.5m²
fan drives: three-phase motor
additional connections for monitoring temperature and pressure
Electrical Oil Pre-Heaters
Technical data
Heat capacity: 3 - 100 kW
Max. operating pressure: (< 6kW / > 9kW) 25 / 16 bar
Max. final temperature: 80°C
High temperature unit: max. final temperature: 200°C
Design/material
Heating element with bent heating rods (like a U-tube bundle)
Housing: steel version
Standard versions outfitted with thermostat
Applications

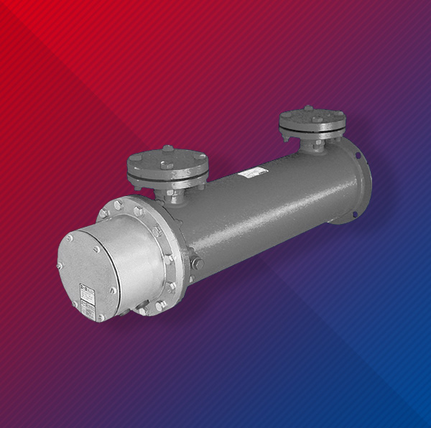

Heating of oil, heavy flame-resistant liquids and emulsions by electrical energy, especially for outdoor machines and facilities.
Heat capacity: 3 - 100 kW
Max. operating pressure: (< 6kW / > 9kW) 25 / 16 bar
Max. final temperature: 80°C
High temperature unit: max. final temperature: 200°C
Design/material
Heating element with bent heating rods (like a U-tube bundle)
Housing: steel version
Standard versions outfitted with thermostat
Applications
Heating of oil, heavy flame-resistant liquids and emulsions by electrical energy, especially for outdoor machines and facilities.
About us
FUNKE UK specialises in the production of custom-designed heat exchangers that prioritise exceptional quality. Our commitment is to continuously enhance our products, striving for constant improvement with each passing day.
With a reputable track record spanning over four decades, we have established ourselves as a reliable and renowned provider of ground-breaking solutions in the global market. Our focus lies in creating tailored solutions that cater to the evolving needs of future industries. Through collaborative efforts, we actively set benchmarks and contribute to industry advancements. Our success stems from our profound expertise in advisory services and technical prowess, enabling us to execute customer-assigned tasks with unwavering dedication and resolute determination.
Our customised solutions prioritise quality and safety, resulting in a diminished environmental footprint. Our commitment to environmental stewardship is reflected in our production facilities, which are designed to minimise their impact on the environment. Additionally, our unwavering dedication to "made in Germany" product excellence remains a fundamental pillar that guides our everyday operations. At FUNKE, the notion of quality encompasses meeting the high standards we set for our products and services. It signifies customer satisfaction, a sustainable environment, and a secure future.
Our Product & Services Include:
Shell-&-Tube Heat Exchangers
FUNKE provides a comprehensive selection of specialised models for shell and tube heat exchangers, catering to various needs in mechanical and plant engineering. The FUNKE brand is synonymous with utmost quality and a strong focus on customer-centric solutions.
Plate Heat Exchangers
FUNKE provides an extensive line-up of advanced plate and frame heat exchangers designed to meet the diverse needs of mechanical and plant engineering. The distinctive 'Off-Set' system by FUNKE, featuring asymmetrical flow gaps, enables the creation of highly efficient and cost-effective devices. These plate heat exchangers deliver exceptional performance per unit area, with up to 17% higher efficiency compared to conventional models, depending on the specific design.
Oil-/Air-Cooling Units
FUNKE offers a comprehensive selection of standard oil/air coolers that cater to a wide range of mobile and stationary applications. One notable series is the Okan 2.79 cooler series, which boasts a modular design, allowing for customisation to meet specific customer requirements. Specialised designs are available for marine and offshore applications, as well as installations in high-risk explosion areas. Another option is the Okan E series, designed specifically for standard applications in the industrial hydraulics sector, without any special design requirements. Alongside detailed documentation, 3D models of all oil/air coolers are provided as step files.
After-Sales & Service
Demonstrating FUNKE's dedication to customer satisfaction, our experienced customer service team provides comprehensive heat exchanger repair and maintenance services. Customers can rely on our team for general inspections of both plate and shell-and-tube heat exchangers. When requested, our skilled technicians will promptly arrive at the designated location in a modern and well-equipped vehicle to expertly handle equipment maintenance and repair tasks.
We offer thermodynamically optimised solutions that cater to a diverse range of industries and applications. Our product range includes both modular standard equipment and customised designs tailored to meet specific customer requirements, all in accordance with international norms and standards.
Additionally, we specialise in the production of safety heat exchangers and sterile equipment that adhere to FDA standards, specifically designed for the pharmaceutical and food processing sectors. Our customers enjoy the advantages of working with a midsize company that offers efficient and responsive service through streamlined decision-making processes.
Quality is our fundamental belief. At FUNKE, we are dedicated to delivering heat exchangers of the highest standard. Trust us to provide exceptional quality. Choose FUNKE for your heat exchanger needs.
With a reputable track record spanning over four decades, we have established ourselves as a reliable and renowned provider of ground-breaking solutions in the global market. Our focus lies in creating tailored solutions that cater to the evolving needs of future industries. Through collaborative efforts, we actively set benchmarks and contribute to industry advancements. Our success stems from our profound expertise in advisory services and technical prowess, enabling us to execute customer-assigned tasks with unwavering dedication and resolute determination.
Our customised solutions prioritise quality and safety, resulting in a diminished environmental footprint. Our commitment to environmental stewardship is reflected in our production facilities, which are designed to minimise their impact on the environment. Additionally, our unwavering dedication to "made in Germany" product excellence remains a fundamental pillar that guides our everyday operations. At FUNKE, the notion of quality encompasses meeting the high standards we set for our products and services. It signifies customer satisfaction, a sustainable environment, and a secure future.
Our Product & Services Include:
Shell-&-Tube Heat Exchangers
FUNKE provides a comprehensive selection of specialised models for shell and tube heat exchangers, catering to various needs in mechanical and plant engineering. The FUNKE brand is synonymous with utmost quality and a strong focus on customer-centric solutions.
Plate Heat Exchangers
FUNKE provides an extensive line-up of advanced plate and frame heat exchangers designed to meet the diverse needs of mechanical and plant engineering. The distinctive 'Off-Set' system by FUNKE, featuring asymmetrical flow gaps, enables the creation of highly efficient and cost-effective devices. These plate heat exchangers deliver exceptional performance per unit area, with up to 17% higher efficiency compared to conventional models, depending on the specific design.
Oil-/Air-Cooling Units
FUNKE offers a comprehensive selection of standard oil/air coolers that cater to a wide range of mobile and stationary applications. One notable series is the Okan 2.79 cooler series, which boasts a modular design, allowing for customisation to meet specific customer requirements. Specialised designs are available for marine and offshore applications, as well as installations in high-risk explosion areas. Another option is the Okan E series, designed specifically for standard applications in the industrial hydraulics sector, without any special design requirements. Alongside detailed documentation, 3D models of all oil/air coolers are provided as step files.
After-Sales & Service
Demonstrating FUNKE's dedication to customer satisfaction, our experienced customer service team provides comprehensive heat exchanger repair and maintenance services. Customers can rely on our team for general inspections of both plate and shell-and-tube heat exchangers. When requested, our skilled technicians will promptly arrive at the designated location in a modern and well-equipped vehicle to expertly handle equipment maintenance and repair tasks.
We offer thermodynamically optimised solutions that cater to a diverse range of industries and applications. Our product range includes both modular standard equipment and customised designs tailored to meet specific customer requirements, all in accordance with international norms and standards.
Additionally, we specialise in the production of safety heat exchangers and sterile equipment that adhere to FDA standards, specifically designed for the pharmaceutical and food processing sectors. Our customers enjoy the advantages of working with a midsize company that offers efficient and responsive service through streamlined decision-making processes.
Quality is our fundamental belief. At FUNKE, we are dedicated to delivering heat exchangers of the highest standard. Trust us to provide exceptional quality. Choose FUNKE for your heat exchanger needs.
