Euroteck Systems announce the launch of Go-Scan C-View

Portable Real Time X-ray Inspection!

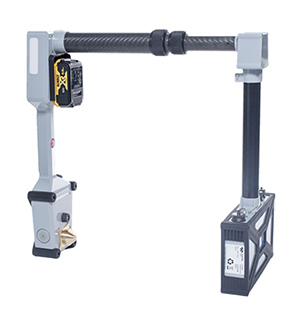

The Teledyne ICM Go-Scan C-View is a lightweight ruggedized real time X-ray imaging system primarily designed for hand-held inspection for Corrosion under Insulation (CUI) and other applications.

It includes a high speed and high-resolution CMOS imaging system, and a battery powered 70kV X-ray tube coupled to provide portable field operation. The video imaging system captures images and displays them on a handheld tablet in real time.

Technical Data:

Active Area : 102 x 153mm (4 x 6”)
Overall Weight : <6.5kg (14.3lbs)
Number of pixels: 1032 x 1048
Energy range : 40 to 70kV
Video frame rate: Up to 30 fps
Pixel pitch : 99µm
Scintillator: CMOS
Interface: Wired or Wi-Fi
Battery : Dewalt Battery
X-ray max power output: 12W
Operating conditions : -20ºc to +50ºc
Battery Performance: Approx. 2 hours continuous operation with 5Ah battery
Adjustable arm length : 30 to 65cm (12 to 26”)

Please contact Euroteck Systems to arrange a demo of the C-View or to discuss your requirement with us either at sales@euroteck.co.uk or on 01827 312455.
