Mineral Tanks Composites Media Vessels

FRP Mineral Tanks for Composite Media Filtration Systems, also know as Mineral Tanks, Pressure Vessels or Retention Tanks.

Housing

Selection of 10" Housings - Standard 10" - BiG Blue 10" - Stainless Steel 10"

Water Filter Cartridges

Replacement Whole House Ceramic Filters
1 Set of six ceramic Candles (Without Carousel)
for use with WH2000 - Whole House Filter

Undersink Drinking Water Filters

Under sink drinking water filter systems can supply clean purified drinking water for your home. Complete kit with fitting instructions.

Panel Mount Flow Meters & Pressure Gauges

Panel mount flow meters with valves, brass valve, ABS fittings, stainless steel float, silicone seals. Stainless steel pressure gauges with bottom or back connection

UV Sterilisers

UV Sterilisers - Available in flow rates 2 - 13 GPM / 7.5 lts to 51 lts. PM and various sizes, select size and flow from drop down box includes Power supply.

Whole House Filter

Stage 1:- Pre- Filtration

Removes coarse sediments from raw water supply and protects ceramic candles using :-
1 x 20” Big Blue Filter Housing with 1” Ports and 20” Pleated Sediment Filter.

Stage 2: - Carbon Block

Removes Colour and Odours and improves Taste using
10” Big Blue Filter Housing and 10” Big Carbon Block Filter

Stage 3: - Polishes water to high potable standard

Removes Turbidity, Bacteria & Cyst Reduction using the Rio 2000 ceramic candles housed in
1 x 10” Big Blue filter Housing.

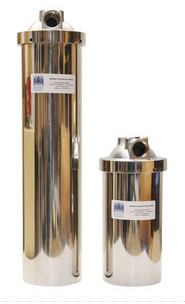

Stainless Steel Filter Housings

304 stainless steel, high pressure and corrosion resistant, hot and cold water filtration. Available in 10" and 10" or 20" big housing 3/4" - 1" ports

BIG BLUE Water Filter Housings

20" Full Flow (Big) Blue Filter Housing with Pressurre Relief Valve - 1" Ports
COMPLETE WITH BRACKET, SPANNER & SCREWS
Specifications:
> Colour ; Sump Blue/Cap Black
> Material Sump & Cap: polypropylene
> Material O-Rings: EPDM
> Maximum Operating Pressure: 80psi
> Maximum Temperature: 125 deg. F / 52 deg. C
> Minimum Temperature: 40 deg. F/ 4 deg. C
> Ports: 1” BSP

Features:
> Heavy Duty Construction made using high quality grade polypropylene
> Superior Chemical resistance for many aggressive chemicals
> Buttress thread design for superior sealing and security
> Thick Side walls with heavy duty ribs
> Cap, sump and top-seated O-ring compress to provide leak proof sealing.

Pleated Sediment Water Filter Cartridges

Pleated Sediment Water Filter Cartridges are suitable for removal of sediment with a larger surface area for longer performance and lower pressure drop.
Out performs other “depth” style filter elements because of increased surface area.

Benefits:

More surface area for greater dirt holding capacity; lower initial pressure drop; higher flow rates; longer cartridge life reduced replacement costs.
Washable and re-usable. For best results direct spray into pleats to dislodge sediment.

Specifications:

Maximum differential pressure:0.1 psi to 0.7 psi (depending on flow rate)
Minimum/Maximum temperature:40deg. F /140 deg. F (4deg.C/60 deg. C)

CarbonBlock Cartridge for BIG Blue Filter Housing

Features and Benefits :

Low Cost
Thick wall for superior performance.
Out performs GAC Cartridges
Superior Chlorine reduction
Lower pressure drop
Water cannot “Channel” through media
Media wrap between center tube and carbon block to reduce carbon fines.
100% coconut shell carbon Up to 99% chlorine reduction Long Life.
Maximum operating pressure: 125 PSIG

Operating Temperature: 50 deg. F to 125 deg. F 10 deg. C to 52 deg.

Wound Sediment Cartridge

Wound Polypropylene Sediment Cartridge

10" x 4.5" Dia.

FOR USE WITH 10" BIG BLUE FILTER HOUSING

Max. Operating Temperature 65 deg C.

Our wound filter cartridges are structured loose outer layers and tight inner layers which can offer true depth filtration for
high dirt holding capacity and extremely low media migration to ensure temperature and chemical compatibility.
the main advantage of wound filter cartridge is it's exceptionally high structural strength, therefore they can withstand
severe operation operating conditions.

Features & Benefits
Wound Filter cartridges are used in pre-filter applications
Provides improved dirt-holding capacity
Long Life Cycle
Polypropylene: acceptable for potable water

Applications: Water, Dilute Acfids, Oxidising agents, Plating Solutions

Spun Polypropylene Water Filter Cartridge

Available in 4 Micron Ratings - 1, 5, 20 and 50 micron
Applications:

Potable Water
Beverages
Pre-Filtration for R.O.
Fine Chemicals
Electronics
Metal Finishing
Plating Solutions +

Features:

Low Cost
Excellent chemical resistance
Food Grade for food and beverages
No media migration
High dirt holding capacity
Six micron ratings
Shrink wrapped for purity

Specifications:

Material: Spun Polypropylene
Maximum Temperature: 140deg.F/60deg.C
Maximum Pressure: 40 PSID
Maximum Flow Rate: 10 − 30 ltsbased on micron rating

GAC Water Filter Cartridges

Granular Activated Carbon GAC Water Filter Cartridges for the reduction of chlorine, metals, taste, odour, colour and sediment in water.
Specifications:
Media: Granular Activated Coconut Carbon
Cartridge: Polypropylene
Min/Max Working pressure: 20 psi/125psi
Min/Max Temperatures: 40 deg.F/100 deg.F (4deg.C / 31 deg.C
Max: Flow Rate: for 10” x 2.5” 1gpm.

Water Softener Cartridge

10" x 2.5" Water Softener Filter Cartridge filled with cation resin which softens water and removes calcium and magnesium.
The ends of the cartridge are padded with special pp layer, which provides a higher flow rate of the cartridge without any seepage of untreated water.
This cartridge should be flushed befiore service until clear water is produced.
Specifications:
Filter Media: Cation Resin
Filter Rate: 5 microns
Size: 10" x 2.5"
OD: 70mm
ID:28mm
Max. Operating Pressure: 80 psi
Max; Flow Rate: 9.46 lpm.

Ceramic Water Filter Cartridge

This ceramic filter provides absolute filtration to 0.5 microns and removes:

Algae, rust, sediment and suspended solids 99.9%
Inhibits the growth and reduces harmful bacteria by a rate better than 99.9%
E.Coli, Cholera, Shigella, Salmonella, Klebsiella.
Reduces Cryptosporidium by 99.999%
Reduces Guardia and other Cysts by 99.999%
Turbidity Reduction: 99.9%
Flow Rate @ 3 bar 8 l/min.

The Ceramic Filter is Housed in a 10” Filter Housing and should be changed every 12 months or less depending on water usage.

Pressure Gauge 0-100 psi

A. Installation Mode: Back connection
B. Case Material: Stainless Steel
Technical Specification
Pressure Gauge Psi/Bar (0-7 Bar/0-100 Psi)
Connection 1/4" BSPT

Reverse Osmosis Membrane

Specifications:

Domestic Reverse Osmosis Membrane
Capacity: 75 Gallons Per Day.
For use on domestic Reverse Osmosis Systems.
Application: Tap Water
Size: OD 1.8” x Length 11.75”
TFC Membrane - Spiral Wound
Salt Rejection: 96%
Max Operating Temperature|: 113 deg.F/45 deg.C
Max Operating Pressure: 125 psi
Max. Turbidity (NTU) 1
Max: SDI 5
pH Range: 3-10

Twist Lock Sediment Cartridge

5 micron sediment filter provides and effective barrier removing dirt, dust, silt and sand particles from in-coming water supplies,protects and extends the life of secondary filters.
Capacity: 9500 lts. Max. Operating Temperature 38 deg.C
Maximum Operating Pressure 6.9 Bar
This Filter requires a Single or Double Cartridge Head & Tap and saddle valve Kit

Commercial Filter Housing 3/4” Ports

Manufactured to FDA Standards using High Quality PP and AS, with thick wall and Rib design to withstand higher pressure.
Maximum operating pressure : 80 psi
Cycle Test Pressure: 0-115 psi, 100000cycles
Recommended Pressure: 4.5 bar at 25 deg.C
Maximum Temperature: 50 deg.C
Flow Rate and Pressure loss dependent on Filter element rating.

Compression Coupler

Brass Compression Coupler
Male 1/2" BSP to 15mm compression

Push Fit GAC Water Filter Cartridge

2” x 10” x ¼” Push Fit GAC Water Filter Cartridge
Media: Coconut Shell Activated Carbon
USES:
For Pre and Post Reverse Osmosis and Ice maker Filtration.
Flow rates to 0.75 gpm

Standard Water Filter Housing Bracket, Spanner & Screws

Bracket, Spanner & Screws for 10" Standard Water Filter Housing

Carbon Block Cartridge for BIG Blue Filter Housing

Features and Benefits :

Low Cost
Thick wall for superior performance.
Out performs GAC Cartridges
Superior Chlorine reduction
Lower pressure drop
Water cannot “Channel” through media
Media wrap between center tube and carbon block to reduce carbon fines.
100% coconut shell carbon Up to 99% chlorine reduction Long Life.
Maximum operating pressure: 125 PSIG

Operating Temperature: 50 deg. F to 125 deg. F 10 deg. C to 52 deg.

Single Cartridge Head

The Twist Lock range of Single and Double Head Point-Of-Use (POU) systems and Cartridges provides a functional easy to use under-sink
filtration system with a selection of filter cartridges suitable for a wide variety of applications from vending to potable water.
The twist and lock cartridge connections ensures a reliable and leak free system, whereby a simple 1/4" turn automatically shuts off the inlet and outlet water channels, allowing trouble free cartridge changeout.
