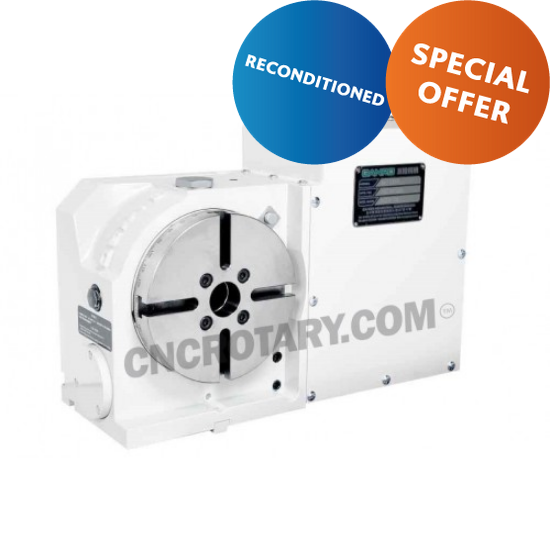

Ganro 120mm diameter CNC rotary table without motor, can be prepared to suit any interface at additional cost (see our interface listings for details and costs for external interface (motor, switch, cable and connector requirements if you already have a 4th axis interface in the machine) and machine interface costs (if you do not have the additional axis fitted).

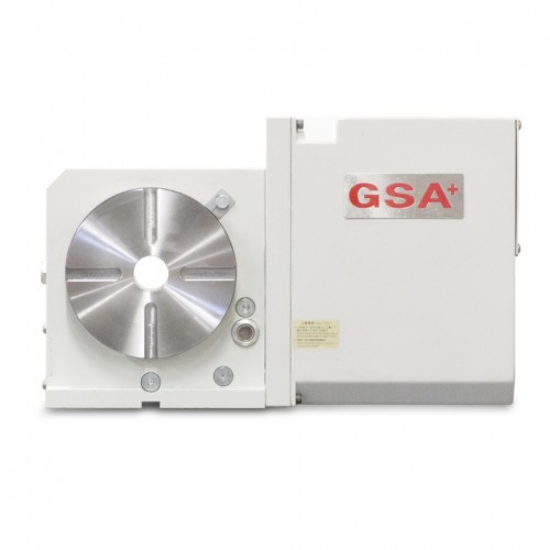

GSA-170 Vertical & Horizontal CNC Rotary Table.

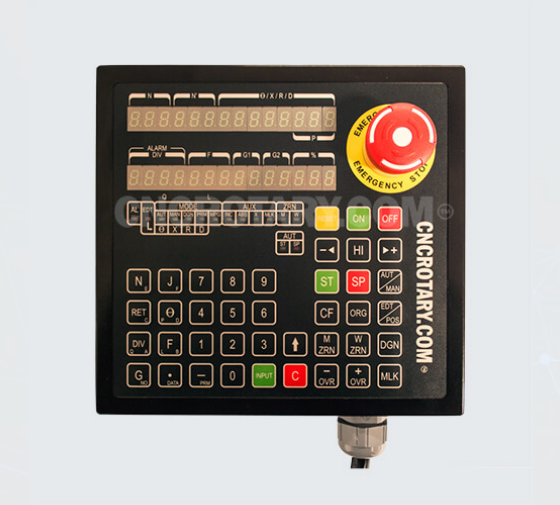

Hofmann RWNC-160 EDM CNC rotary table complete with motor and separate Goodwin programmable control unit. Specifically designed for use with an EDM machine and EDM environment, complete with internal collector, sealed cable set and fully programmable device with a minimum increment of 0,001 degrees.

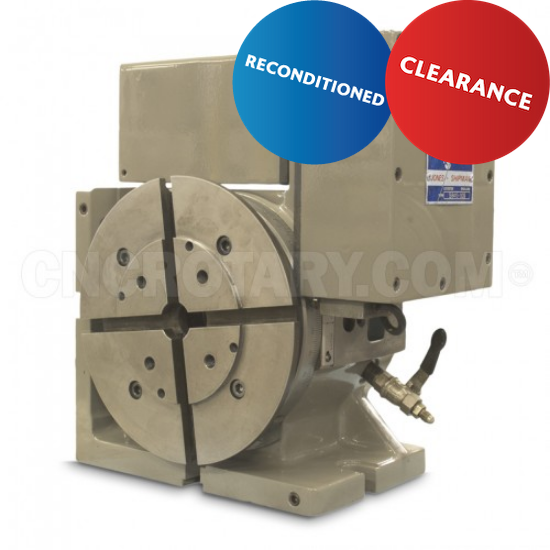

This table has been produced to be an exact replacement for the Jones and Shipman 8413 on a Bridgeport VMC.

80-230mm Faceplate (4th Axis), CNC Rotary Tables, Reconditioned, Rotary Tables

Fibro NC1.02 (2-ACHS-NC-KOMB) rotary table with motors and encoders ready for connection to Magerle grinding machine version 1. For use with GPS240 pallet (not included).

80-230mm Faceplate (4th & 5th Axis), CNC Rotary Tilting Tables, Reconditioned, Rotary Tables

80-230mm Faceplate (4th & 5th Axis), CNC Rotary Tilting Tables, Reconditioned, Rotary Tables

80-230mm Faceplate (4th & 5th Axis), CNC Rotary Tilting Tables, Rotary Tables

80-230mm Faceplate (4th & 5th Axis), CNC Rotary Tilting Tables, Rotary Tables

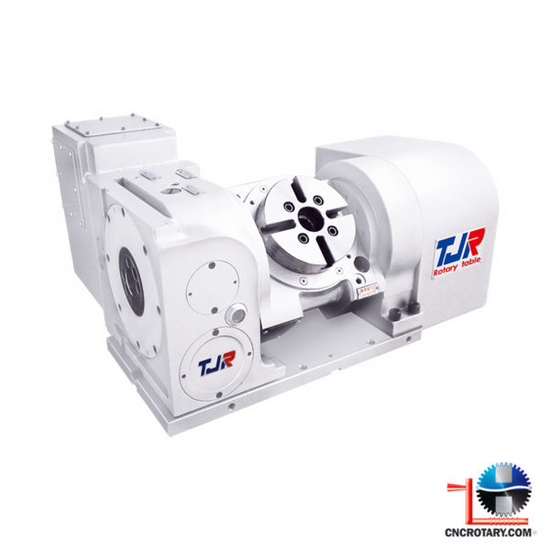

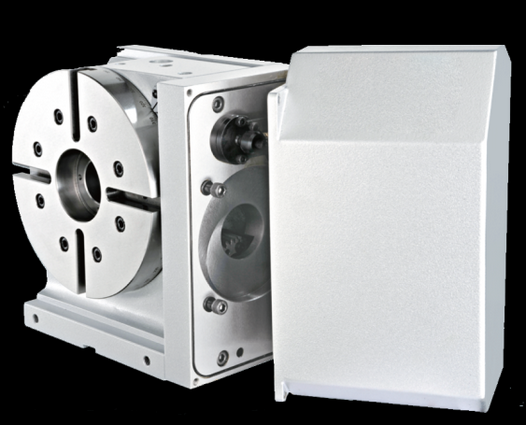

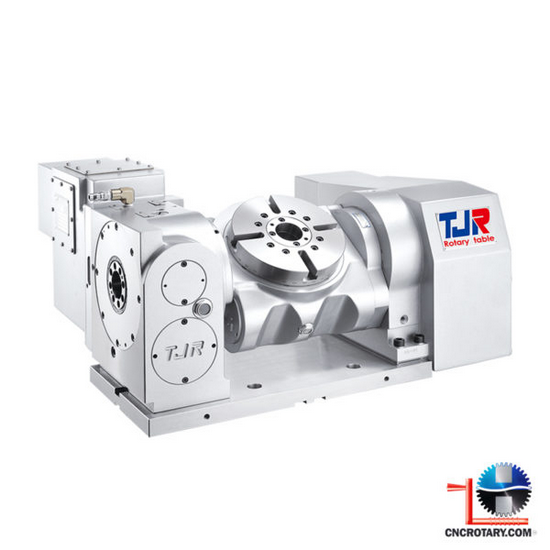

The latest FAR-A (A = Compact width for use on VMC’s) tilting range from TJR, with fantastic features including high speed rotation and a high power pneumatic clamping system.

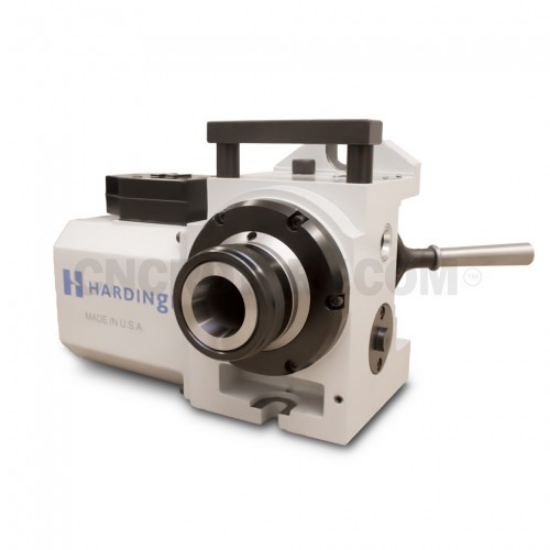

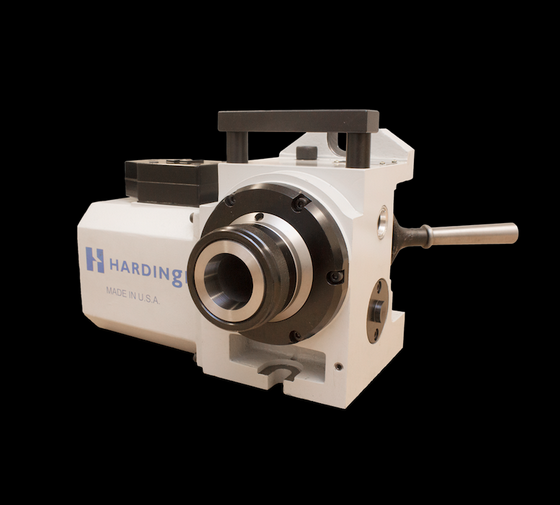

Hardinge 5C Single Spindle Indexer.

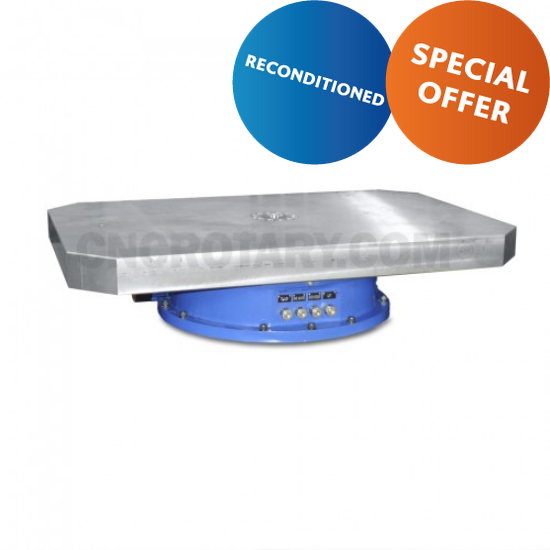

PH-Hirth 1.5m X 1m Indexing Table.

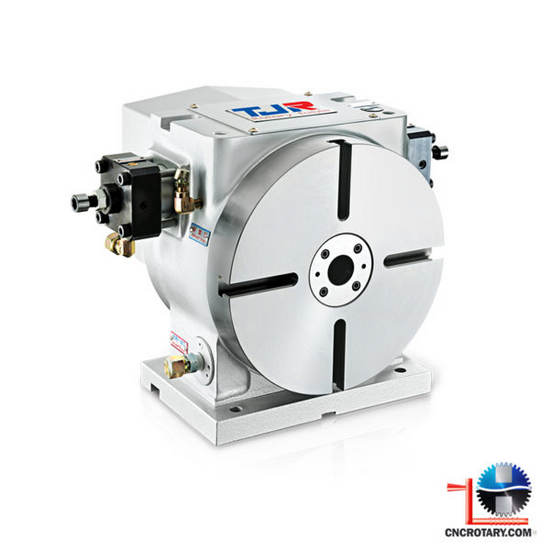

TJR HC-255A is a 255mm diameter hydraulic 3 ring hirth coupling indexing rotary table with high accuracy +/- 5 seconds, repeatability of 1 second. High power braking system.  Indexing capability of 2,3,4,6,8,12 & 24 equal divisions of 360 degrees, when high accuracy is required without the cost of adding an additional axis drive to your machine.

TJR HC-320A is a 320mm diameter hydraulic 3 ring hirth coupling indexing rotary table with high accuracy +/- 5 seconds, repeatability of 1 second. High power braking system.  Indexing capability of 2,3,4,6,8,12 & 24 equal divisions of 360 degrees, when high accuracy is required without the cost of adding an additional axis drive to your machine

The latest 500 range from Lehmann, with major developments over and above the 400 series devices.

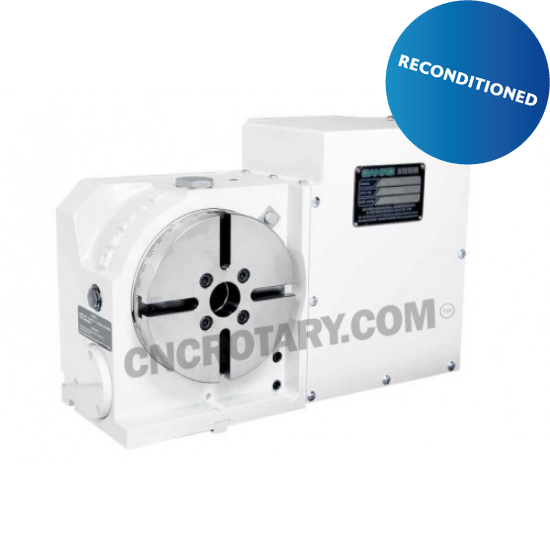

Ganro 170mm diameter CNC rotary table without motor, can be prepared to suit any interface at additional cost (see our interface listings for details and costs for external interface (motor, switch, cable and connector requirements if you already have a 4th axis interface in the machine) and machine interface costs (if you do not have the additional axis fitted).

451mm+ Faceplate (4th Axis), CNC Rotary Tables, Reconditioned, Rotary Tables

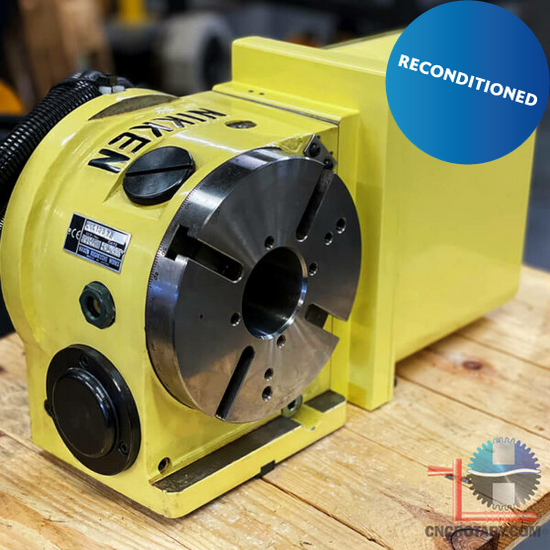

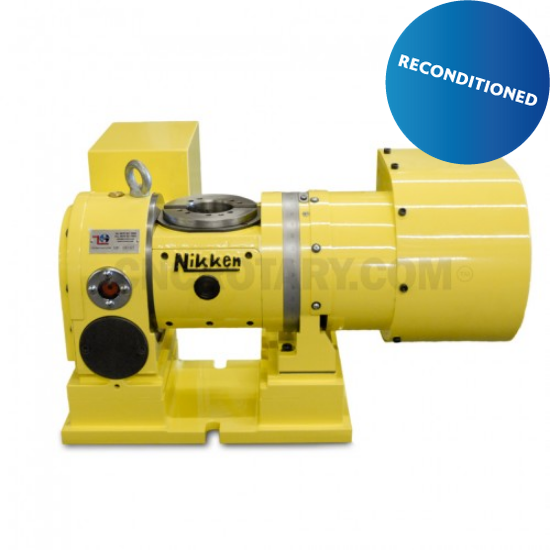

The Nikken CNC-180YA is a top-performing rotary table ideal for CNC machining applications. It boasts a compact and high-precision design, with a 180mm diameter face plate and a spindle hole of 60mm. With a maximum vertical work load of 100kg and a maximum horizontal work load of 200kg, it can handle a wide range of machining operations.

The AIR clamping system with a clamping torque of 303Nm ensures secure workpiece holding, while the driving torque of 72-54Nm allows for smooth and accurate rotary motion. Its indexing accuracy of ±20 sec and maximum unbalancing load guideline of 30Nm ensure stable machining at high speeds.

Overall, the Nikken CNC-180YA offers a reliable and precise rotary motion solution for CNC machining applications, making it an ideal choice for professionals seeking high-quality performance.

80-230mm Faceplate (4th Axis), CNC Rotary Tables, Reconditioned, Rotary Tables.

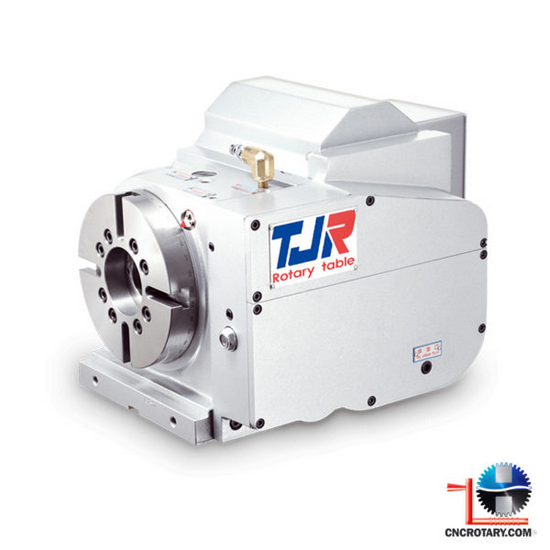

TJR AR-125B is a 125mm diameter CNC rotary table with rear mounted motor position, priced without motor and can be prepared to suit any interface at additional cost. (See our interface listings for details and costs for external interface (motor, switch, cable and connector requirements if you already have a 4th axis interface in the machine) and machine interface costs (if you do not have the additional axis fitted).

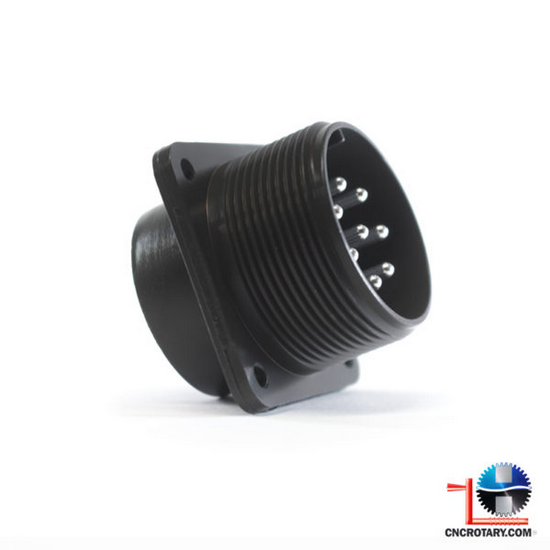

Amphenol Military Style Circular Cabinet Connector – 3102A.

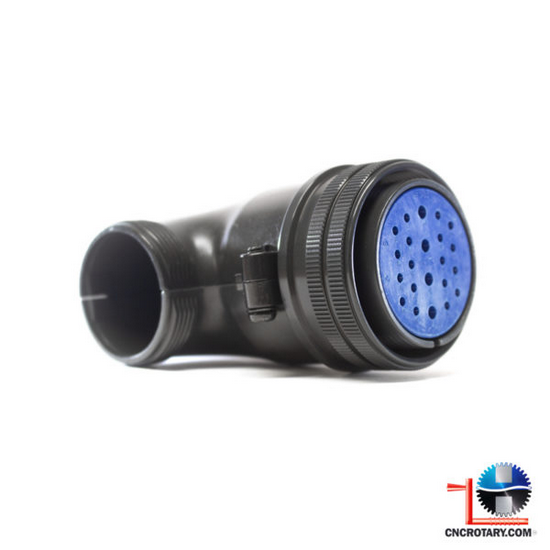

Amphenol Military Style Circular Right Angle Connector – 3108B.

18,000 pulse encoder 1vpp output with 12 way connector identical performance, dimensional and mounting detail to Heidenhain catalogue. Multiple marker pulse +/- 5 seconds of arc.  Comes with 12 months warranty.

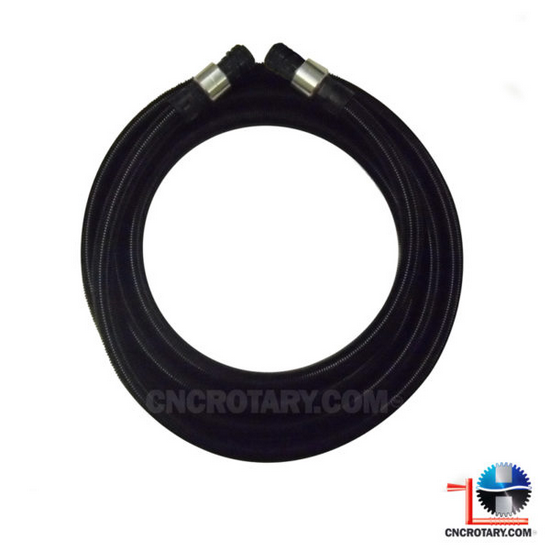

5M long cable in conduit or PMA for encoder connections for Fanuc encoder versions. Connector Type 20-29

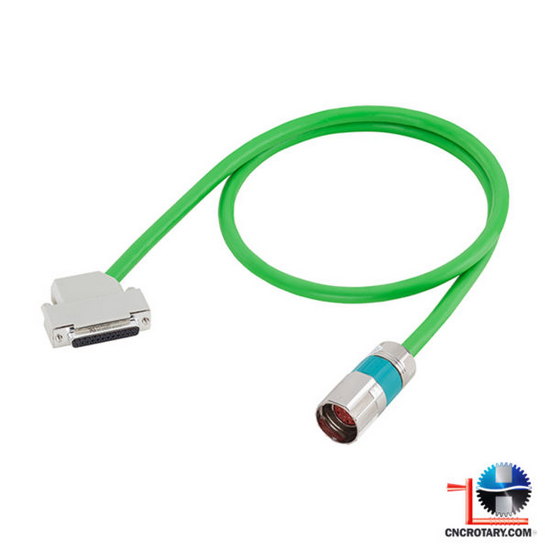

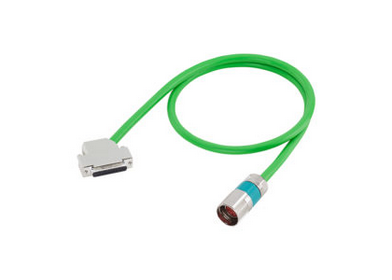

Siemens Absolute Encoder Cable MC500.
