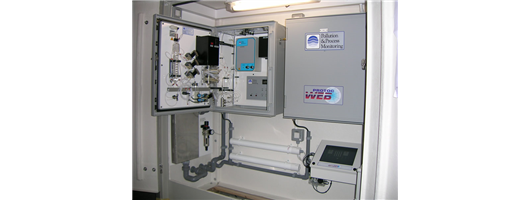

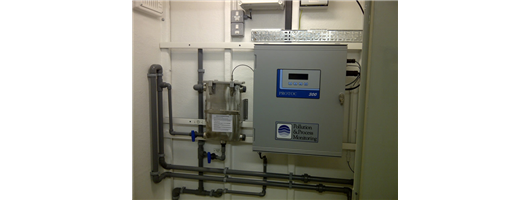

PROTOC ® - TOC Analyser

PROTOC® is a fast, reliable and flexible on-line analyser system designed to accurately determine TOC/TC (Total Organic Carbon) concentrations in real time.

The Protoc total organic carbon analyser comprises a wall mount analyser section which may have an integral keypad and display or can be supplied with a separate touch screen which can then also provide graphical representation, data storage and user interface with the TOC analyser section. A separate junction box provides connection of power supply and output signals, for connection to telemetry.

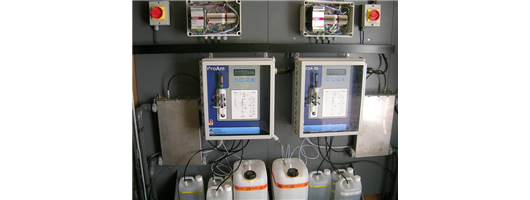

PROAM - Ammonia Monitor

The ProAm Ammonia Monitor is a simple, compact on-line analyser designed currently to accurately determine ammoniacal-nitrogen in real-time. Other parameters which include Nitrate, Chloride and Fluoride may also be configured.

The instrument comprises a wall-mount analyser section with an integral sample pump; a controlling processor interfaced by a membrane keyboard and back lit LCD. Electrical connections for power supply and signals are externally made from a separate IP65 enclosure which is typically installed adjacent to the analyser section

OFD-1 (Oil Film Detector)

The OFD-1 Oil Film Detector is a simple, compact, on-line instrument designed to reliably identify the presence of a floating oil film. The continuous, non-contact measurement technique provides real-time alarming and control functionality.

The instrument comprises a wall-mount controller/display section with an integral membrane keypad and back lit LCD, which interfaces with a sensor. The sensor is positioned over the water body (or within a concrete bund) or alternatively over a sample breaktank receiving a pumped sample.

The non-contact laser is focussed onto the water surface and when a fine film of oil appears, the increased reflectance is measured by the sensor. Consequently the technology responds quickly to an event and immediately recovers once the event has passed.

Terminator Pollution Abatement System

Terminator is a simple, compact and innovative solution designed to automate the isolation of site discharges. The system comprises a surface mounted controller connected to an inflatable bladder which is permanently installed within a discharge pipe. It is simple to install, simple to operate and is an effective control measure providing protection against release of pollution. Various models are available:

Terminator - EL
Low cost, pollution abatement system using an inflatable bladder requiring external air (latched alarm maintains inflated state).
Terminator - ER
Low cost, pollution abatement system using an inflatable bladder requiring external air (automatic deflation once alarm recovers).
Terminator - IL
Low cost, pollution abatement system using an inflatable bladder with integral compressor (latched alarm maintains inflated state).
Terminator - IR
Low cost, pollution abatement system using an inflatable bladder with integral compressor (automatic deflation once alarm recovers).

Chemitec 50 Series Digital pH/DO/Conductivity/Turbidity/MLSS

The Chemitec 50 Series controller is a multiple parameter input water quality instrument. Key parameters include pH/DO/Conductivity/Turbidity/MLSS using robust sensor technology. The instrument provides a local LCD display with outputs for connection to a site telemetry system. Multiple analogue outputs (4-20mA signals) and freely programmable relays for high/low alarm set points and system fail, may also be connected. The instrument also records data which can be exported to a memory stick via the integral USB.

Chemitec Colortec

The colorimetric analyser performs continual measurement of water and waste-water on a user defined interval. Key determinands include ortho-phosphate, iron, aluminium, manganese and Chrome V1.

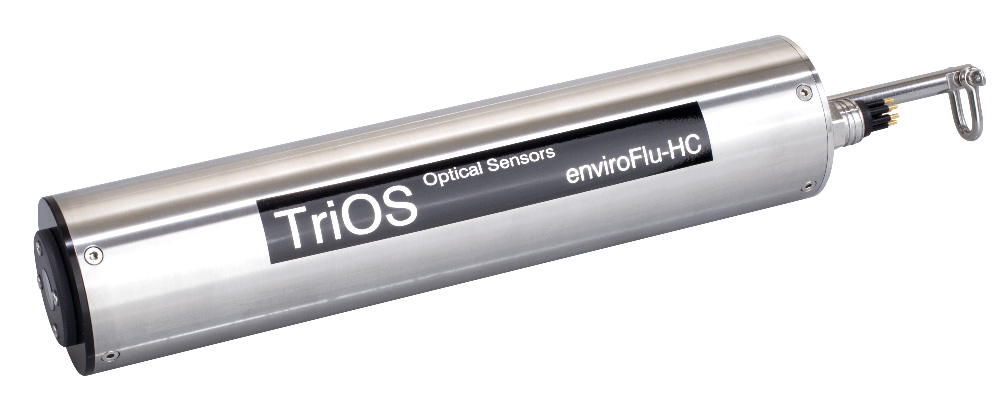

TriOS Enviroflu Oil in Water

The Trios Enviroflu is manufactured in Germany and distributed by PPM in the UK.

The sensor uses UV fluorescence to measure Poly Aromatic Hydrocarbon (PAH) oil in water at trace concentrations over the range 0-500PPB.

The sensor may be connected to a multi-channel transmitter providing a local display and control outputs.

The technology is ideally suited to intake protection potable water production applications and for measurement of surface water discharge and cooling water discharge which may contain hydrocarbons.

Trios NICO Sensor

The Trios NICO sensor is manufactured in Germany and distributed by PPM in the UK.

The sensor uses UV absorption at four frequencies to measure Nitrate in water over the concentration range 0-100mg/L NO3 and feature automatic turbidity correction and an optional wiper to keep the optical window clean from fouling.

The sensor may be connected to a multi-channel transmitter providing a local display and control outputs.

The technology is ideally suited to intake protection, potable water production applications and for effluent discharge measurement where nitrate based consents have been imposed.

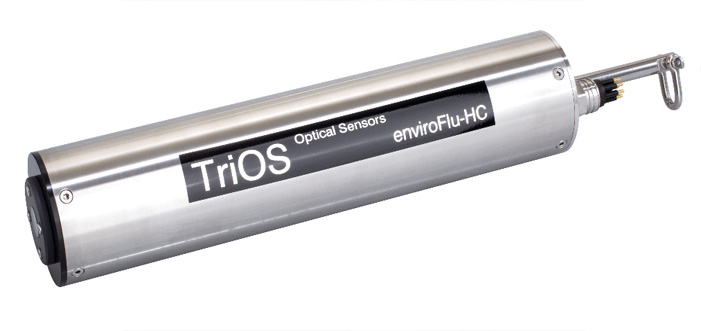

Trios UV fluorescence - oil in water sensor

IQ Sensor Net

Modular digital interface accepting multiple sensors including pH, DO, turbidity, ammonium and nitrate suitable for water & waste-water quality monitoring.

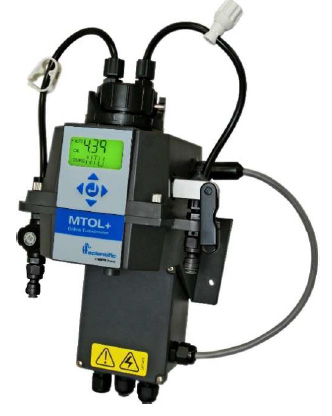

HF MTOL+ Turbidimeter

Leading edge, microprocessor technology combined with over 35 years of optical measurement experise, has allowed HF Scientific to become the leader in regulatory reporting turbidimeters.

TOA-DKK ODL1600

The DKK Oil on water detector uses non contact measurement technology to detect the presence of a floating oil film on rivers and surface water whilst accommodating significant variation in water level.

P200 UVT Meter

The P200 UVT meter is a portable UVT (UV transmission) water quality instrument. It is small, simple to use and can be either used with an internal battery or power supply. The measurement of UVT is used to give a general indication of water quality. UV254nm is particularly absorbed by organic compounds dissolved in the water body and by turbidity (suspended solids) in suspension. It is therefore an ideal measurement to determine the effectiveness of UV irradiation for disinfection on water and waste water treatment sites.

Realtech UVT Analyser

The analyser uses ortho-beam (dual path length) optical technology and a flow through design to report the UV transmission (UVT) or UV absorption (UVA) of water or water-water containing dissolved organics or nitrate.

Various path lengths provide different measuring ranges and detection limits. Single wavelength measurement at 254nm and multiple wavelengths versions are provided.

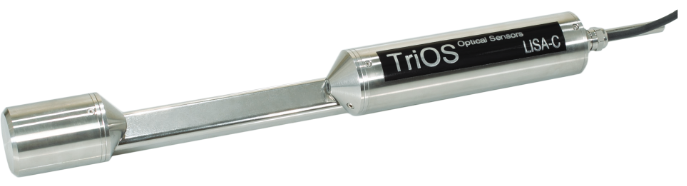

TrioS LISA Colour Probe

Colorimetry − LISA enables reliable low-cost color measurements. LISA color uses two different LEDs for longterm stable measurements of SAC or colors at different wavelengths. The second channel is used for turbidity/ background correction. The cutting-edge device platform, used in all other TriOS photometers, enables optical path lengths of 50, 100, 150 and 250 mm, so that almost any application can be easily implemented.

LISA color also enables applications in aggressive media (e.g. high chloride concentrations) thanks to the optional titanium housing.

Equipped with our G2 interface with web browser configuration, internal data logger, flexible protocols and data outputs, LISA color includes features that are much more advanced than those of comparable devices currently available on the market.

The cutting-edge G2 interface not only enables quick integration into third-party systems, but also the use of a wide range of accessories for our devices.

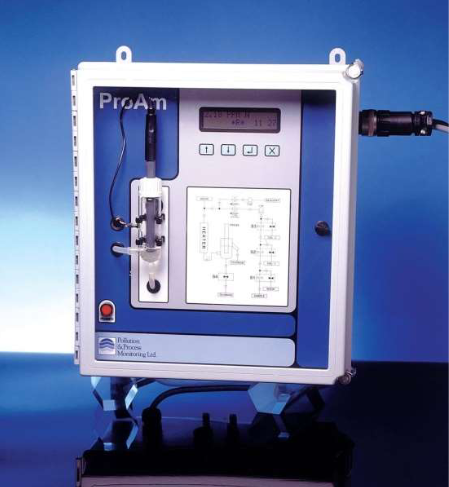

Proam − Chloride Monitor

The ProAm Cl is a compact, continuous on-line instrument reporting Chloride (Cl−), using a recognised ISE methodology. The analyser incorporates a simplified design with particular emphasis on reducing running costs and optimising response time. The low purchase cost and small footprint also reduces the cost of installation.

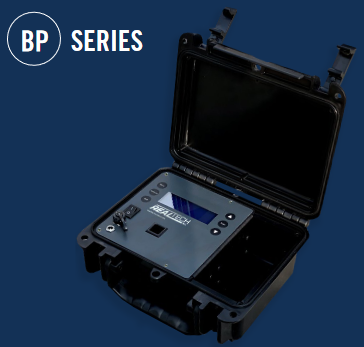

Realtech BP Series meter - COD,BOD

The portable BOD/COD Field Meter from Real Tech provides simple and affordable testing of organic matter in water or wastewater. Operation is straight forward with accurate and repeatable results obtained in seconds. An optional Battery Pack allows for sampling anywhere, anytime giving the user true portability.

About us

Pollution & Process Monitoring Ltd is an independent manufacturer and distributer water quality instrumentation for continuous measurement using analyser and submersible probe technologies. We also specialise in providing bespoke turnkey measurement systems. Key measurement parameters include TOC, ammonia, nitrate, phosphate, UVT, pH, turbidity and oil detection. Applications include measurement of raw and potable water; waste water, final effluent, process control, Environmental monitoring, wastewater monitoring and surface water measurement.

We as a company specialise primarily in Turbidity meter, pH meter, DO meter, Dissolved Oxygen meter, Conductivity meter, Nitrate measurement, Phosphate analyser, UVT meter, UV, Transmissivity, UV254nm meter, Suspended solids measurement and more.
