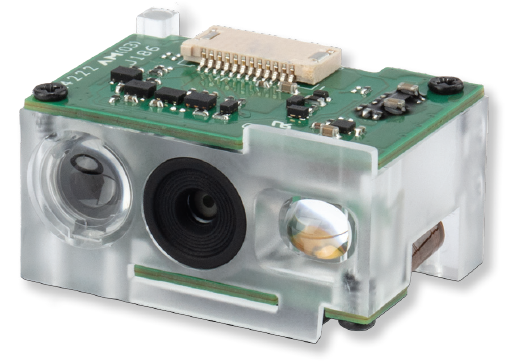

Honeywell N4680 Compact Decoded 2D
Drop-in replacement for the N3680.
Honeywell’s next generation, compact decoded N4680 2D scan engine is available
in either TTL serial or USB versions, both with an industry-standard, 12-pin ZIF
connector. To provide an easier migration path for customers using its predecessor,
the Honeywell N3680, the N4680 scan engine is the same mechanical size and
features the same mounting holes and electrical pin-out to create a drop-in
replacement. For legacy customers using the Gen5 5×00 and EAxx platforms, the
N4680 engine provides an upgrade path to better performance in a more compact
one-piece package
Honeywell EX30
The Extended FlexRange™ EX30 2D Scan Engine for warehouse and distribution center operations seamlessly reads barcodes from 10 cm to 20 m [4 in to 66 ft] using the latest technology for a fast auto-focus mechanism.
Warehouse and distribution centre operation managers need barcode scanning solutions that can read barcodes at close distances as well as those farther away, such as package labels on shelves as high as 10 cm to 20 m [4 in to 66 ft]. The EX30 answers this key requirement by enabling a wide angle read range of 42° at close distances and up to 20 m [66 ft].

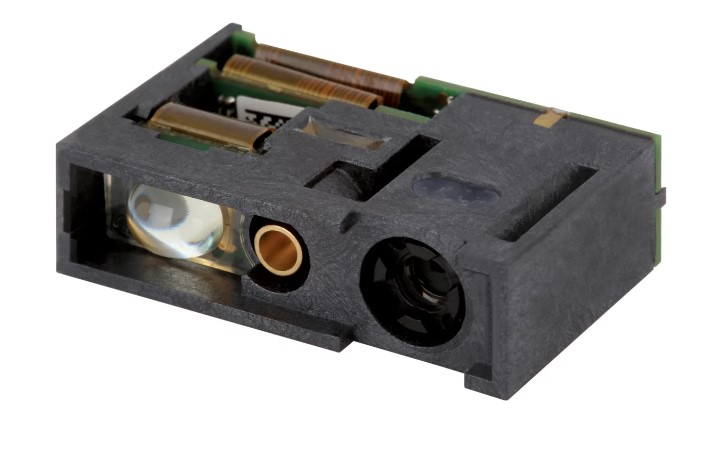

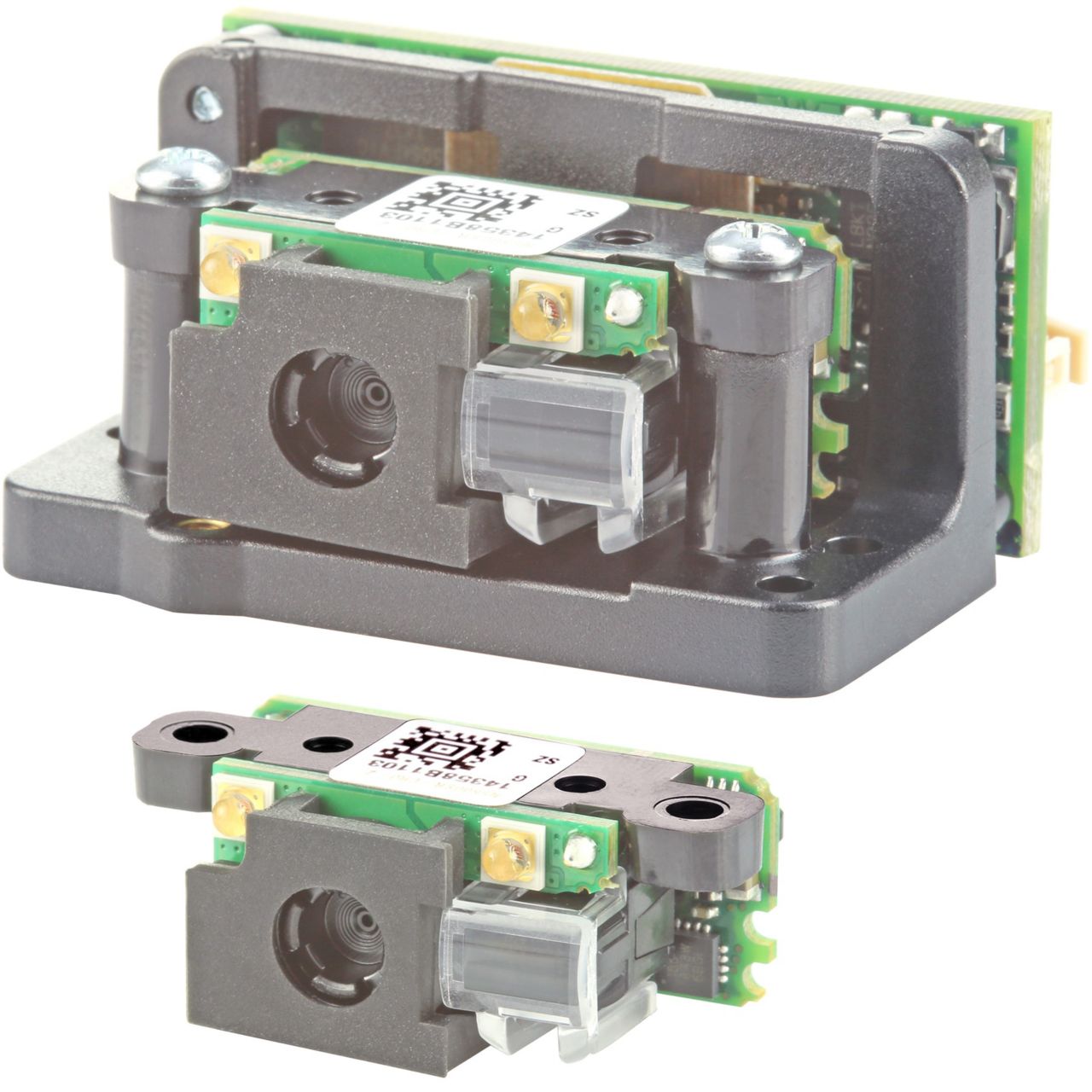

Honeywell N5X00 Series 2D Scan Engines
Honeywell’s 5X00 family combines the latest CMOS industrial-grade image sensor technology, illumination and optics to create a compact, lightweight optical module capable of reading linear, stacked linear and matrix barcodes.
In addition, these imagers can read and decode OCR fonts and capture digital images.

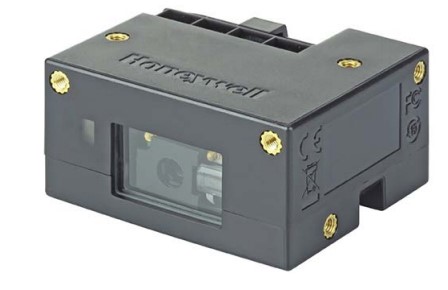

Honeywell CM Series 2D Imager Modules
• CM5680SR-XXX: Enhanced Performance (Standard Range)
• CM5680WA-XXX: Specialized Performance (Wide Angle)
• CM2180MP-XXX: Specialized Performance (Megapixel)
-Compact size: The cable connector extends off the side of the device instead of the back, reducing depth and simplifying integration.
-Enhances durability: Slider bracket holds the customer-supplied micro-USB cable securely in place so it does not become disconnected easily.
-Simplifies integration: Ten mounting holes, all-in-one design, compact size, connector compatibility and slider bracket expedite integration.
-Enhances performance: Choice of red or white LED illumination. Select white to expedite decoding of coloured barcodes and for customer-facing applications.
-Four optics options: Select the performance your application requires: Standard or Enhanced (Standard Range), or Specialized (Mega Pixel or Wide Angle).
-Withstands extreme temperatures: Industrial-grade technology allows the imager module to tolerate temperatures from -30°C to 60°C [-22°F to 140°F].
OMRON QX-830 Compact Industrial Raster Laser Scanner
• Read Range: 1 to 30” (25 to 762 mm)
• Optional Embedded Ethernet TCP/IP & EtherNet/IP
• IP54 Enclosure
OMRON QX-870 Industrial Raster Laser Scanner
• Read Range: 1 to 30” (25 to 762 mm)
• Optional Embedded Ethernet TCP/IP & EtherNet/IP
• IP65 Enclosure
OMRON MS-3 Compact Laser Barcode Scanner
Decodes/second: up to 1000
Read range: 51 to 254 mm
Wide scan angle
IP54 enclosure

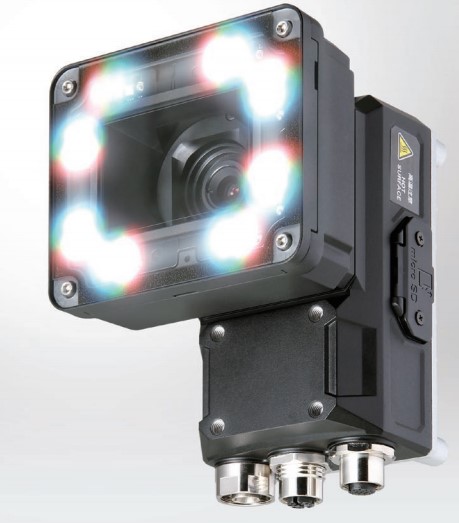

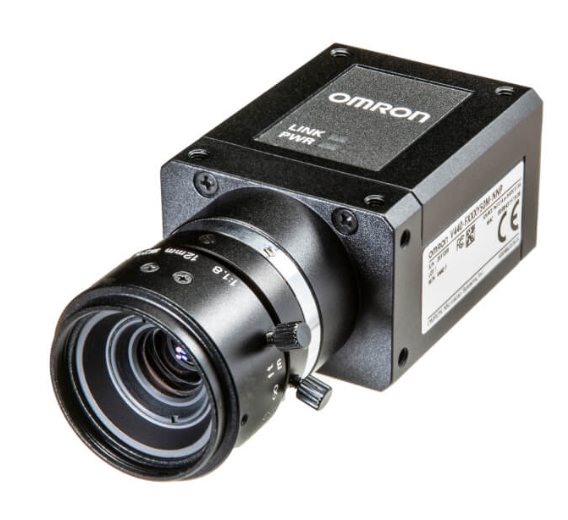

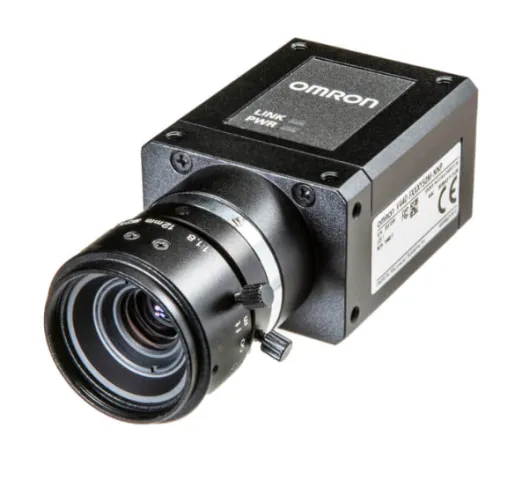

OMRON F440-F 5-Megapixel C-Mount Smart Camera
The F440-F C-Mount Smart Camera with AutoVISION 5.3.0 user interface is a highly configurable smart camera with a 35 frame-per-second 5 megapixel monochrome global shutter sensor. The C-mount lens, external lighting options, and 5 megapixel sensor optimize the F440-F for virtually any machine vision applications.
The F440-F is pin-compatible with the MicroHAWK F430-F smart camera, ensuring a clear upgrade path with all the same wiring accessories. AutoVISION – the intuitive setup tool for the F440-F – allows you to configure highly complex applications quickly and easily.

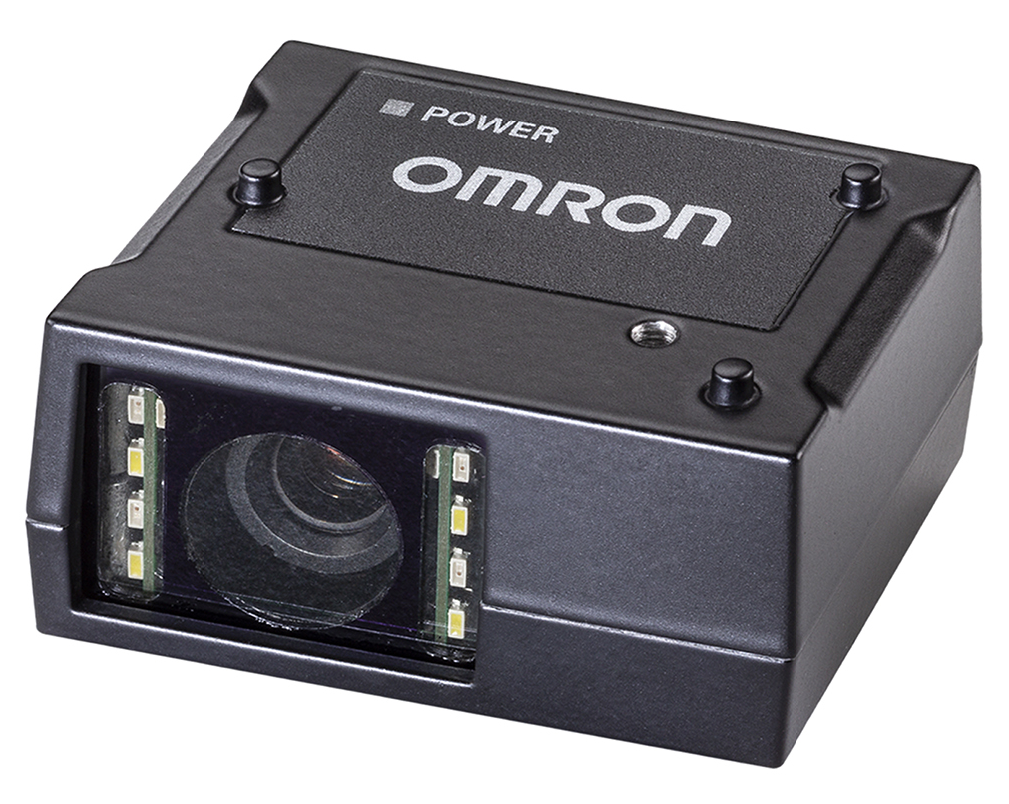

OMRON MicroHawk V430-F Autofocus Multicode Reader
IP65/67
High-speed Ethernet, Serial RS-232
X-Mode advanced decoding algorithms
Optional liquid lens autofocus
EtherNet/IP , Ethernet TCP/IP
Passive Power over Ethernet (PoE)
Integrated targeting and read/pass indicators
WebLink browser-based setup interface
Also available as fixed focus
Replaces the ID40 (741X-)
OMRON MicroHAWK V420-F Autofocus Multicode Reader
Simple configuration with WebLink.
5 megapixel sensor available.
Autofocus available.
Serial RS-232, USB, or Ethernet over USB.
IP54.
Corner-exit cable
Replacing the ID30 (731X)
OMRON MicroHAWK F430-F Smart Camera
Simple configuration with AutoVISION.
5 megapixel sensor available.
Autofocus available.
Alternate LED configuration available.
Smallest in class.
IP65 / IP67.
Ethernet TCP/IP, Ethernet/IP, ProfiNET I/O
OMRON MicroHAWK F330-F Smart Camera
Simple configuration with AutoVISION.
5 megapixel sensor available.
Smallest in class.
IP40.
Single snap-in RJ45 connector and cable.
Ethernet TCP/IP, Ethernet/IP, ProfiNET I/O
Power over Ethernet.
OMRON LVS-9585 DPM Barcode Verifier

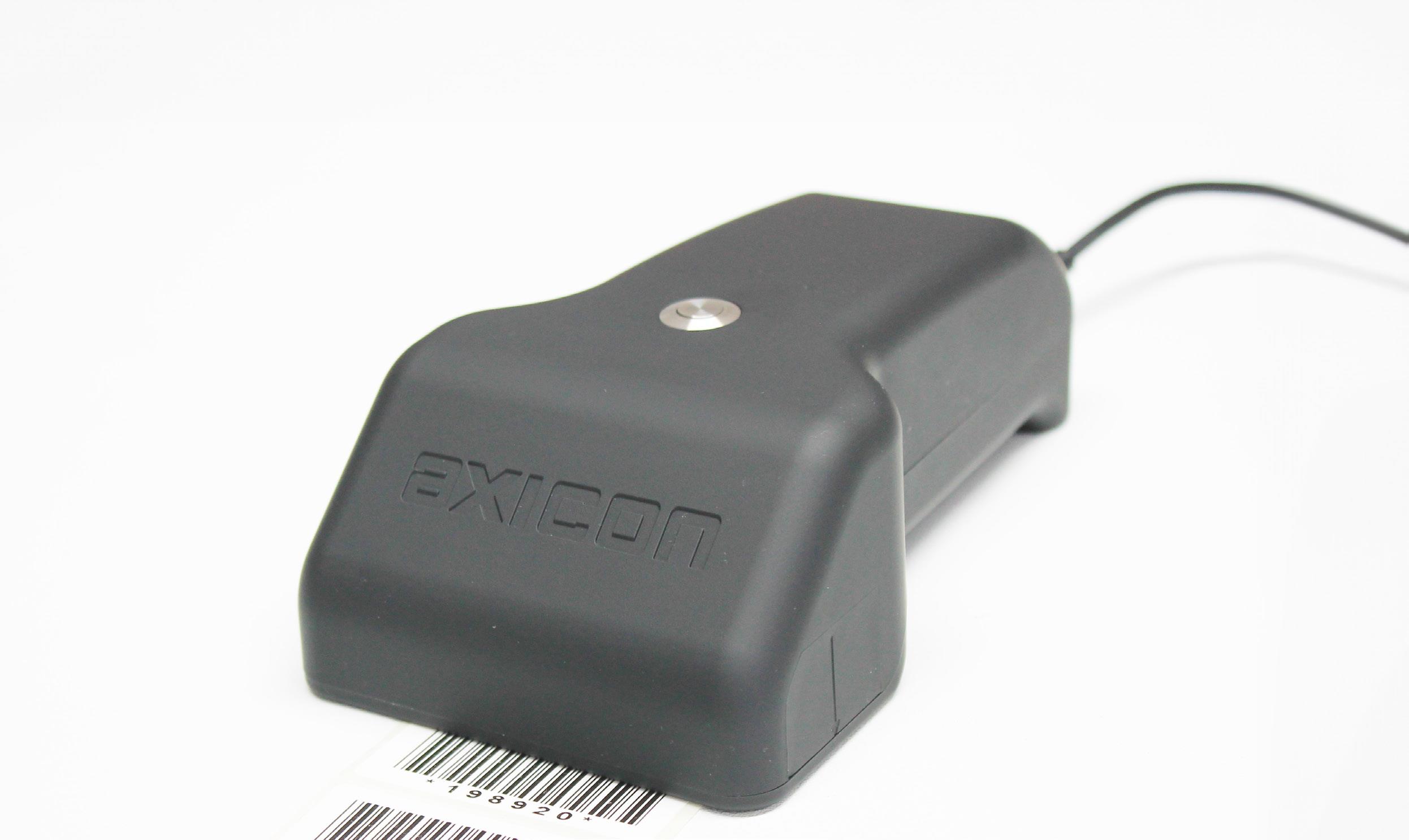

Axicon 15000 Series 1D/2D Barcode Verifiers
ISO/IEC-compliant verification of both linear and 2D barcodes. Each linear symbol is analysed automatically using ten scans through the barcode height, as specified by ISO/IEC 15426-1. Each barcode can be verified at any orientation so using the Axicon 15000 series verifiers requires no special expertise.
The software enables symbology auto-discrimination, automatic variable aperture, scan saving and loading, and display of x-dimension and magnification. The data content of each symbol can also be analysed using optional plugins for the software, which is available in five languages.
Traceability features include the ability to save raw data files which can also be used for remote diagnostic support. The software is available free of charge, and continually updated to ensure it meets the latest requirements of the relevant ISO/IEC standards, and other applications.
Connectivity System Requirements
USB2 PC running any currently supported version of Microsoft Windows.
Axicon 15200 barcode verifier
Higher resolution for the smallest codes The field of view of 60mm x 45mm means that most retail point of sale linear barcodes can be verified as well as those used on small healthcare trade items. 60mm x 45mm field of view Smallest x-dimension of 0.150 mm

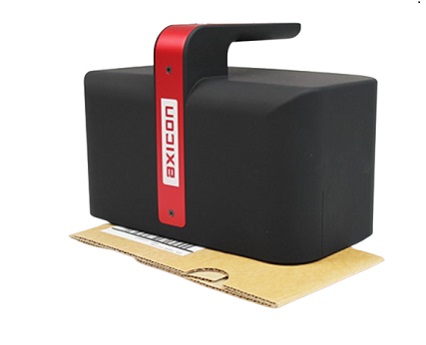

Axicon 15500 barcode verifier
Largest field of view for handheld 1D/2D verification The field of view - 95mm by 70mm - is the world’s largest on a handheld linear and 2D barcode verifier. The size allows for even larger and multiple codes. 95mm x 70mm field of view Smallest x-dimension of 0.200 mm

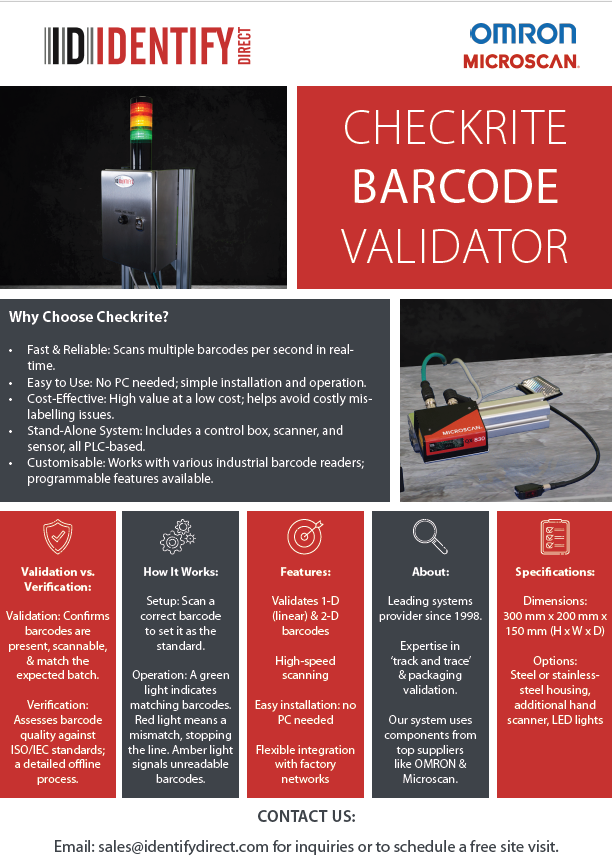

Barcode Validation Systems
Checkrite validators are stand-alone systems fitted to a production line and comprise a control box, a scanner and a sensor. They are PLC (programmable logic controller) based systems that can provide a visual indication of the validity of a barcode, as well as the ability to halt the line and display a red alarm if an incorrect barcode is scanned.
The latest Checkrite will scan several barcoded products every second. It can be integrated with a wide range of high speed industrial barcode readers and can be customised to suit individual requirements, with extra programmable features.
Omron V450-H Ultra-Rugged Handheld Scanner
• Simple Application Configuration via WebLinkPC
• Point-and-shoot decode performance and minimal workflow disruption
• Withstands multiple drops from 8’ and 5000 tumbles
• Rated dust proof and spray proof to IP67
• Industry-Leading DPM Decoding Performance with Omron’s
X-Mode Imaging Technology
• Wired or Wireless Communication
Zebra DS8108-SR7U2100AZW 2D Barcode Scanner
Datalogic PowerScan PD9630 Barcode Scanner
FEATURES
• Snappy omnidirectional reading from contact to over 2.0 m / 6.5 ft
• Datalogic’s new instinctive ‘frame’ aimer
• Water and Particulate Sealing Rating: IP65 and IP67
• 10 million trigger hits
• White light illumination
• Datalogic’s 3GL™ (3 Green Lights) technology and loud beeper for good-read feedback
• Datalogic’s Motionix™ motion-sensing technology
• Ergonomic shape provides hours of tireless data collection for the user
• Supports 1D, stacked and 2D codes, postal codes and image capture
• EASEOFCARE Service Plans offer a wide range of service options to protect your
investment, ensuring maximum productivity and ROI.
Used with CAB-564 cable and Mount HLD-P096
Honeywell Voyager 1202g
Built on the platform of the world’s best-selling single-line laser scanner, Honeywell’s Voyager® 1202g delivers aggressive scan performance on virtually all linear bar codes, including poor quality and damaged codes. Updated object detection, and automatic in-stand detection and configuration enable class-leading presentation scanning that maximizes throughput. Superior wireless scan performance matched with a reliable design combine to provide a versatile linear scanning solution suitable for a wide variety of applications.
Honeywell CF4680 2D Imager Module
Honeywell’s CF4680 2D Imager Module for Customer-Facing Designs is the next generation complete, self-contained 1D and 2D barcode scanning solution with the latest global shutter sensor and Gen7 decoding algorithm. It provides a complete, self-contained 1D and 2D barcode scanning solution, whether decoding mobile phone screens or paper.
Honeywell N660X Series 2D Ultra Slim Scan Engine
As the next-generation flagship product, the N660X Series utilizes the latest Honeywell decoding and imaging technology. It is also a smart choice for enterprise mobility, tablet, sled and wearable device makers who do not want to compromise thermal management, power consumption, peak current control and EMI for enhanced 2D scanning performance.

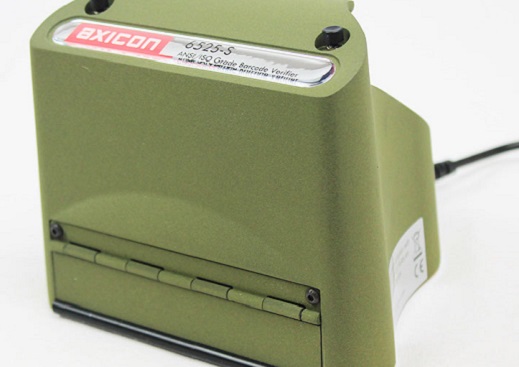

Axicon 6500 Series Barcode Verifiers
Axicon 7100-S Barcode Verifiers
About us
Established in 1998, Identify Direct has grown into one of the UK’s most trusted and recognised specialists in barcode technology, laser scanners, and advanced scanning solutions. Over the past two decades, we have dedicated ourselves to providing businesses across a wide range of industries with reliable, innovative, and cost-effective systems designed to improve efficiency, accuracy, and productivity. Our long-standing reputation has been built on not only the quality of the products we supply but also on the knowledge, dedication, and customer-focused approach that defines our team.
With more than 20 years of experience in developing, configuring, and installing barcode systems, our company has accumulated an exceptional level of technical expertise. This expertise allows us to confidently advise customers on the most suitable solutions for their requirements—whether they need equipment for high-volume industrial operations, retail environments, logistics and warehousing, healthcare, or other specialist sectors. We understand that every client has unique needs, which is why we prioritise careful consultation and tailored recommendations. To support this, we supply products from some of the world’s most respected brands in the scanning industry, including Datalogic, Omron, Honeywell, Zebra, and Axicon. By partnering with these globally recognised manufacturers, we ensure that our customers always benefit from the highest levels of performance, innovation, and reliability.
Over the years, Identify Direct has refined its skills not only in product supply but also in project planning, system integration, and ongoing maintenance. Our installation projects are carried out by a team of highly qualified barcode specialists who bring technical precision and a customer-oriented mindset to every job. They work closely with clients to fully understand operational requirements before implementing a solution that delivers long-term value. Whether a customer requires a straightforward single-scanner setup or a large-scale, fully integrated scanning infrastructure, our team is well equipped to handle projects of all sizes and complexities.
Our product range reflects the diversity of modern business demands. We provide smart cameras for advanced image capture, high-speed laser scanners, durable handheld barcode scanners, imager scanners with multi-code reading capability, OEM scanners for embedded applications, verifiers to ensure compliance and accuracy, as well as a wide selection of accessories to complement and enhance performance. Each product undergoes rigorous testing to meet our high standards and the expectations of our clients, ensuring smooth operations and minimal downtime.
Since our foundation, we have consistently received positive feedback and praise from customers throughout the UK. Clients highlight not only the performance and durability of our solutions but also the quality of our technical support, recalibration services, and bespoke systems tailored to specific challenges. We believe that strong customer relationships are at the heart of our success, and we strive to maintain these by delivering dependable service long after installation.
At Identify Direct, we take immense pride in our ability to go beyond customer expectations. Our mission is to provide more than just products—we deliver partnerships, long-term support, and innovative approaches that help our clients achieve measurable improvements in efficiency and accuracy. Looking ahead, we are committed to expanding our services nationwide, continuing to introduce new technologies, and further developing our expertise to meet the ever-changing demands of the industries we serve.
We encourage potential clients to get in touch with our experienced team today to discuss their requirements and discover how our solutions can deliver lasting value.
