Company details for:
Forwessun
Quick Links:
Products / Services
Test Fixtures
Agilent 3070
Teradyne TS12x / 228x
Teradyne 18xx
Teradyne Spectrum
JOT Handler
Functional
Backplane
Top and bottom probing
High density, high node count fixtures
Wireless test fixtures
Fine pitch probing; X Probe, 0.039 and 0.025 pitch probing

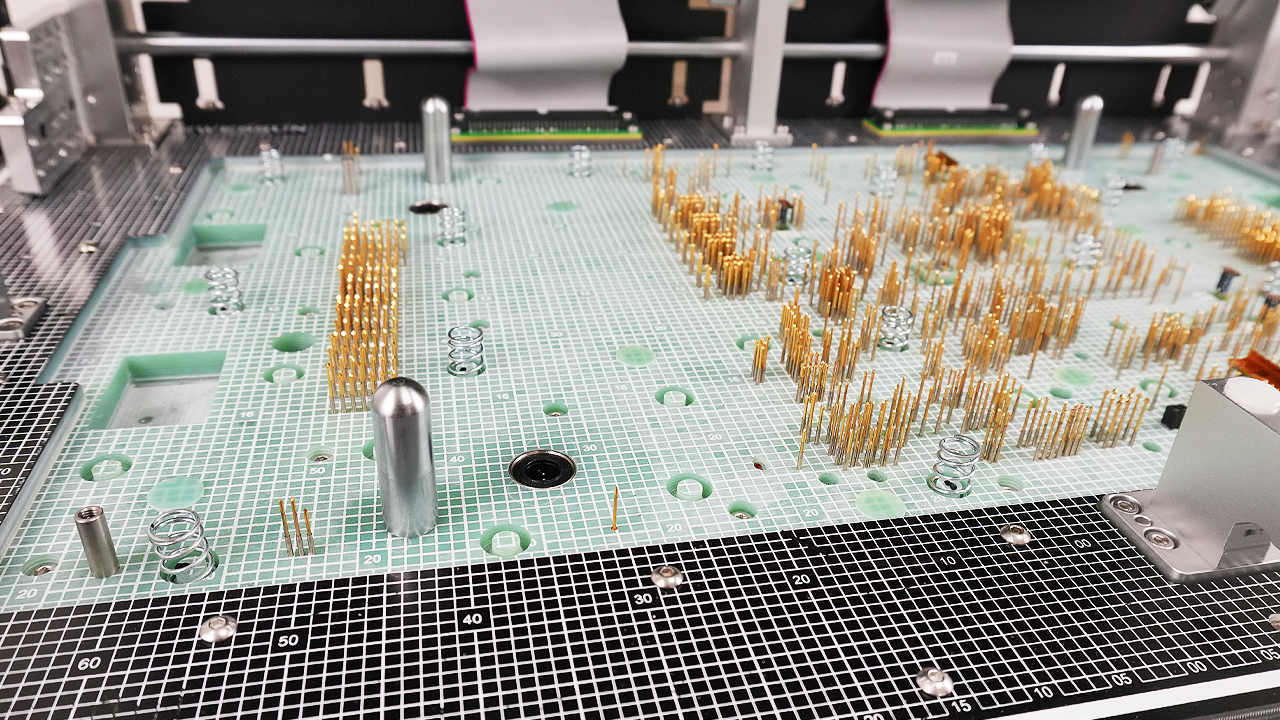

Guided probe plates
Zero flex plates; Routed plates to suit UUT profiles for maximum support and minimal board flexing
Connector Insertion, both Pneumatic and Manual insertion into a variety of connectors
RJ45 insertion with back bracing and loopback

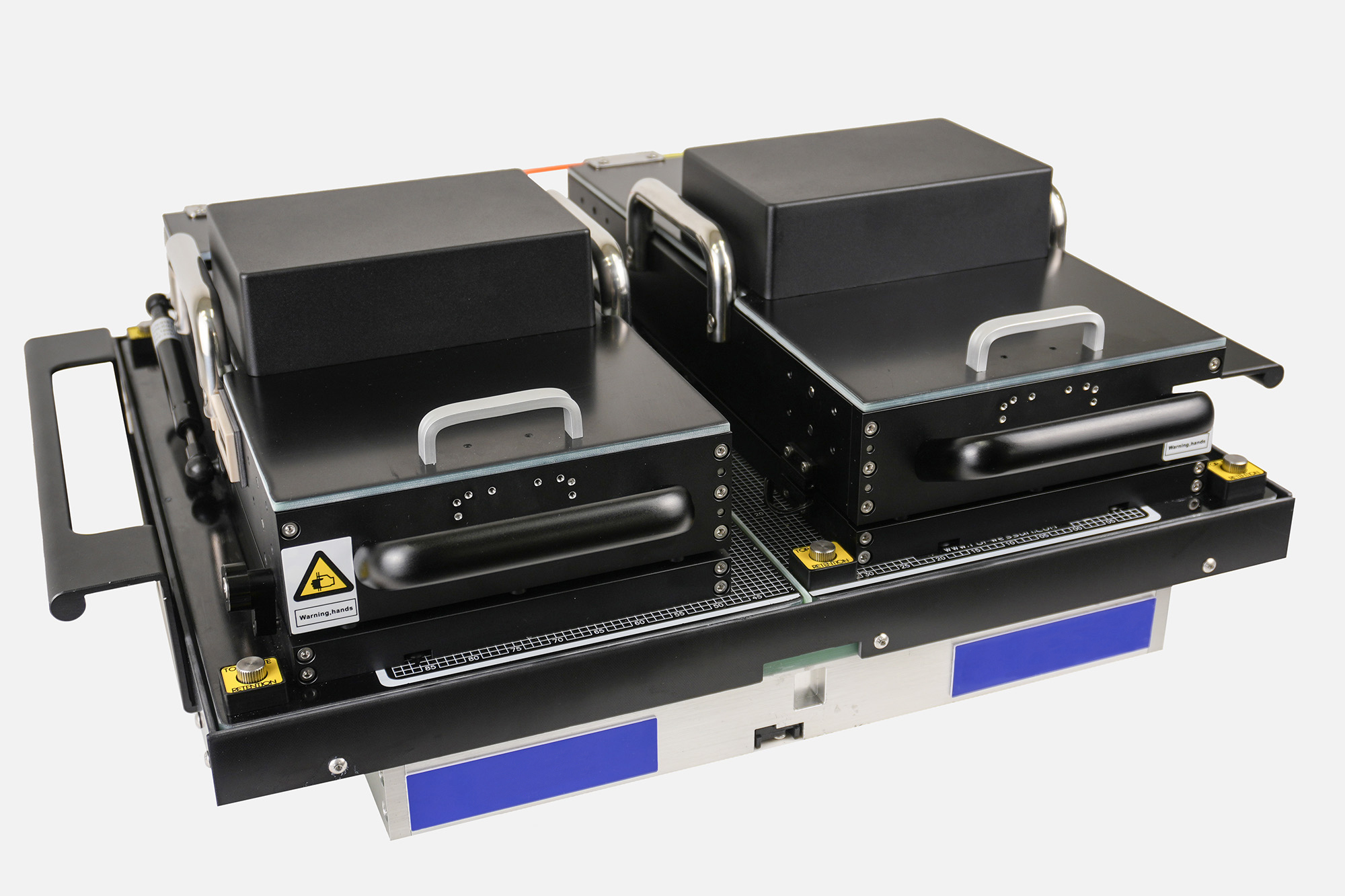

Dual Stage fixtures for in-circuit and functional test
Air cooling of test fixtures using fans or compressed air
We guarantee to hit within 9thou of the centre of each test pad.
Forwessun provides a G10 mask with every fixture which can be used to verify test fixture accuracy.

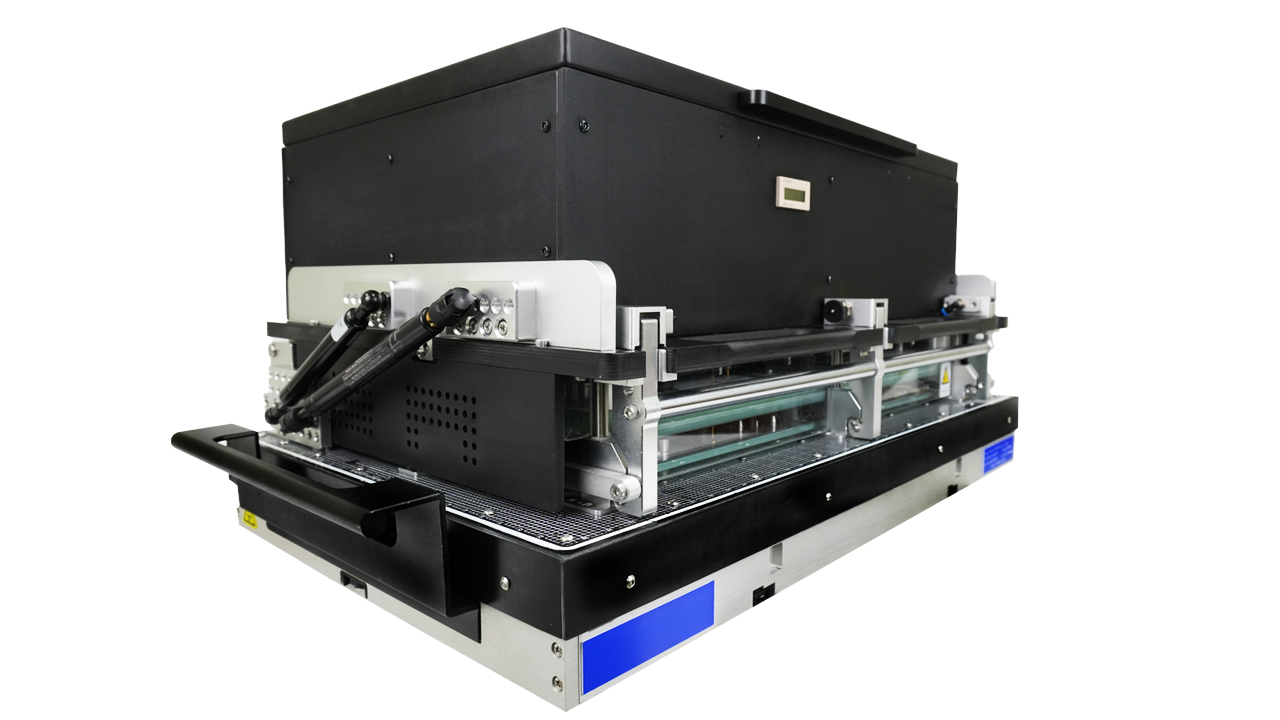

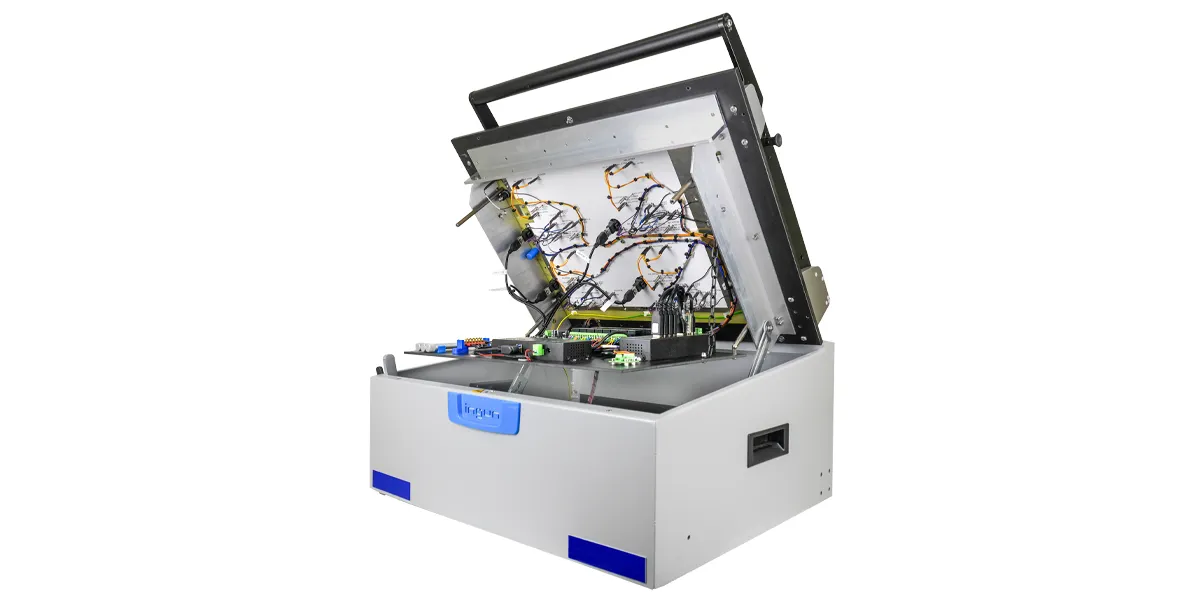

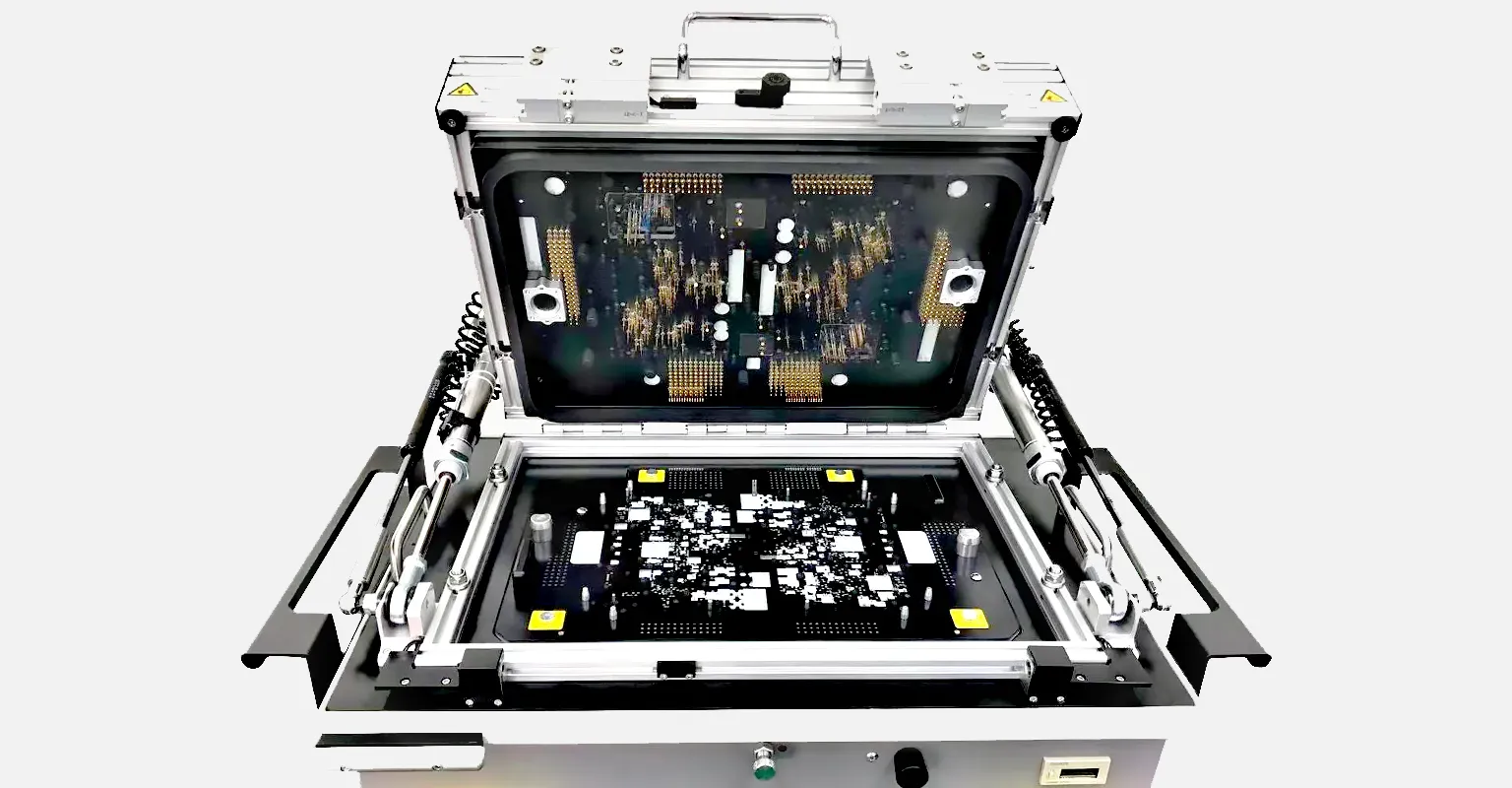

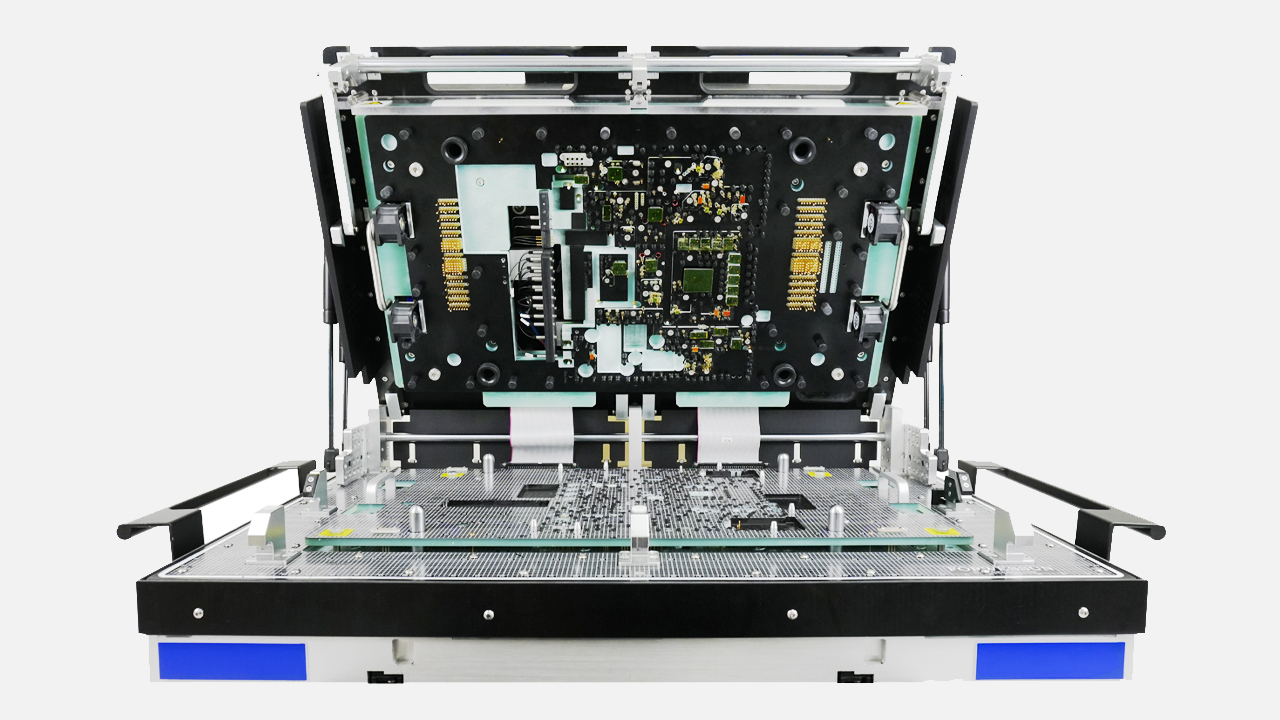

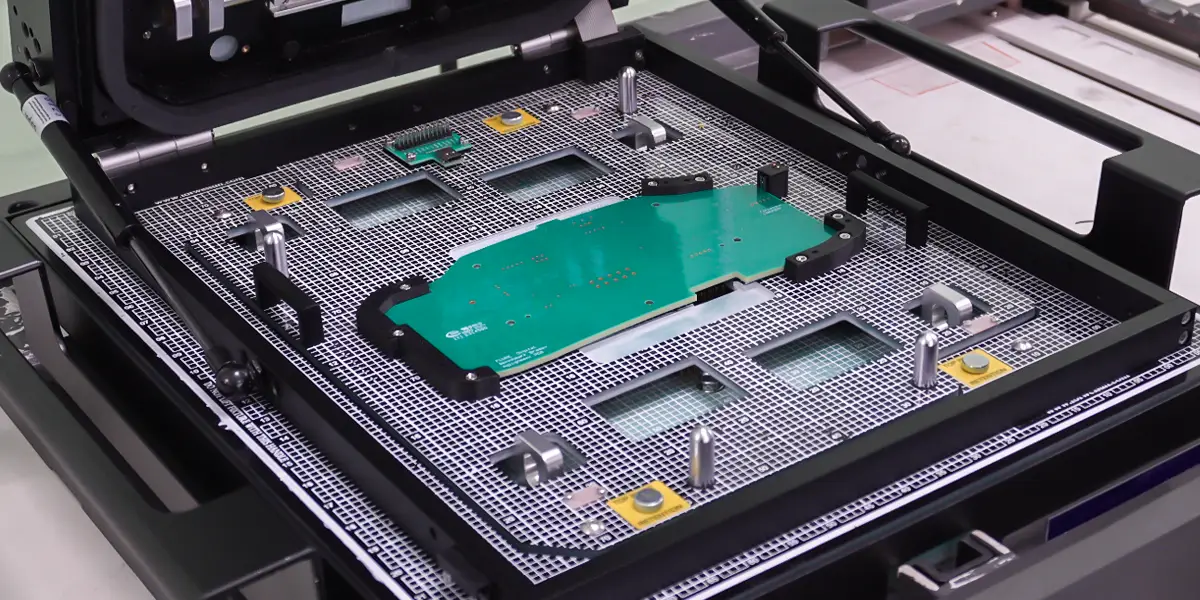

In-Circuit Test Fixtures
At Forwessun we support, supply and manufacture In-Circuit Test Fixtures for a range of Test Systems. We regularly build fixtures that are supported on HP3070 / Agilent / Keysight, GenRad and Teradyne systems. We also have a range of options available for Standard and In-Line fixtures, to match your testing requirements, click now to see all customisations available. All of our ICT Test Fixtures are designed to ensure the highest level of accuracy and efficiency, for our customers all over the world. Our test equipment can be custom-built to match your testing methods and high-volume environments.

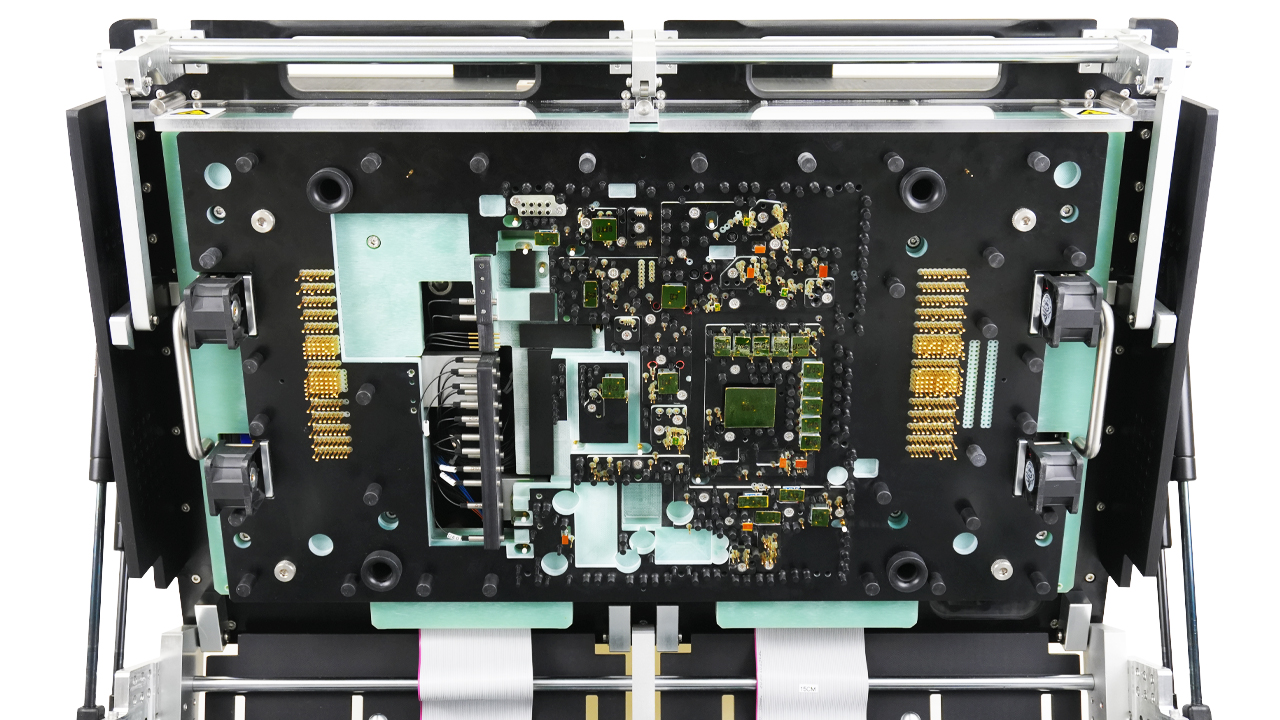

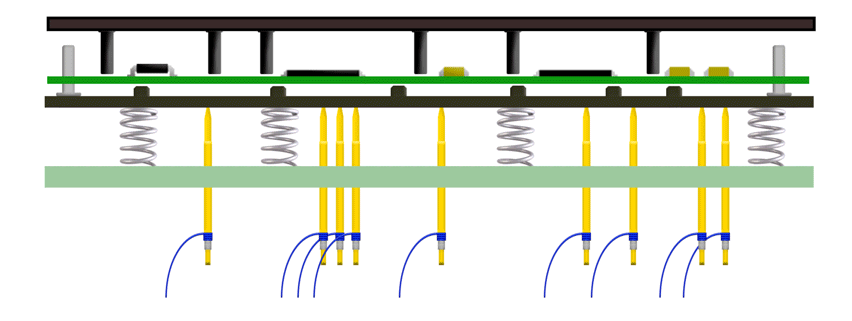

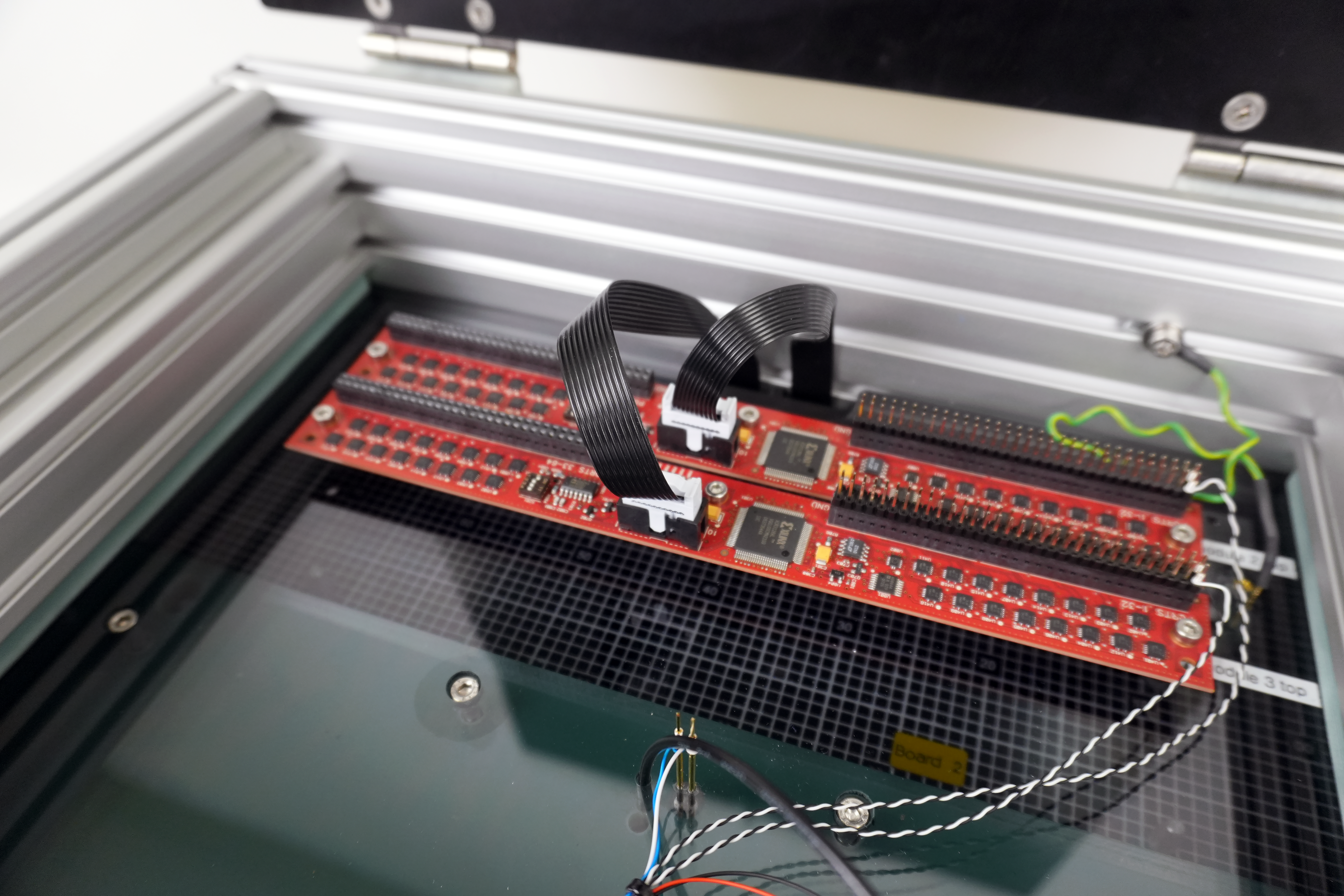

Wireless In Circuit Test Fixtures
We also have vast experience in designing Wireless In-Circuit Test (ICT) Fixtures. Our fixtures are tailored to the unique needs of our customers to further enhance all aspects of the test process. Our commitment to excellence and focus on quality and reliability sets us apart in the industry. With a rich history spanning over 50 years, Forwessun continues to deliver cutting-edge software and fixture solutions for leading In-Circuit test platforms.
Functional Test Fixtures
Forwessun specialises in designing and manufacturing custom functional test fixtures to ensure your printed circuit boards (PCBs) operate as intended. Our functional testing process applies full operational power to the PCB assembly (PCBA), enabling thorough verification under real-world conditions. This testing is critical for identifying system-level failures and operational faults that may not be detected during in-circuit testing.
We provide fully customised fixtures tailored to your unique requirements, ensuring precise testing of every component’s functionality on the PCB. Whether you require fixtures built using the Ingun kit or a fully bespoke solution developed in-house, we have the expertise to deliver. With extensive experience in both hardware and software integration, we create comprehensive, fully integrated systems that seamlessly align with your production line.

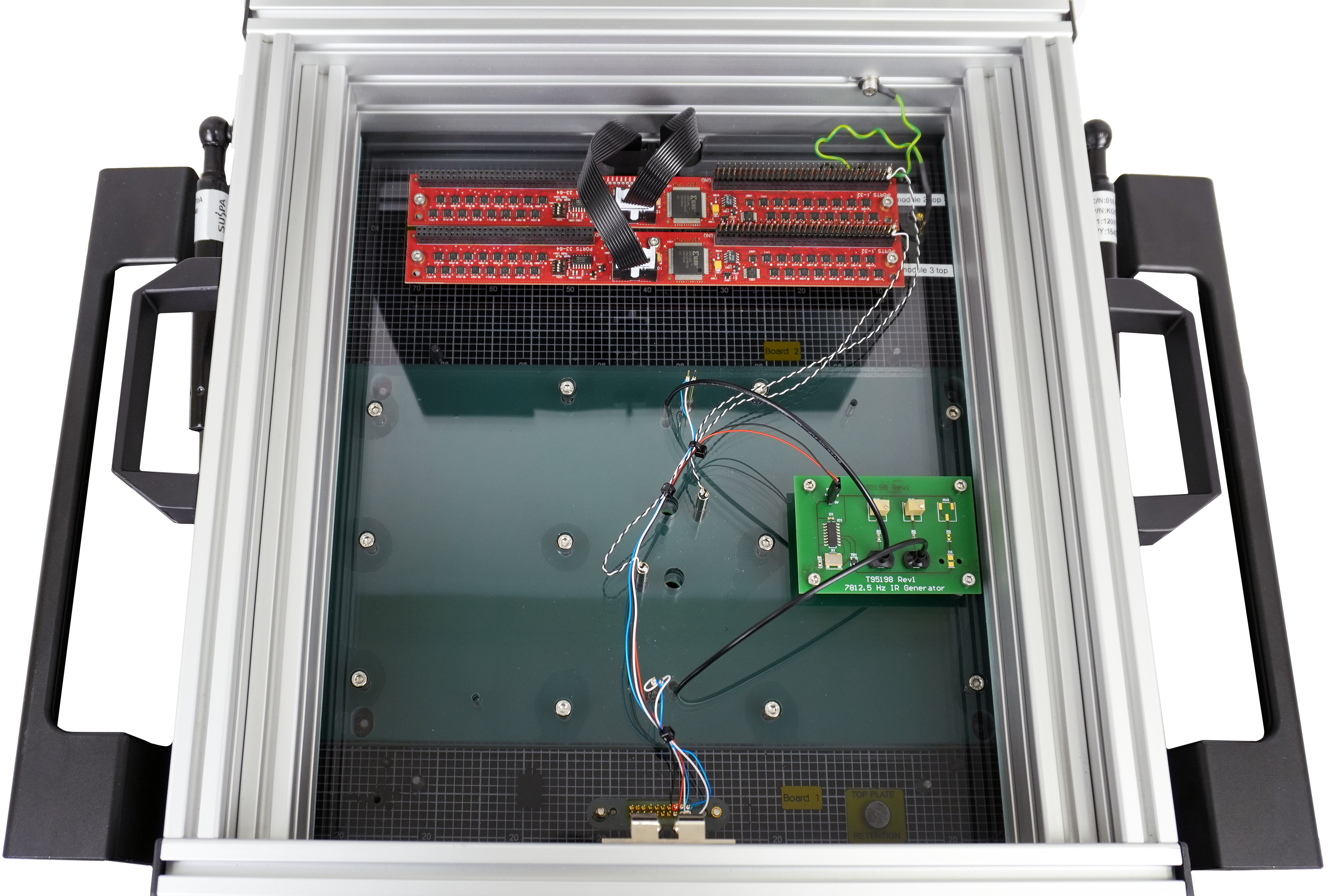

Wireless Test Fixtures
Wireless In-Circuit Test Fixtures at ForwessunAt Forwessun, we bring extensive expertise in designing and delivering wireless in-circuit test (ICT) fixtures tailored to the unique needs of various industries. While our primary focus has been on developing full and half-bank fixtures for the HP3070 system, we also provide bespoke solutions for other platforms, including GenRad, Teradyne, and SPEA systems.
Our commitment to innovation drives us to continuously improve our processes. For instance, we have successfully automated the generation of probe maps for our interface PCB CAD and developed routing priority instructions to enhance efficiency. Looking ahead, we are working on advanced features such as:
Detecting potential issues with ICT designs and providing actionable solutions.
Identifying and resolving interface PCB design challenges.
Recommending methods to improve signal fidelity, such as isolating RCVA signals.
With a focus on precision, reliability, and cutting-edge technology, Forwessun is your trusted partner for wireless ICT fixtures that meet the highest industry standards.
In Circuit Test System Services
At Forwessun, we are proud to offer global services and support for a wide range of In-Circuit Test (ICT) Systems. We provide rigorously tested, refurbished systems for sale at a fraction of the original price.

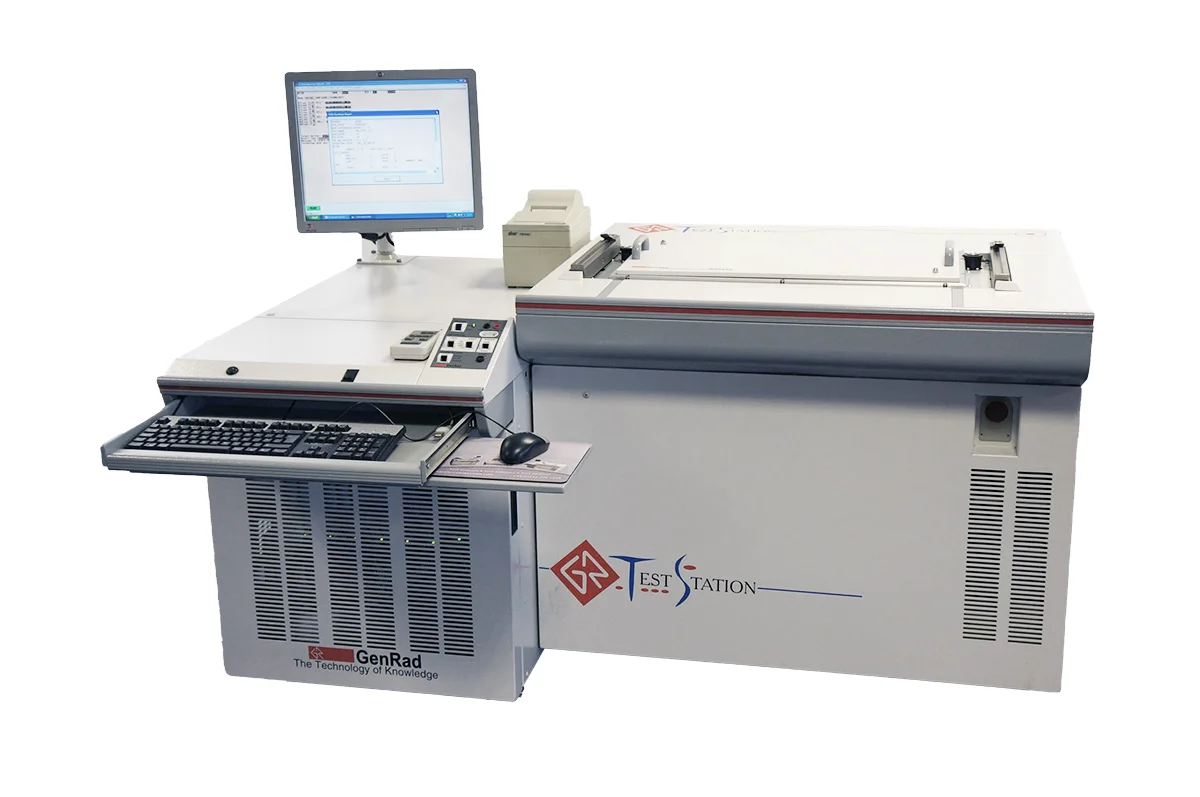

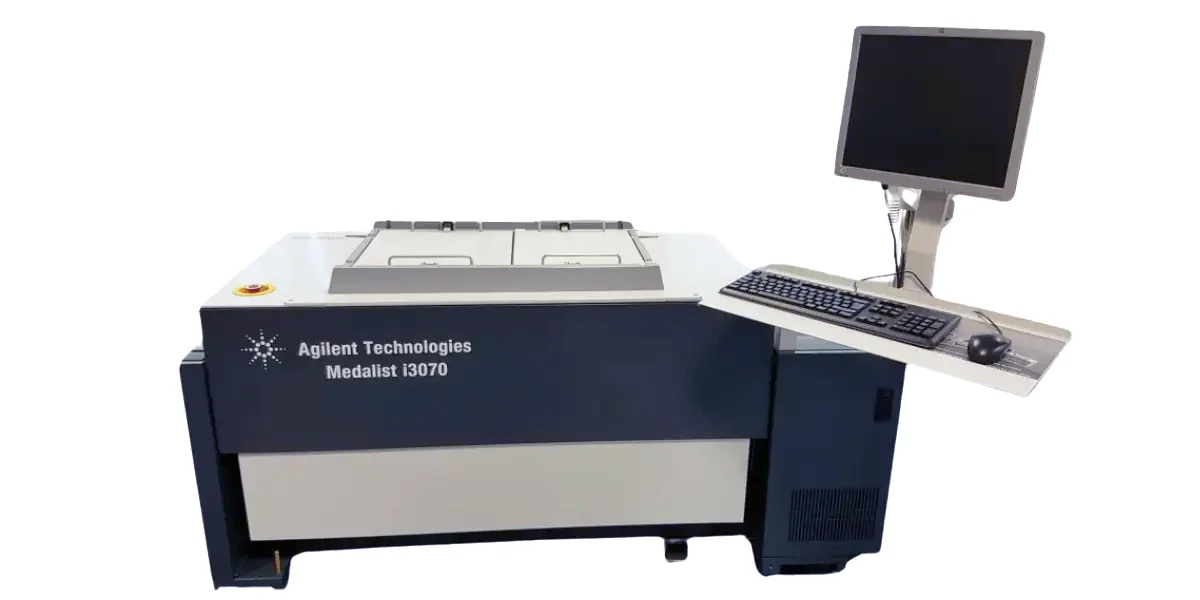

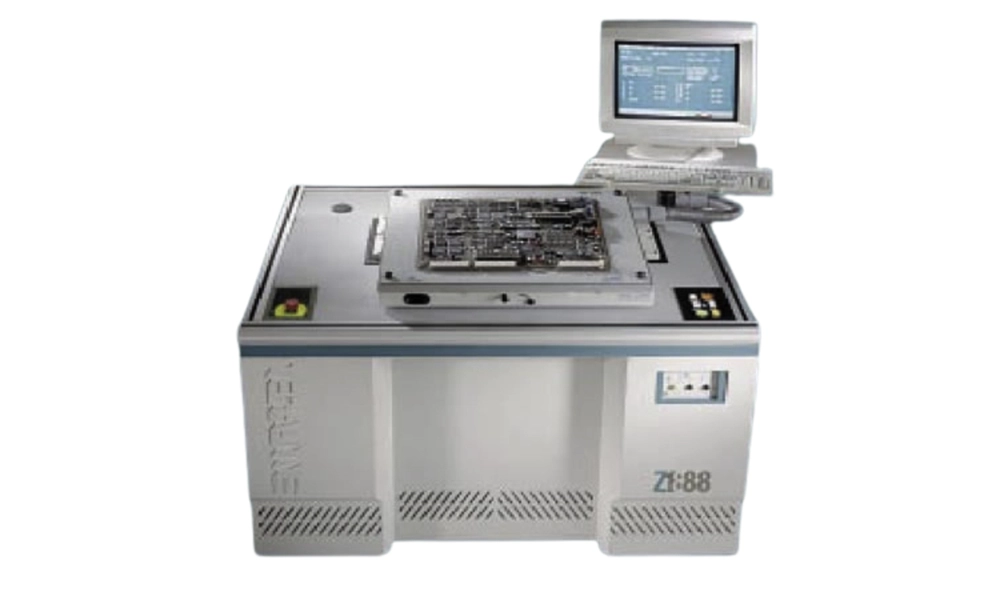

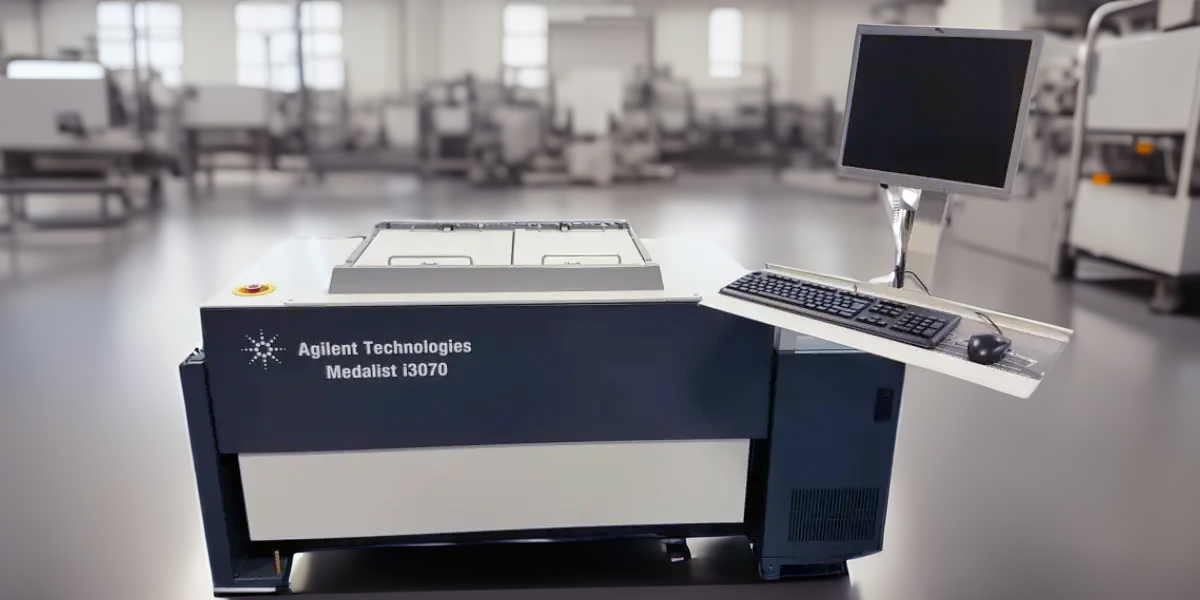

Refurbished In Circuit Test Systems
We can support urgent capacity requirements. We are flexible and can provide short term system rental services to help you with your short-term capacity needs.
Our ICT systems are refurbished to the highest standard to look and perform as new.
Our refurbishment program involves the complete strip down of the system.
All metalwork is powder coat painted.
All consumable parts (fans, seals, filters, valves) are replaced with brand new.
All electronics are refurbished to a ‘like new’ condition.
Systems are calibrated prior to delivery with full certification provided.
All ICT systems are supplied with a 12 month warranty.
We are also able to offer service contracts for your ICT systems.
Test System Calibration
Calibrations can be performed at planned intervals agreeable to the customer and are performed following national calibration standards.
National standards are administered by NIST (National Institute of Standards and Technology) or other recognised national standards laboratories.
The equipment used by Forwessun is maintained by periodic calibrations by an external instrument calibration company, according to SR EN ISO/IEC 17025:2017
Full traceable certification is provided with all calibrations.
We have experienced engineers that can perform calibrations, based in the UK, Europe and Mexico.
We are also able to offer service contracts for your ICT systems.
Please get in contact for a quotation based on your specific requirements.
Test System Repairs
We can offer either a repair and return, or an exchange, depending on the urgency.
All repairs and exchanges come with a 60 day warranty.
We are also able to offer service contracts for your ICT systems.
Please get in contact for a quotation based on your specific requirements.

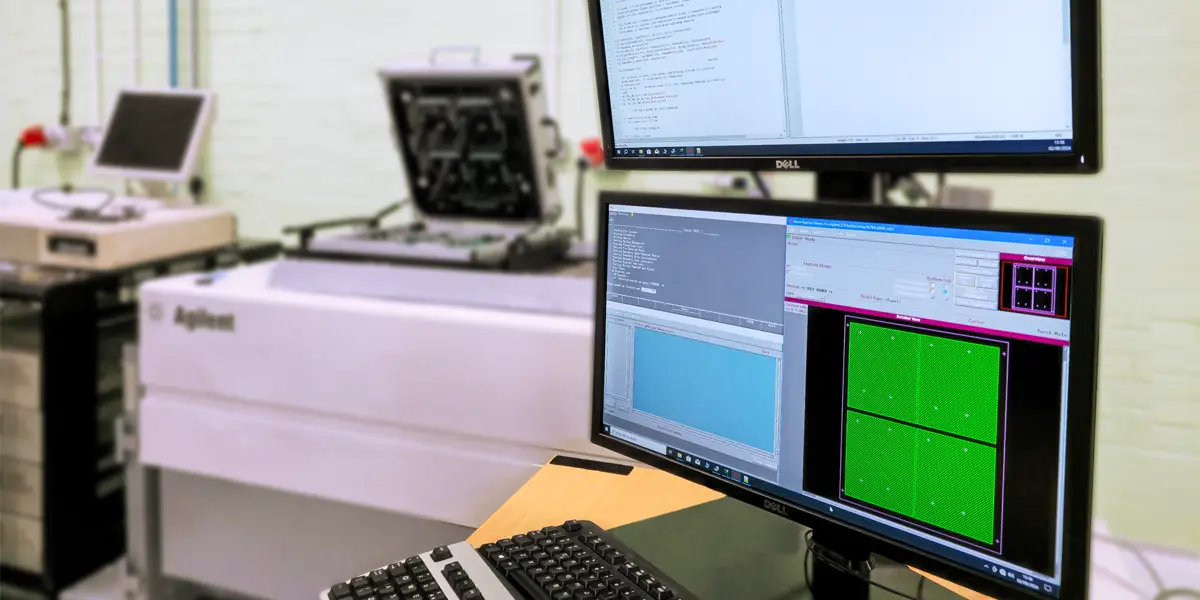

Test Software
Comprehensive Test Software Solutions at Forwessun
At Forwessun, we deliver advanced test software solutions designed to optimise your in-circuit and functional testing processes. Our expertise covers a wide range of test applications, ensuring seamless integration with your test systems and delivering exceptional performance. From BIST (Built-In Self-Test) to sophisticated JTAG implementation, our software solutions are fully customisable, enabling you to achieve reliable, efficient, and precise testing outcomes.
Our test software supports a variety of testing needs, including communication protocols, device programming, and digital and analogue test applications. It is fully compatible with our Turnkey Test Solutions, Test Fixture Building, and Test Systems, allowing us to provide integrated, end-to-end solutions tailored to your specific requirements.
Fully Integrated Solutions
Forwessun’s test software is developed in harmony with our Turnkey Solutions, Test Fixture Building, and Test Systems, ensuring all components work together seamlessly for efficient and reliable testing. Whether you need a solution for complex industrial applications or a tailored approach for unique testing environments, our software is designed to be robust, adaptable, and future-proof. Trust Forwessun to deliver software solutions that enhance your testing capabilities and drive operational excellence.

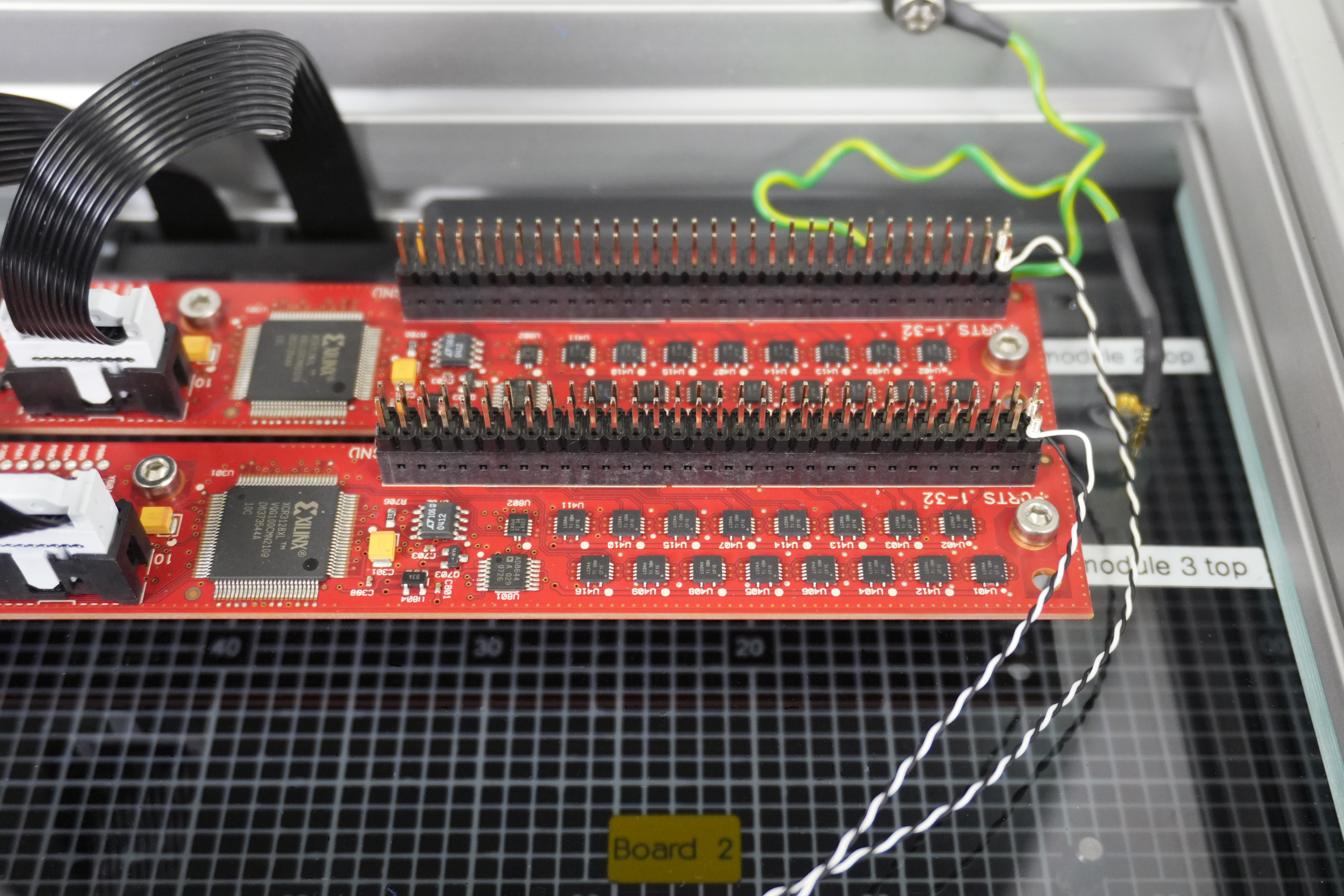

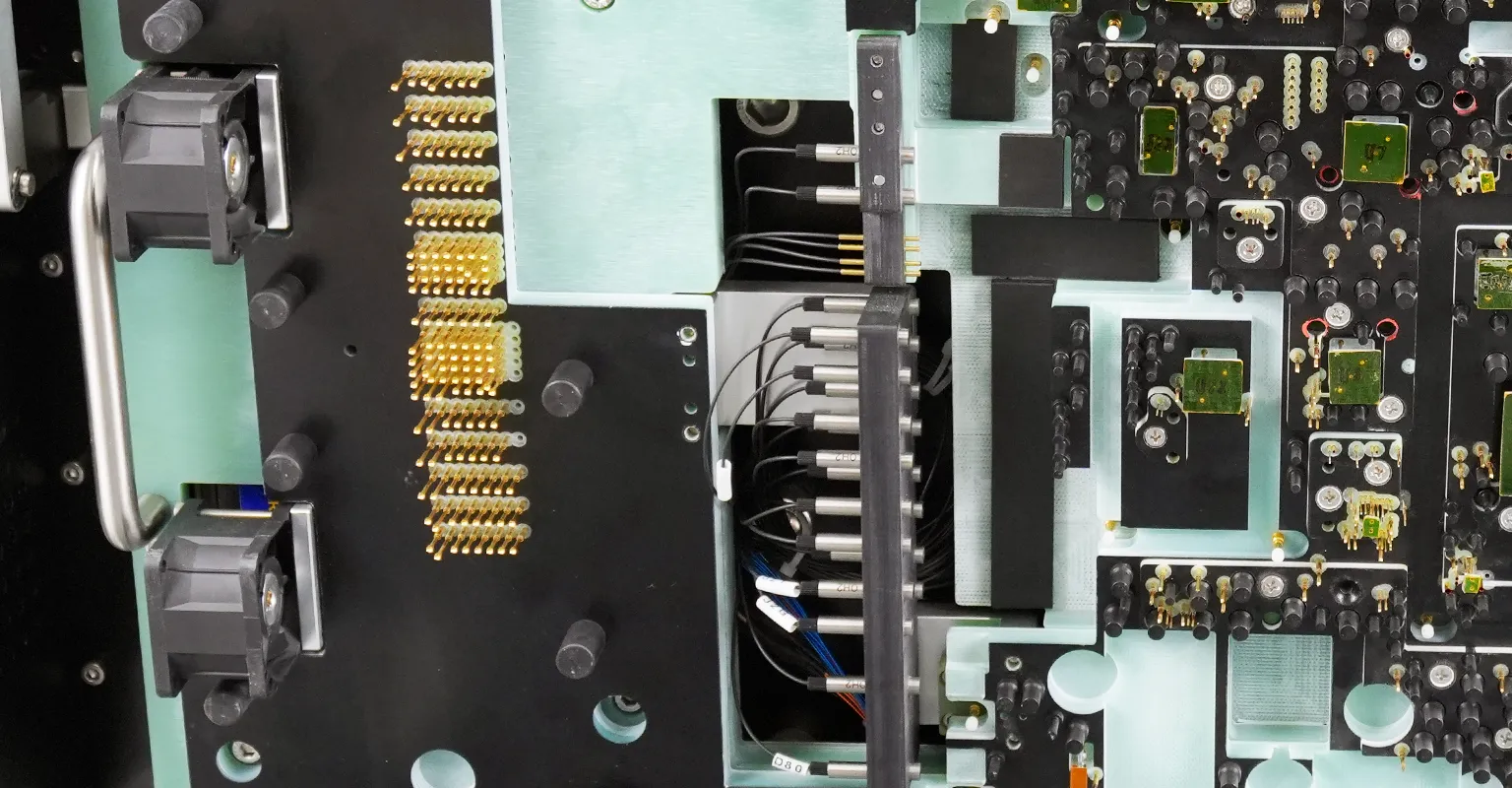

Connector Insertion & Loopback
In house Loopback PCB design & manufacture, including the latest high density, push fit connectors
Loopback hardware designed for ease of maintenance and replacement
Inclusive Vectorless testing
Purchase of Unwanted Automated Test Equipment
We can pay cash, or we can trade for new equipment, or our services.
Please get in touch; send us your surplus list.

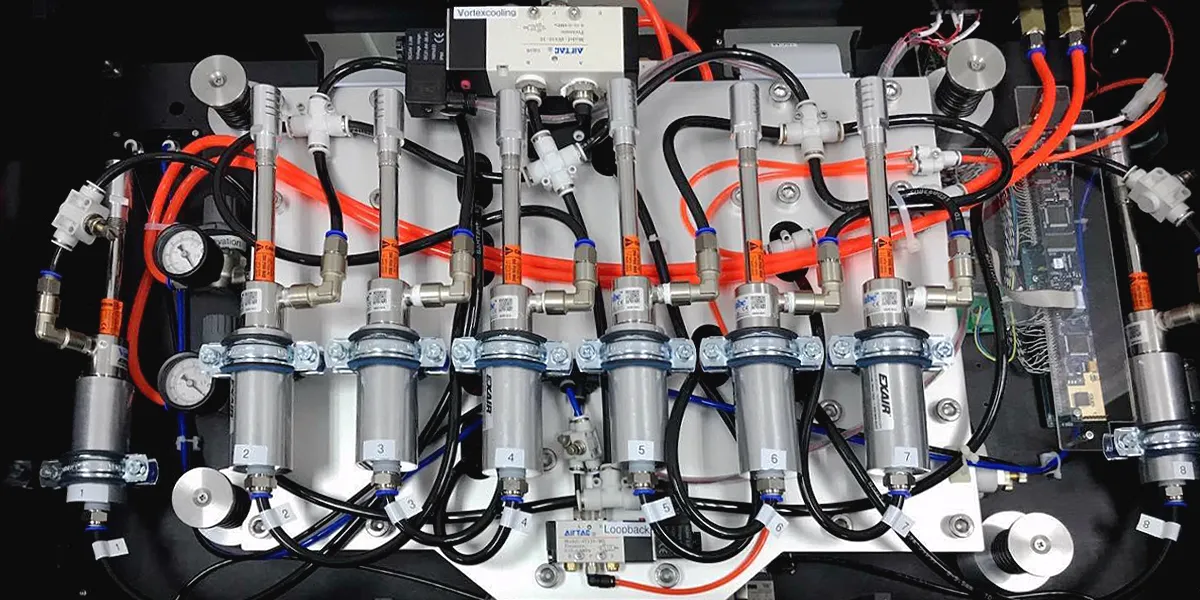

Vortex Cooling
In addition to traditional heatsink / fan and cross UUT cooling methods, component specific Vortex cooling can be fitted.

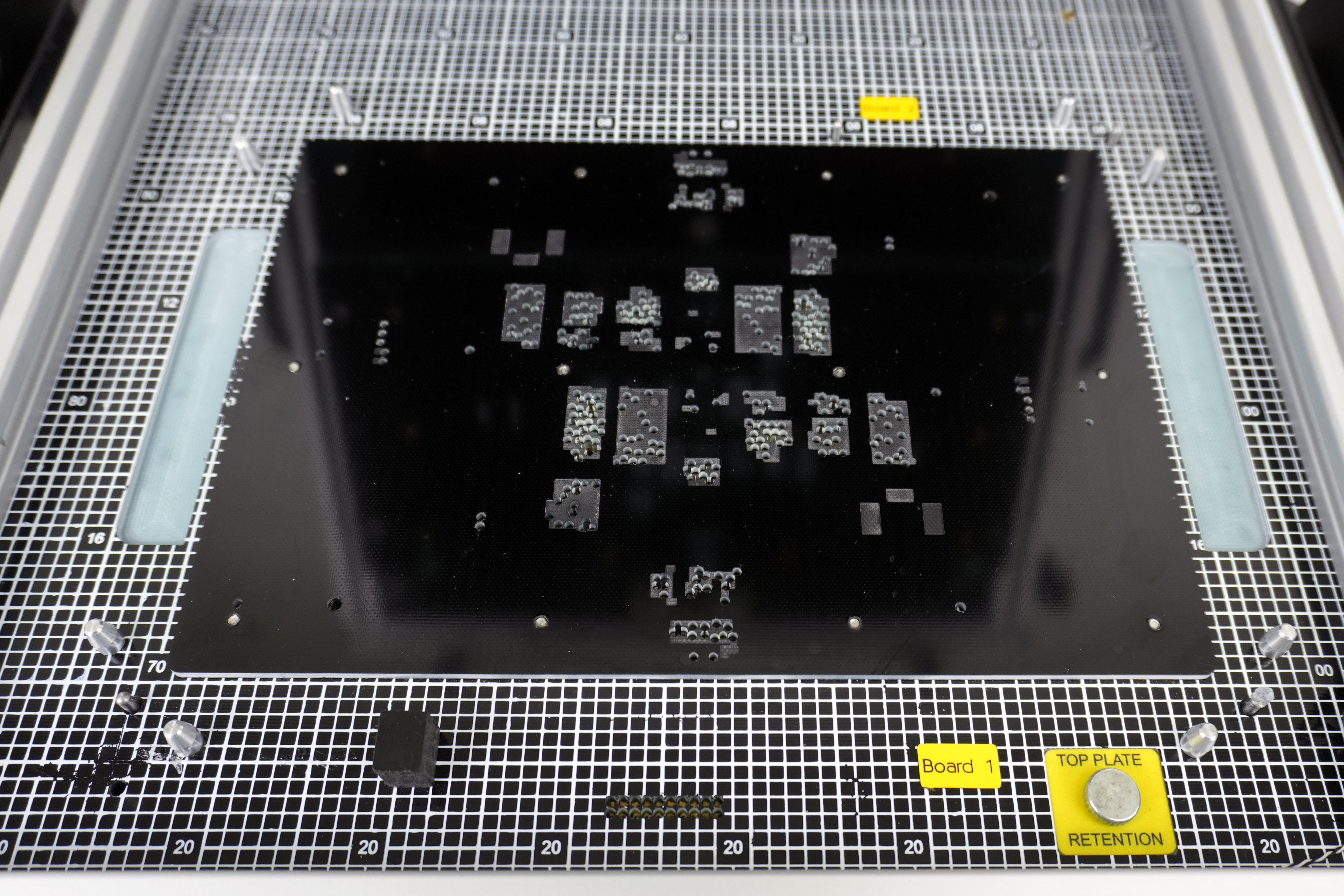

Fixture Accuracy & Custom Shorting PCB
Forwessun custom verification PCB’s can be fitted with UUT connectors to also check for Loopback test hardware alignment, including push fit connectors.

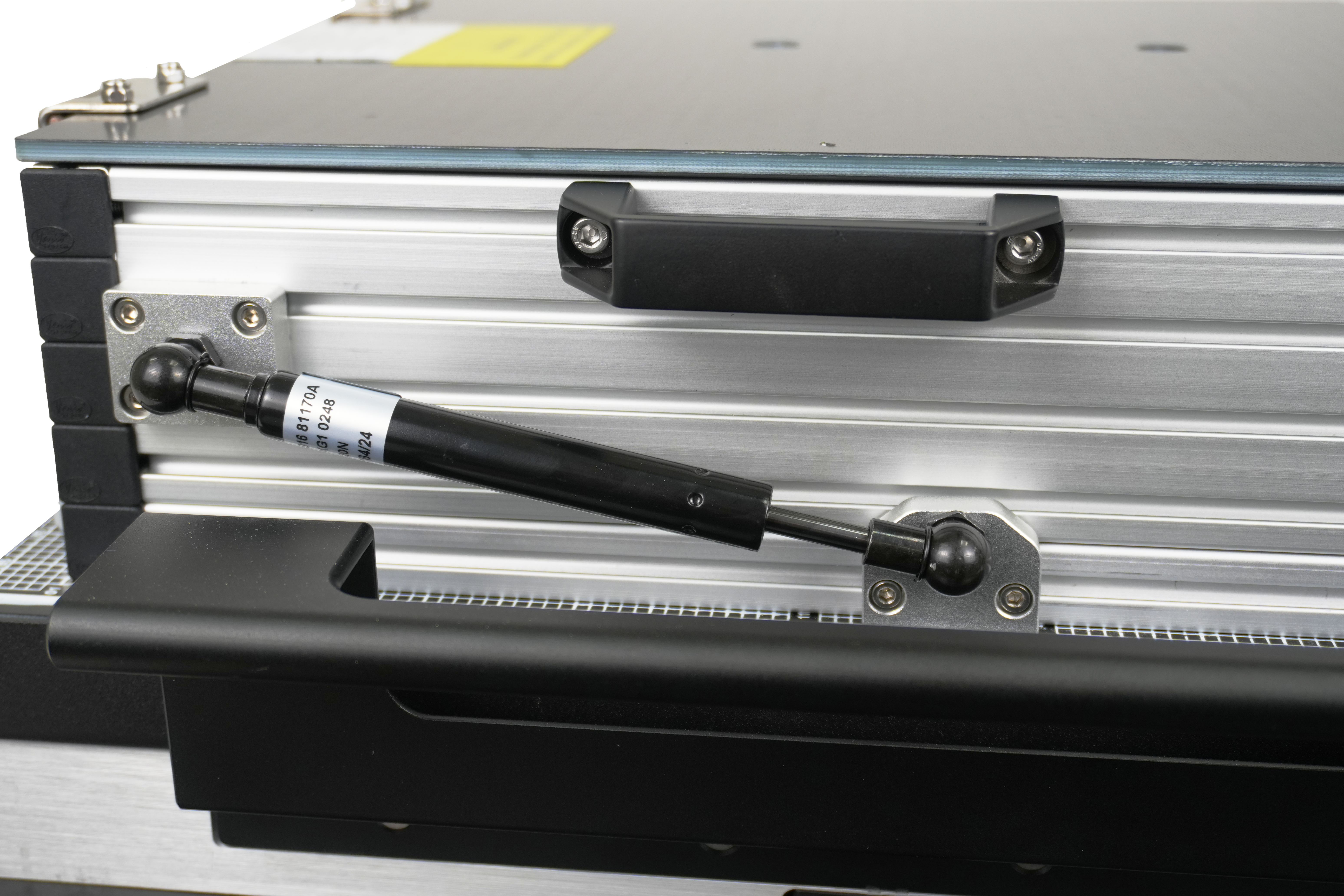

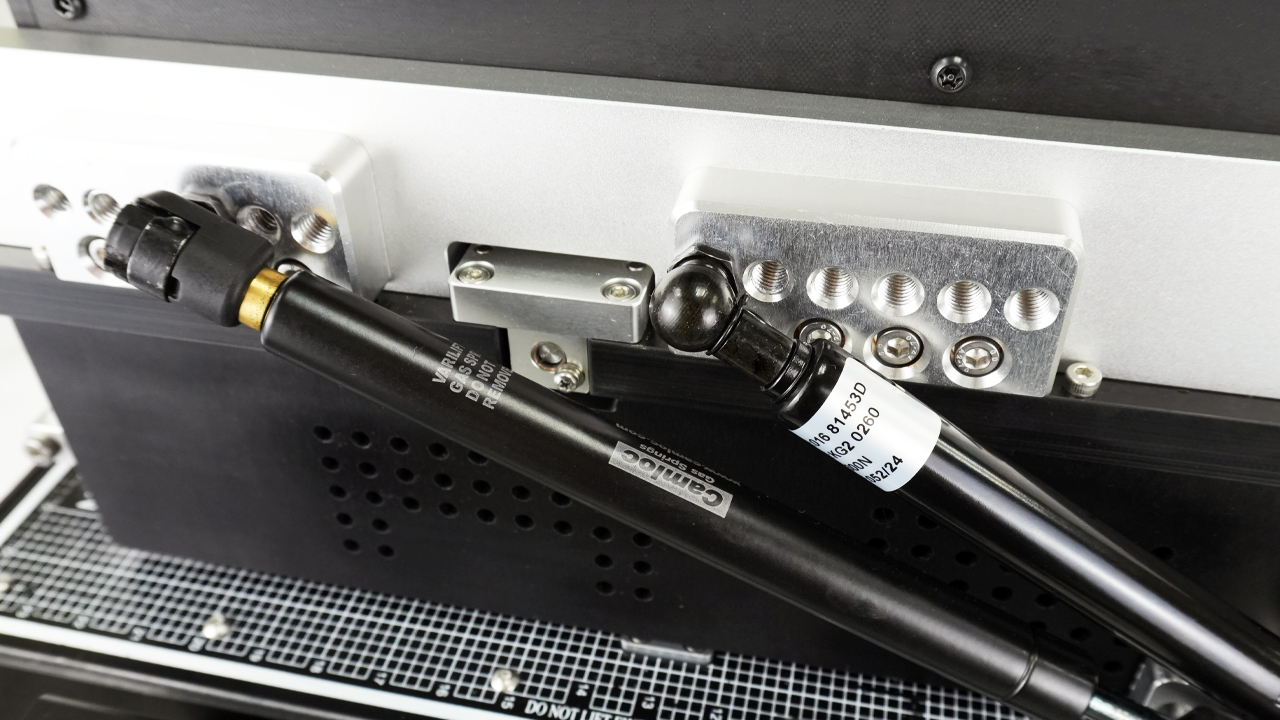

Auto Open & Close
Forwessun can provide Auto Open and Auto Closing Test Fixtures.

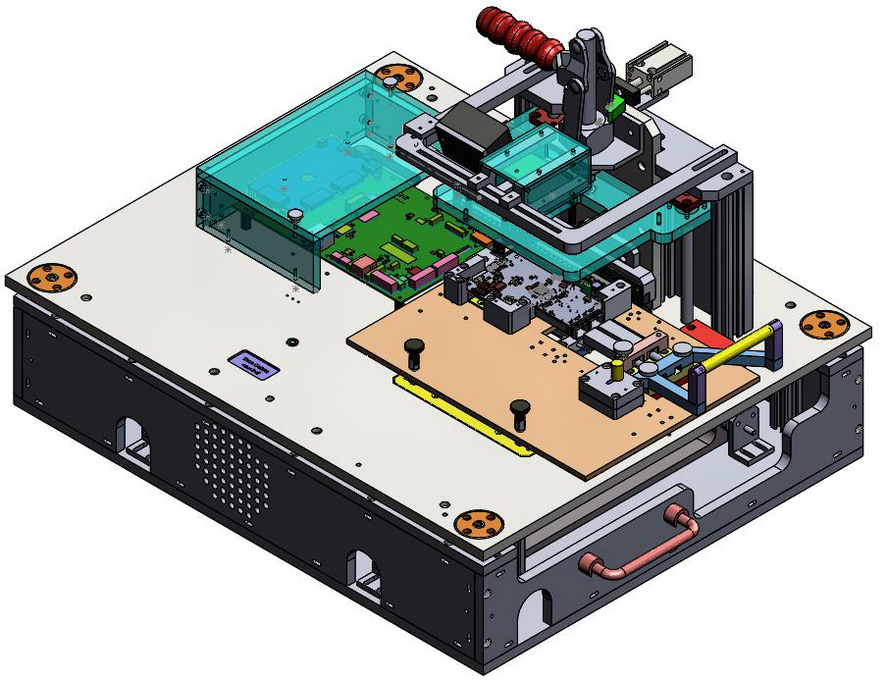

How We Design
Functional fixture features:
High volume capacity manufacture

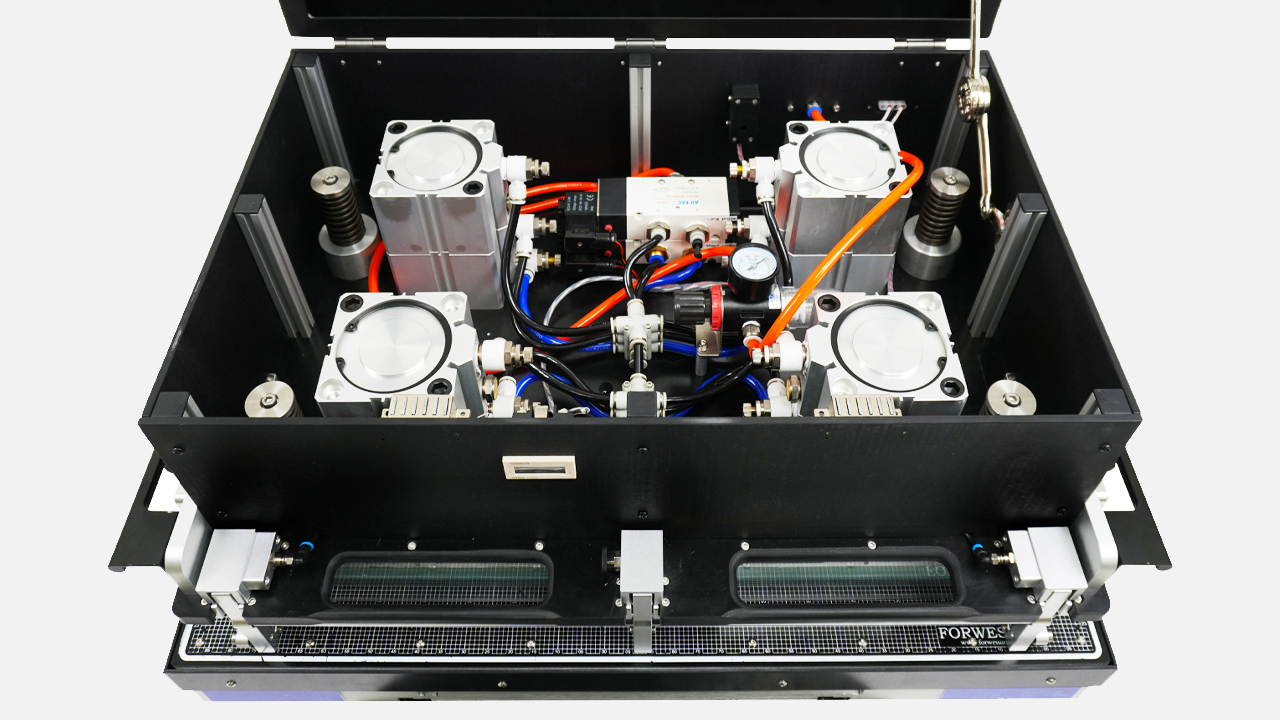

Vacuum and pneumatic actuation or mechanical
Low cost Go/No-go
Laptop / Netbook final assembly functional fixtures
Automotive unit test
RF functional test fixtures
HI-POT & HI−voltage fixtures
Multi-station jig fixtures
Through connector test
Automatic switch actuation
Mechanical fixture gates
Sacrificial PCA connector mounting for ease of maintenance and maximum up time

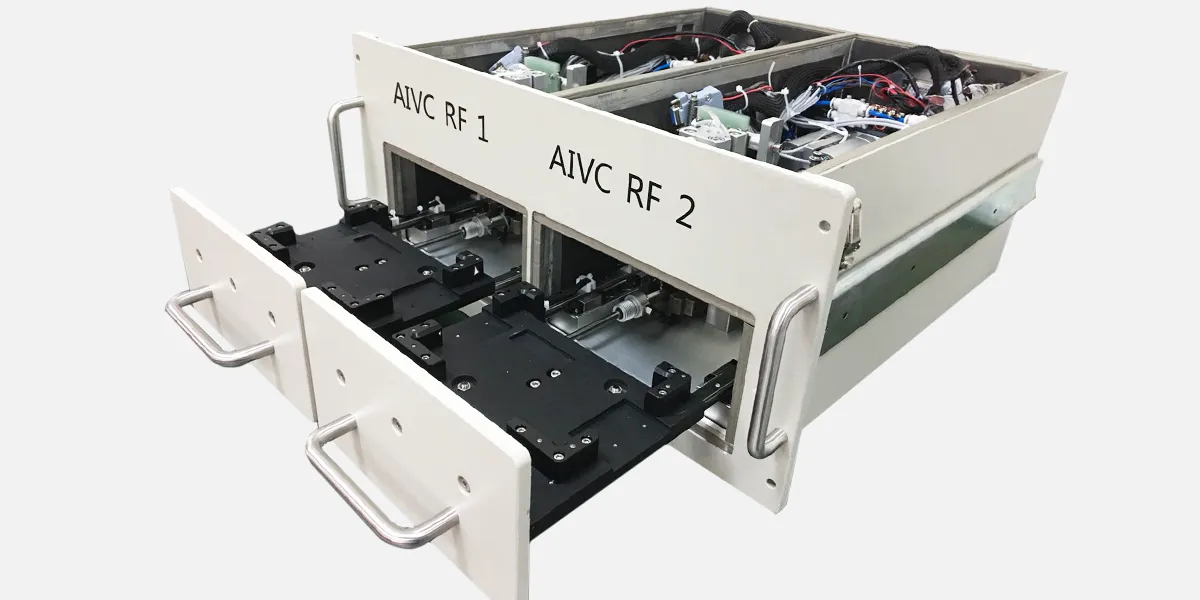

Radio Frequency (RF) Test Fixtures
RF shielded boxes / chambers are essential for reliably testing radio interfaces. They enable reliable and reproducible measurements when a shielded test environment is needed.
Small, Manually Actuated, Functional Test Jig designed to be installed into a customer supplied RF Shielded Box / Chamber.
Design For Test (DFT)
ICT checks each component on a PCB individually, delivering highly reliable results. It detects defects such as faulty, wrong or missing components, solder bridges and short circuits. While investing in this solution requires a larger initial upfront cost when compared to flying probe, the cost per unit is negligible (often less than £1) due to the swift test time (usually less than one minute).
The ICT method comprises a test fixture and program dedicated to the target test platform and unit under test (UUT). In order to optimise the effectiveness of the test, the circuit design and layout of the PCBA itself must be suitable for ICT. Therefore, design for test (DFT) is an integral stage of PCB realisation; without taking this phase into account, you will not be able to get the most from your test strategy.
Investing in an ICT solution can help your business to consistently deliver fully functional PCBs, on time and to specification. The time and money saved can be redirected back into other core aspects of your operation.
Device Programming
Our programmers are experienced with programming devices using test vectors and also programmers fitted inside the test fixtures to include STLINK, MPLAB, PEmicro Cyclone, FlashRunner, Segger etc. We can generate test vectors allowing us to program / verify SPI flash in Dual and Quad mode.
Test fixture hardware will be used to isolate the programming signals from tester interference, to ensure that the programming is as stable as possible and give you the fastest programming speed.

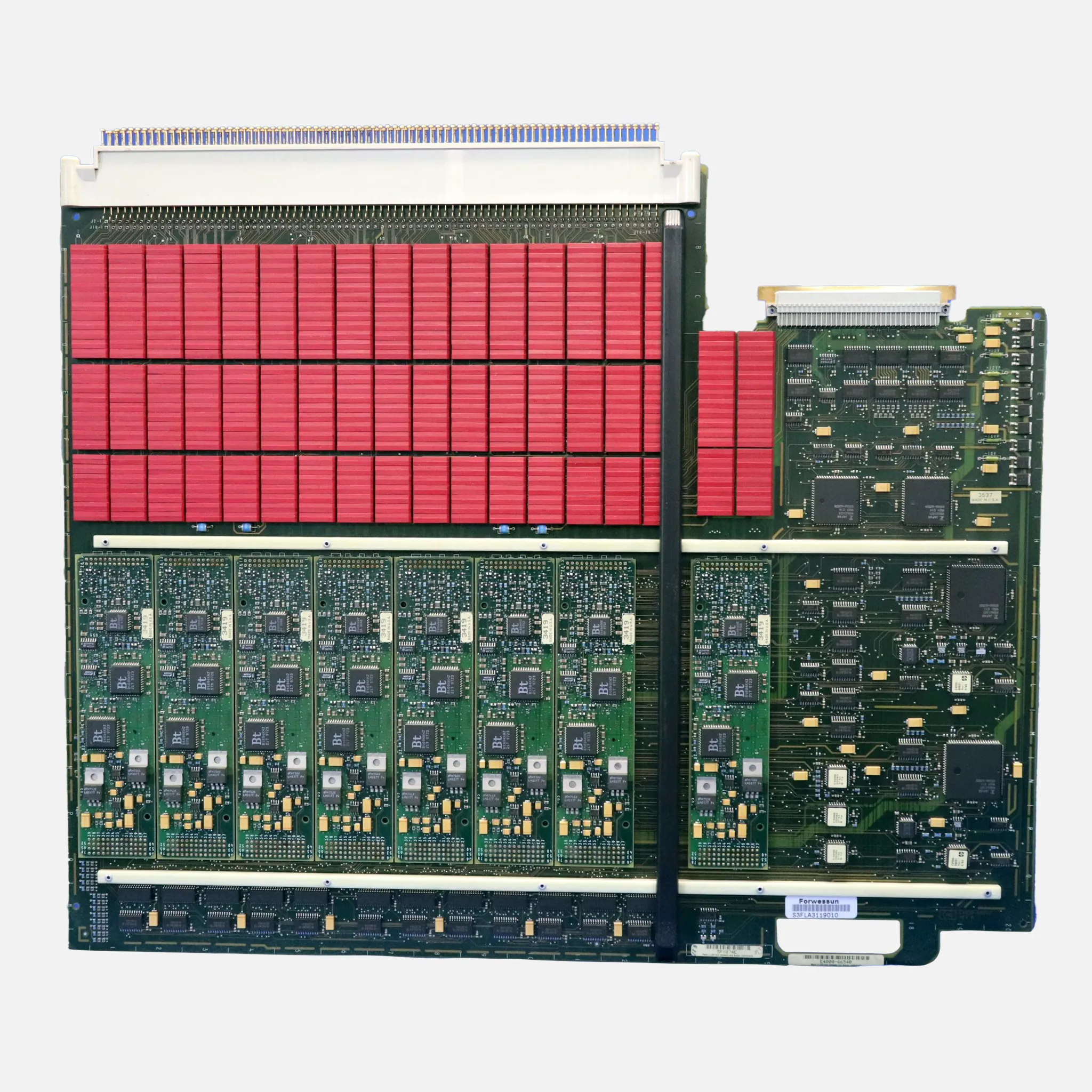

Parts For Sale
All module cards and power supplies are thoroughly soak tested and come with a 60 day warranty.
For consumable parts, Forwessun keep a healthy stock of all parts for Agilent, Teradyne and GenRad ICT machines.
We have close, long standing relationships with manufacturers and are able to pass on this quality to our customers.
Please see our parts listings in the clink below or get in contact for a quotation based on your specific parts requirements.
Strain Guage
Forwessun specialises in providing precision strain gauge solutions tailored to your specific needs. From custom testing and calibration to seamless integration, we ensure accurate and reliable strain measurement for a wide range of industrial applications. With expertise in both hardware and software, we deliver robust solutions that enhance performance and efficiency. Trust Forwessun for high-quality strain gauge services designed to meet the demands of your industry.
About us
Forwessun – Leaders in In-Circuit and Functional Test Solutions
Forwessun is a global company with over 50 years of experience in providing In-Circuit-Test (ICT) and Functional-Test (FCT) solutions to the Automated Test Equipment (ATE) industry. We work with manufacturers worldwide to ensure that printed circuit boards (PCBs) are rigorously tested before they are integrated into finished products. Our expertise spans multiple industries, including automotive, aerospace, medical, telecommunications, and industrial electronics.
We specialise in developing test software, manufacturing test fixtures, and supplying test systems to help electronics manufacturers maintain the highest quality standards. Our solutions ensure that PCBs function correctly, reducing the risk of faults and failures in end-user applications.
A Complete Test Solution
What sets Forwessun apart is our ability to provide a comprehensive test solution. Unlike many competitors who focus on a single aspect of PCB testing, we cover every stage of the test process. From test software development and fixture manufacturing to on-site installation and ICT machine refurbishment, we offer everything our customers need to optimise their testing capabilities.
Test Fixtures
We have extensive experience in designing and manufacturing ICT and FCT fixtures tailored to meet the specific needs of our customers. Whether for high-volume production or highly specialised applications, our test fixtures provide precision, reliability, and durability.
Our test fixture solutions include:
✔ Wireless Test Fixtures – Eliminating unnecessary wiring for improved accuracy.
✔ Connector Insertion & Loopback – Ensuring reliable electrical connectivity.
✔ Vortex Cooling – Keeping test environments stable for optimal results.
✔ High-Density & Extended Fixtures – Accommodating complex board designs.
✔ Auto-Opening & Auto-Closing Fixtures – Enhancing automation and efficiency.
✔ Finite Element Analysis (FEA) & Strain Gauge Testing – Ensuring fixture stability.
✔ Custom Shorting PCB – For advanced circuit validation.
Test Software
Forwessun’s software engineering teams have decades of experience in developing test programs for a wide range of test platforms. Our custom test solutions help manufacturers reduce errors, improve efficiency, and increase yield.
We provide:
✔ Platform-Specific Test Software – Supporting Teradyne, GenRad, HP3070, and Keysight systems.
✔ Design for Test (DFT) Analysis – Optimising PCB layouts for better test coverage.
✔ Device Programming – Ensuring accurate configuration of programmable components.
✔ Paperless Repair Systems – Enhancing repair traceability and reducing paperwork.
Test Systems & Services
Forwessun provides both new and refurbished test systems, ensuring that manufacturers have access to high-quality, cost-effective solutions for their testing needs.
Our Test System Services include:
✔ Refurbished ICT Systems – Cost-effective, fully serviced systems.
✔ Parts for Sale – A full inventory of spare parts for test machines.
✔ Repair & Exchange Services – Diagnosing and fixing faulty machine cards and equipment.
✔ Calibration & Service Contracts – Ensuring test systems remain in peak condition.
✔ Purchase of Unwanted ATE – Helping customers repurpose or upgrade equipment.
Global Support & Engineering Expertise
We believe that strong customer relationships and local support are essential to success. Forwessun employs skilled engineers in key locations worldwide, ensuring that our customers always have access to technical expertise and fast response times. Whether it’s a system installation, emergency repair, or software development, our teams provide on-site and remote support to keep production lines running smoothly.
We are proud to have shipped products to 20 different countries in 2020 alone, reinforcing our position as a trusted partner in PCB testing worldwide.
Forwessun is ready to help with all your ICT and FCT test needs.
📞 +44 (0)151 220 5558
📧 admin@forwessun.com
🌍 www.forwessun.net
