TIS MFTPRO TRMS Professional Multifunction with EVSE Testing Capabilities
TIS 859 Elite Voltage & Continuity Tester with Removable Leads
TIS 1900 Thermal Imaging Camera
3 Gang 13 Amp Converter Socket
• A simple way to change a (1 or 2 gang socket) into a (3 gang switched socket)
• Colour: White
• Included: M3.5 fixing screws & instructions
• Dimensions: 200 x 85 x 12mm depth
• Compliant with BS 1363-2
Deco Victorian Polished chrome 1 GANG 2 WAY 100W LED DIMMER SWITCH
Product Code: VPCH161
Description: 1 Gang 2-Way 100W Dimmer Switch
General Info:
Plate Dimensions: 88mm W x 88mm H x 8mm D
With Gasket: 91mm W x 91mm H x 9mm D
Plate Fixing Centres (Horizontal): 60.3mm
Style: Victorian
Finish: Polished Chrome
Gasket Colour: Supplied with both Black & White
Load Rating: 5–100W, suitable for LED
2-Way Switch: Yes
Control Type: Press ON/OFF, Rotate to Dim
Dimmer Technology: Trailing Edge
Load Type: Capacitive
Minimum Back Box Depth: 25mm
Warranty:
General: 10 years
Electronics: 1 year
Standards:
BS EN 60669-1
BS EN 60669-2-1
BS EN 55015
BS EN 61000-3-2
Additional Info:
Use branded LED lamps with Deco® trailing edge dimmers for optimal performance; non-branded LEDs may require reducing the dimmer rating. Contact Click® Technical Support for guidance.
Compatible Dimmer Modules:
MD9014: 100W Dual Mode LED Dimmer Module
MD9001: 6A Push ON/OFF (Non-Dimmable) Module
MD9010: 1–10V Analogue Rotary Dimmer Module
MD9022: 40–250W Leading Edge Dimmer Module
MD9042: 60–400W Leading Edge Dimmer Module
Project Untethered Charger
Featuring built-in pen fault protection as standard, our pro earth APEX EV charger eliminates the need for an earth spike upon installation,or carry out any costly ground-works.
The APEX features multiple connection options including WIFI, Bluetooth and 4G connectivity. Providing seamless & wireless communication access for your EV charger.
With dynamic load balancing the APEX EV charger is able to intelligently adjust how much power it draws, allowing it to never draw too much power,but always operate at a happy optimum.
Being fully solar compatible,utilise the power of the sun with APEX. Take advantage of green, solar energy by using the sun to power & charge your vehicle.
1 Gang Outdoor Socket Kit
Measurements of box 101 x 135 x 80.5mm
Lid can be closed with plug plugged in
Perfect for Lawnmowers, power washers, hedgetrimmer
Corrosion resistant IP65 waterproof outdoor enclosure
It has multiple 20mm knockouts for cable entry
It can be locked with a padlock for security
Supplied with Gland for cable entry ,fixing screws and plugs
Waterproof and Dustproof (Weathersafe)
Polycarbonate construction
3 Pair White Telephone Cable
1.0mm 6242Y Twin & Amp
(Cable will only be delivered in the Kirklees area by our own vehicle, or can be collected from our Trade-Counter.For Deliveries outside Kirklees please ring sales for a Quote on carriage befor placing order)
0.5MM 2192Y White Flex Cable
(Cable will only be delivered in the Kirklees area by our own vehicle, or can be collected from our Trade-Counter.For Deliveries outside Kirklees please ring sales for a Quote on carriage befor placing order)
1.5MM 2Core+E Red FIRETUF Cable
100mt drums.
300/500v grade,
Red sheath,
Temp rating 90degees c.to BS6387cwz.
Price is for 100Mtr Drum
10MM 3 C0RE XLPE/SWA Cable
Available on the drum or as a cut length.This is amulticore armoured cable 600/1000v grade to BS5467.
(Cable will only be delivered in the Kirklees area by our own vehicle, or can be collected from our Trade-Counter.For Deliveries outside Kirklees please ring sales for a Quote on carriage befor placing order)
1.5mm 3 CORE SY Control Flexible Cable
2.5MM 5CORE YY Flexible
1 Meter 25mm Flexi Tail Kit
1m of 25mm 6181Y Double Insulated Stranded Flexible Blue Cable
1m of 16mm 6491X Green/Yellow Earth Cable
All Cable is BASEC Approved and Manufactured to all UK and European Standards
6 WAY IP40 Metal Enclosure
IP40,
2 x 20mm + 1 x 25mm cable entries (Top & bottom).,
Complete with earth and neutral terminal & din rail,
Neutral cable sold seperately,
H:248 x W:161 x D:78mm
Niglon 4-5 Modular IP20 Enclosure EI455
The unit is complete with din-rail pre-built into the back plate to allow universal mounting point for most contractors.
Technical specification-
Max Modules 5
Material High performing material
Material stability -15°C to 60°C
Level of resistance IK09
Colour RAL 7035
IP Rating IP55
Standards of Compliance
EN 60439-1,
IEC 670-1:94
Dimensions (HxWxD) 175 x 125 x 111mm
NOGLON IP20 2 Module Enclosure
The unit is complete with din-rail pre-built into the back plate to allow universal mounting point for most contractors.
Technical specification-
Max modules- 2
IP Rating- IP20
Dimensions- 130mm H x 52mm W x 62mm D
NIGLON AC Surge Protection Device
230/400v Type 2/3 Surge Protection Device.
Technical Specifications.
Description Compact 3 + N phase type 2 (or 3)
Network 230/400V 3-Phase
Connection Mode L/N and N/PE
AC system TN
Max. AC Operating Voltage 255 Vac
Temporary Over Voltage [TOV] Characteristics - 5 sec 335 Vac withstand
Temporary Over Voltage [TOV] Characteristics - 120m 440 Vac disconnection
Temporary Over Voltage N/PE [TOV HT] 1200 v/300A/200ms withstand
Residual Current Leakage Current at Uc None
13 WATT 2 PIN PL-C Lamp
Please note that this product is not suitable for dimming.
250W GES Mercury Vapour Lamp
Mercury vapour lamps have a white light, similar to a halophosphate fluorescent tube. Their long life, low cost and reliability make them a good choice for industrial interior lighting and lower wattage floodlights.
Bulb Spec: Wattage - 250w, Voltage - 240v, Cap Base - GES (Giant Edison Screw) Approx Life (Hours) 24000, Colour 3500k colour temp (White)
Please note that this product is not suitable for dimming.
240V 750W Linear Tungsten Halogen Lamp
Linear tungsten halogen lamps provide outstanding light quality. The Crisp white light of these halogen lamps delivers superior colour reproduction. Halogen lamps are also more energy efficient than conventional incandescent lamps and offer a longer life. Often used in outdoor flood lights.
Bulb Spec: Wattage - 750W, Voltage - 240V, Approx Life (Hours) 2000.
Please note that this product is suitable for dimming.

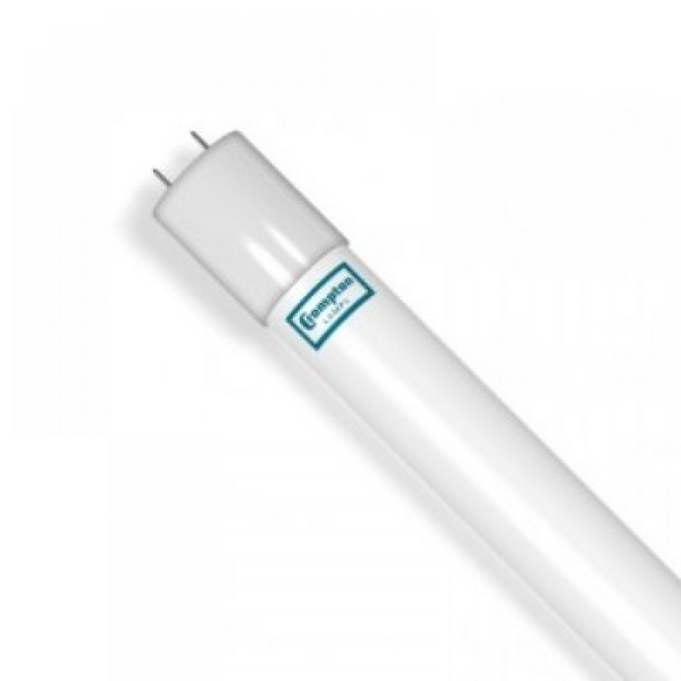

2ft 9W Glass Cool White LED Tube
LFT29CW – 2'/588mm 9W LED T8 Glass Tube
Cap: G13
Colour Temperature: 4000K (Cool White)
Lumen Output: 1150 lm
Beam Angle: 320°
Colour Rendering Index (Ra): 80
Instant full brightness, not dimmable
Recommended for indoor use only
Equivalent to 30W 3ft fluorescent
Features:
Full glass LED T8 tube with internal diffused coating for wide 320° light output
Energy-efficient with low power consumption
Includes LED starter for direct retrofit into existing single battens
Long lifespan: 40,000 hours, 15,000 switching cycles
4-year warranty
Available in 2ft, 3ft, 4ft, 5ft, and 6ft lengths
Operates in temperatures from -20°C to 50°C
Mercury-free, warp-resistant, no bending or discolouration over lifetime
Not compatible with emergency circuits
Supplied in rigid 2mm cardboard tube to reduce transport damage
10W LED Floodlight +PIR IP65
IP65 protection of full fitting,including PIR against dust and moisture
Angled bracket for ease of installation
Breather gland incorporated to protect against condensation
Opal glass for reduced glare
Supplied pre-wired with 800mm flex
Driverless technology, mains LED Chips
10 - 2000 Lux adjustable
10sec to 7min adjustable 'on' time
180º detection
1.8m to 2.5m mounting height
10m detection at 2.5m
Manual override
4000K colour temperature
This product contains a light source of energy efficiency class E
Recommended Product Location Exterior Wall Mount for security lighting
Origin of manufacturer China
Warranty 3 Year Warranty (See JCC Website for terms and conditions)

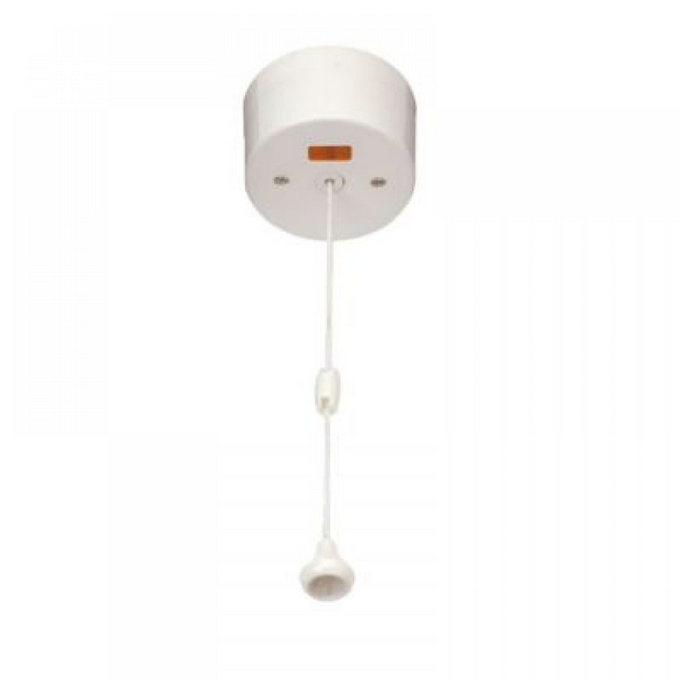

16A Double Pole Pull Switch with Neon
Scolmore Click – PRC216
16A Double Pole Pull Cord Switch With Neon
General Information:
Dimensions: 70mm Dia x 42mm Depth
Style: Round
Colour: Polar White
Materials: Cover & Pattress – Urea; Terminal Housing – Urea; Neon Lens – Polycarbonate; Terminals – Brass; Terminal Screws – Steel & Yellow Passivated; Internal Busbars – Formed Pressed Brass; Earth Strap – Mild Steel; Pull Bell – Urea
Anti-Microbial Certified: Yes
Operating Voltage: 250V AC, 50Hz
Resistive Load Rating: 16A
Termination Type: Screw
Terminal Size: Ø4mm
Terminal Torque: 0.4Nm
Terminal Capacity – Solid: 2x1.5mm² or 1x2.5mm²
Double Pole Switch: Yes
Twin Earth Terminals: No
Neon Indicator: Yes, Orange
Back Box & Installation:
Supplied with Pattress Back Box
Back Box Knockouts – Total: 2x18x6.5mm and 2x18x8mm
Back Box Knockouts – Top: None; Sides: 2x18x6.5mm; Bottom: None; Rear: 2x18x8mm
Protection & Operation:
Ingress Protection: IP20
Operating Temperature: -5°C to +40°C
Warranty & Standards:
Warranty: 25 Years
Standards: BS EN 60669-1
