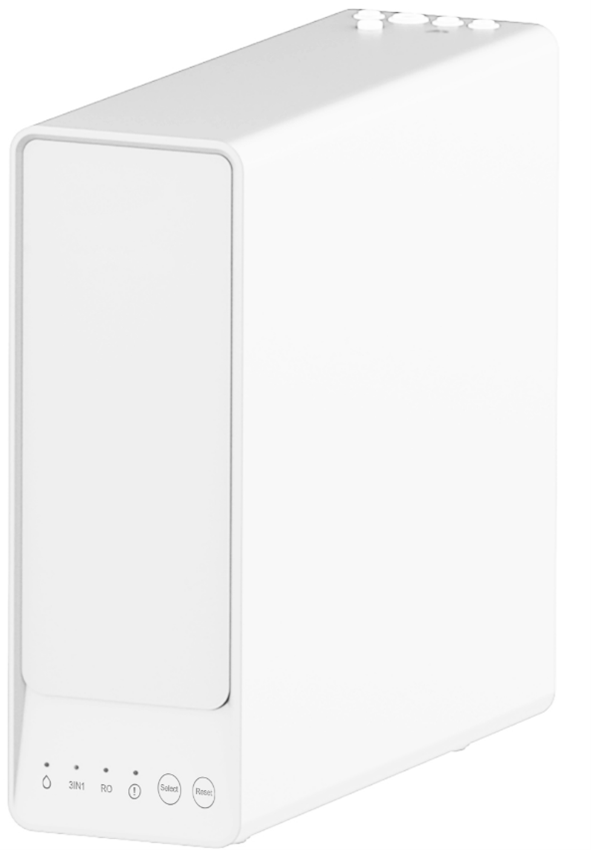

Allpure Reverse Osmosis 3000 Litre per Day Tankless Full Kit Including Faucet Tap
SPECIFICATIONS
Model | RO System | |||
Water Supply | Municipal Water | |||
Feed Line Pressure | 1 - 4 bar | |||
Product Flow | 2 lpm | |||
Salt Rejection | ≥93% | |||
Recovery | ≥65% | |||
Feed Water Temperature | 5 ~ 38˚C | |||
Sound Level | ≤60dB | |||
Electrical | Input | 100 ~ 240V AC 50/60Hz 3A | ||
Output | DC24V 5A | |||
Power Used | 120W | |||
Membrane | Type | Thin Film Composite Membrane | ||
Rating | 3000 lpd | |||
Connection | RO | 1/4” Quick Connect | ||
Inlet | 3/8” Quick Connect | |||
Drain | 1/4” Quick Connect | |||
Power | Quick Connect Power Cable | |||
Accessory | Tap & Installation Kit Included | |||
Gross Weight | 15 kg | |||
Product Dimension (W x D x H) | 130 x 397 x 376mm | |||
Carton Dimensions (W x D x H) | 358 x 476 x 440mm | |||
BEFORE INSTALLING
• You must read and understand the contents of this manual before installing or operating your RO system.
• The RO Systems has a 1-year warranty from the date of sale.
Personal injury or property damage could result if you fail to follow instructions in this manual.
• This system and its installation must comply with state and local regulations. Check with your local public works department for plumbing and sanitation codes. Local codes should be followed in the event the codes conflict with any content in this manual.
• This RO system must be operated on pressures between 1 bar to 4 bar. If the water pressure is higher than 4 bar, use a pressure reducing valve in the water supply line to the RO system.
• This unit must be operated at temperatures between 5°C - 38°C (41°F and 110°F).
• Do not use this RO system on hot water supplies.
• Do not install this unit where it may be exposed to weather, direct sunlight, or temperatures outside of the range specified above.
• The appliance is only to be used with the power supply unit provided with the appliance.
• The appliance must only be supplied at safety extra low voltage corresponding to the marking on the appliance.
• Do not use water that is microbiologically unsafe without adequate disinfection before or after this system.

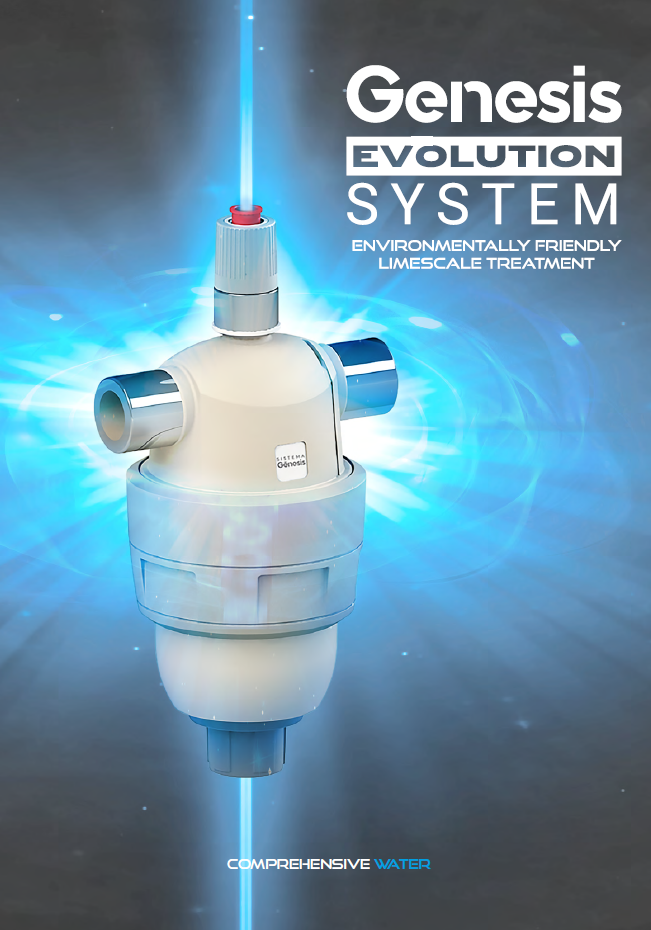

Genesis Evolution System
Environmentally friendly limescale treatment.
The Genesis System is the most environmentally friendly hard-water treatment solution available. As it is not a salt-based system and does not use chemical products, it does not contaminate the public water network.
Acid Washed Granular Activated Carbon
Designed to reduce taste odour and chlorine in water
2 inch diameter body
2x6 inch body size or 5x15cm
RO post system
Class 1 filtration media
1 year service life or 1000 US gallons or 3800 UK litres
Cubic inch volume of 9.5.
Block Sediment Reduction
Body size of 2 x 6 inches or 5 x 15cm
2 inch diameter filter bodies
Reduces sediment down to 5 micron
Service flow rate of 0.75 GPM or 2.8 LPM
Works with maximum pressure of 125 PSIG
Temperature 35 - 100 F or 2 - 38C.
Available with all connection combinations
Opella Style Tap
Features engineered plastic housing and plastic water passages
Has a 36" pre installed 1/4" inlet tubing
Has a 3" inlet shank with 7/16" - 24 threads
Lead free gooseneck spout swivels 360 degrees.
1/4 turn tap.
Three-Way Standard Tap
Two in one faucet supplies filtered and hot /cold water.
Filtered water is delivered via an independent tube to avoid mixing with tap water
Comes with 3/8" and 1/2"steel wired braided connecting hose
The connecting hose is 1.5 feet long
Meets NSF 61
Water Fountains Taps
C02 Carbon Dioxide 600gr Cartridge
Replacement cartridge designed for point of use applications that dispense water or beer
The system is E290 approved and contain carbon dioxide.

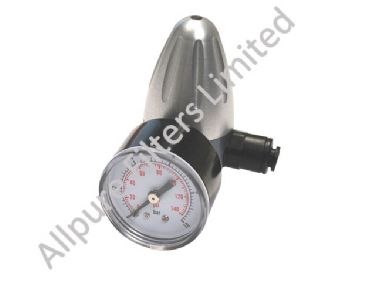

C02 Regulator
5L Descaler
Phosphoric acid descaler
5 litre bottle
Anti Bacterial Wipes
Food safe wipes
Tub of 100
3/8 Quick Connect Booster Pump
24 VAC, permanent magnet, totally enclosed, non - ventilated
20 AWG, 6" long lead
3 chamber diaphragm pump
Self-priming
Capable of being run dry
Nylon housing
EPDM valve
Santoprene diaphragm
Liquid temperature of 170oF or 77oc max
1/4 Quick Connect Booster Pump
24 VAC, permanent magnet, totally enclosed, non - ventilated
20 AWG, 6" long lead
3 chamber diaphragm pump
Self priming
Capable of being run dry
Nylon housing
EPDM valve
Santoprene diaphragm
Liquid temperature of 170oF or 77oc max

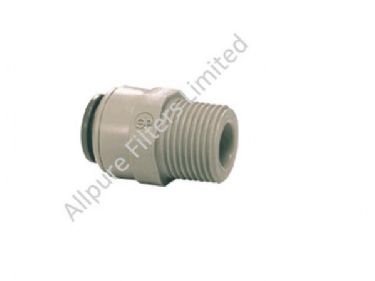

Straight Adaptor BSPT Thread
1/4 tube OD
1/8 threaded BSPT
Push fit technology
Disconnected quickly without the need for tools
Food quality and suitable for potable liquids
Suitable for soft metal and plastic tubes
Suitable for air or inert gases.
Superior flow characteristics

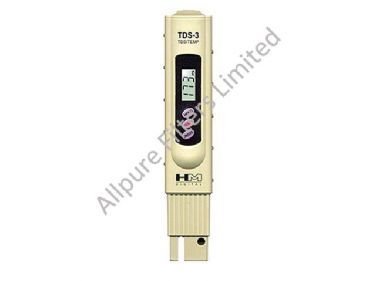

Handheld TDS Meter
Is ideal for all water purification applications, waste water regulation, aquaculture, hydroponics and colloidal silver
Highly efficient and accurate thanks to its advanced microprocessor technology
Measurement range 0-9990 ppm, from 0-999ppm
The resolution is in increments of 1 ppm from 1000 to 9990 ppm, 10ppm
1/2" BSPM x 1/2" BSPM Ball Valve

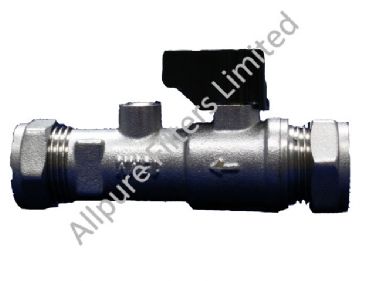

15mm Tee Double Check Install Rail
Latex Gloves
Powder free
100 per box
In size small to exl

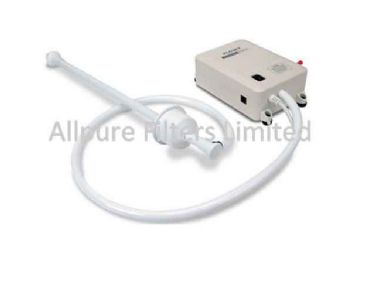

Flojet
Has a float switch for automatic shut off when the body is empty.
Has a built in check valve to prevent back flow
Universal seal cap fits most water containers
20" discharge hose is included.

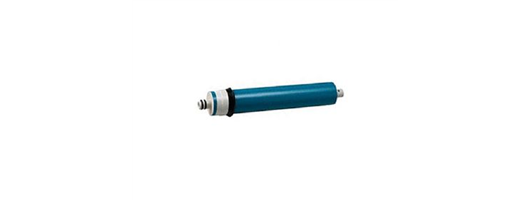

Filmtec Membranes
Used in under the sink water treatment and production of home drinking water.
High flux results in more water
Automated fabrication for precision, consistency and reliability
NSF/ANSI standrd 58 listed
Waterblock & Reset
Vertical installation preferred
3/4" BSP female inlet x 3/4" BSP male outlet
0.25 kgs
Pull the red trigger to manually reset the water block
Cold Water Dispense Valve
Dispenses low pressure (maximum of 0.2 bar) water or air
Used for cold water dispensers, pneumatic equipment and pressure relief situations
Available inline or at right angled.

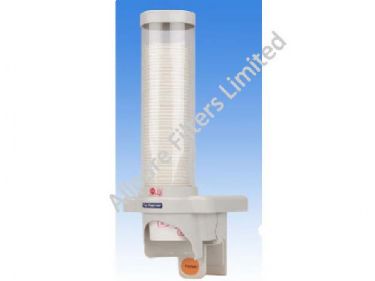

One Touch Cup Dispenser
World's most environmentally friendly cup dispenser
Its strong but simple mechanism ensures that only one cup at a time is dispensed
Comes with acetal wings, meaning that it can dispense plastic or paper cups 72- 80mm or 2 -3 inches
Body polycarbonate light grey colour
Transparent tube takes approx 50-75 cups and has a rim of 70mm
Individually boxed as quantities of 1, or as a multipack order of 12.

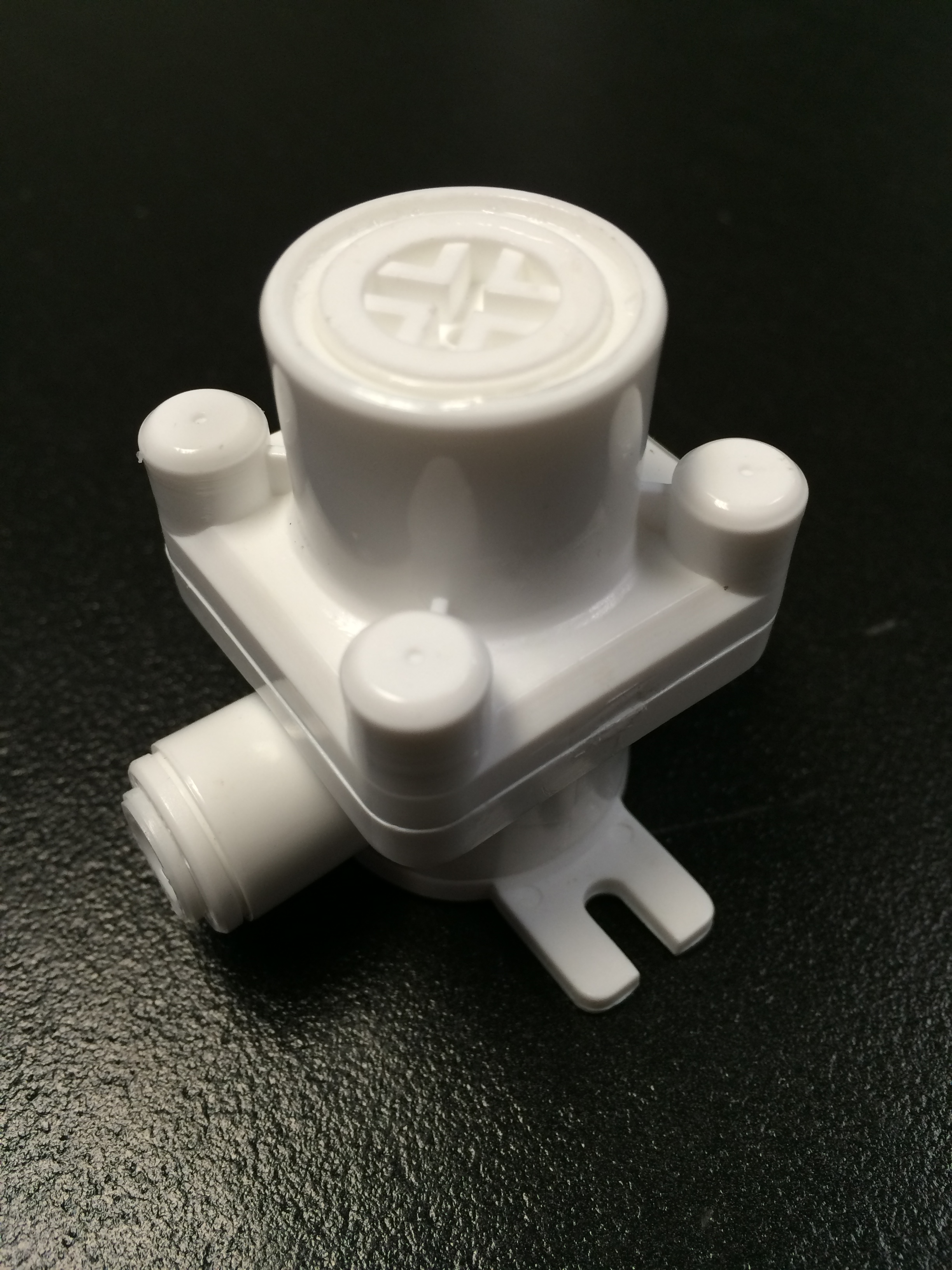

Fixed PRV1/4 Pushfit
Can be adjusted after installation.
With 1/4" John Guest pushfit fitting.
Install Cooler Rail
15mm compression inlet, isolation point and a double check valve. As well as an adjustable brass pressure reducing valve, waterblock, reset tool and exit in 1/4,5/16 or 3/8 pushfit
Manufactured from WRAS approved materials.
About us
Allpure Filters Ltd established in 1976, are a family owned SME company with many years’ of knowledge & experience in water filters & fittings. We are European distributors for Omnipure drinking water filters, John Guest fittings & distribution partners to 3M Cuno Solventum drinking water filters.
We pride ourselves on our comprehensive range of products, immediate stock availability and prompt shipping to companies across the UK, Ireland & Europe.
Our Core Products Include:
- Water Filters
- Reverse Osmosis Filters
- John Guest Fittings
- Hose and Tubing
- Water Blocks
- Pressure Regulators
- Water Cooler Install Rails and Sanitising Products
- Drinking Water Taps
We supply products from leading brands including 3M, Doulton, Everpure, Filmtec, Flojet, GM Rubinetterie, HM Digital, Hydravend, John Guest, Omnipure, Pentair, RG Italia, Silex, Siroflex & Tomlinson.
To place an order, please call us on 01252 519955 or email sales@allpurefilters.com. For new customers please visit our website and create an account.
