Company details for:

Interface Force Measurements Ltd

(1)
Interface Force Measurements Ltd logo 001

Ground Floor, Unit 19,
Duke''s Ride,
Wellington Business Park,
Crowthorne,
Berkshire,
RG45 6LS,
United Kingdom

Quick Links:

Products

SSLP − Low Profile Load Cell

SSLP − Low Profile Load Cell

The Interface SSLP low profile load cell is a low cost, tension and compression load cell. Dispite being offered at a competative price, the SSLP is a fully stainless steel device with an IP67 enviromental rating. The diaphragm design offers the high performance you'd expectfrom an Interface load cell with high natural frequency, low delection and high resistance to off axis loads. The SSLP is offered with an integral cable as standard with the option of a base and load cap also constructed from stainless steel. Applications include :- Structural Testing Jack Load Monitoring Airframe Testing Material Test Machine Feedback Fatigue Testing Rigs
Super SC Mini Load Cell

Super SC Mini Load Cell

The Super SC load cell from Interface is a small form factor S-Beam design load cell. It is designed to a general purpose, compact load cell but with the high performance you would expect from an Interface device. It's eviromentally sealed design is designed to offer superior resitance to off axis loads when compared to a conventional S-Beam design. Please register or login to download our White paper for more information.
 WT − Web Tension Load Cell

WT − Web Tension Load Cell

The WT, Web Tension load cell is a radial force sensor designed to measure the tension in webbing straps, aircraft cargo nets, conveyors belts or any application where tension measurement is important
 G-Series In-line Load Cells

G-Series In-line Load Cells

The GWMC miniature in-line load cell is part of the Interface G-Series product range for industrial and OEM users and applications. The GWMC is a tension and compression mini load cell with male, threaded studs top and bottom that can be placed in the load stream. It comes in a range of capacities from just 200 Newtons to 50 Kilo-Newtons and promises the highest quality with a competitive price point, as per all of Interface's G-Series products. Buy now at our on line store
 3AR 3 Axis Load Cells

3AR 3 Axis Load Cells

The Interface 3AR, round 3-axis load cell measures forces simultaneously in 3 mutually perpendicular axes: X, Y, and Z - tension and compression. Each axis provides a unique mV/V output and requires no mathematical manipulation. The 3-axis load cell is built to minimize eccentric loading effects and crosstalk between axes. The 3A Series 3-axis load cell is ideally suited to many industrial and scientific applications, such as aerospace, robotics, automotive and medical research (orthopedics and bio-mechanical). The load cell is provided in various capacity ranges and sizes with each of the three axes providing the same capacity.
 Interface LWHP14 Load Washer

Interface LWHP14 Load Washer

The LWHP14 is a precision load washer type load cell. It is ideal for compression only, bolt force or clamping force applications or any application where two peices are being pressed together. It features a all stainless steel construction and is available in capacities from 0.05kN to 100kN The LWHP14 features in our energy/electrolyzer-and-fuel-cell-tie-rod-monitoring application note
 ITL Tension Load Link

ITL Tension Load Link

The Interface ITL is tension load link featuring full stainless steel construction with IP66 environmental protection for lifting and weighing applications in the most demanding conditions. The ITL series is designed for easy installation and use with standard size shackles and can be connected to a digital indicator such as the Interface 9325 hand held display via a MIL specification connector and cable. The Interface series ITL Tension Link Load Cell has been designed for lifting and weighing in rugged or harsh environments and is manufactured entirely from stainless steel. The ITL series products are simple to install and are matched to standard shackle sizes. ITL series tension link load cells are normally supplied with a MIL specification plug and socket, and are environmentally sealed to IP66. The ITL series can be supplied as shown in this data sheet, or can be modified to meet a particular application requirement. We are always pleased to discuss any special requirements that can be accommodated. This product can be supplied on its own or combined with our extensive range of instrumentation to provide a complete load monitoring system.
 CTLB Tension/Compression Load Button

CTLB Tension/Compression Load Button

Model CTLB is a threaded load button for tension and compression load measurements up to 5000kg/ 10000lb. Fully welded cover (for SS load buttons), amplified and digitised versions are available on request. We can also customise this sensor for other thread sizes and cable sizes
Walkway & Runway Sensor

Walkway & Runway Sensor

XSensor's Walkway and Runway Sensor is a high resolution pressure mapping sensor with 7,680 sensor points. Combined with XSensor's electronics and Pro V8 software the Walkway/Runway sensor provides lab-quality data for plantar pressure and gait evaluation studies The sensor features a large, 1.24 square meter active area and ultra low profile ensures there is no interference with natural gait measurement. The sensor is calibrated from 1 to 128psi (0.67 to 88N/m2) with a resolution of 0.01psi, ensuring data integrity for assessment, research and clinical studies. The Walkway sensor is designed for portability, fast set-up and is easily rolled up for transportation
 PV-22H2 Hydrogen Sensor

PV-22H2 Hydrogen Sensor

DDM´s PV-22H2-series hydrogen use pressure sensors has extensively been tested with various compositions of hydrogen, oxygen, water and water vapour. The pressure modules and process connections are made of 316L stainless steel. They are fit together without seals, being fully welded and helium leak tested. The PV-22H2 is supplied with a manufacturer´s declaration for hydrogen use. The PV-22H2 is already in use with a well known car manufacturer who has already proven the PV-22H2 pressure sensors to be both accurate and reliable.
GP:50 350AI/AN Thru-Flow - Pressure Sensors

GP:50 350AI/AN Thru-Flow - Pressure Sensors

GP:50's model 350 is a thru-flow design pressure transducer that features a unique, one-piece flow-through design that provides a zero internal dead volume, eliminating the need for tee's or dead-ended process connections. The design removes the possibility of trapped media or contamination, allowing for a clean-in-place device, a sanitary, in-line solution. Sectors applying the GP:50 350 include chromatography, pharmaceutical, biotech, homogenisation, food processing, and high purity applications.

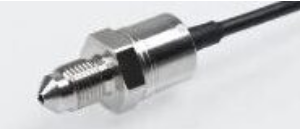

 PV-15B Brake Pressure Sensor

PV-15B Brake Pressure Sensor

DDMS' PV-15B brake pressure sensor is designed for automotive R&D engineers working with the hydraulic braking system of ICE, Hybrid or Electric Vehicles. The PV-15B is a small, light, weight pressure sensor designed to be mounted in the hydraulic system of vehicles whether they use disc or drum braking systems. The small form factor of the PV-15B enables it to be mounted in the smallest, most confined spaces. It’s also temperature and vibration resistant with a high burst pressure of 400 bar ensuring accurate and reliable pressure measurement.
 GP:50 112, 212 & 312 Series - Pressure Sensor

GP:50 112, 212 & 312 Series - Pressure Sensor

GP:50 112, 212 & 312 Series
GP:50s 112, 212 and 312 range of ulta high pressure sensors are designed for applications where pressures start at 20,000psi (1379bar) The fully welded, stainless steel constuction means this range of sensors are robust enough to offer a long, reliable service life in applications like; Oilfield well heads Water jet cutting Aseptic food processing Lab R&D Test Stands
Liquid H2 Pressure Sensor

Liquid H2 Pressure Sensor

The GP:50 311 is a hazardous duty transducer, for the measurement of liquid hydrogen pressure at -253°C, the main applications being transport and storage.

Tested by NASA to -269°C, the temperature of liquid helium.
18-inch stainless steel armoured cable to separate the sensor’s electronics from the actual pressure sensing element that will be exposed to the extreme temperatures of liquid hydrogen.
Zero and span adjustment pots.
Liquid H2 Pressure Sensor Compatible

Liquid H2 Pressure Sensor Compatible

The GP:50 7720H2 is a cryogenic pressure transducer, offering consistent measurement accuracy in temperatures as low as -253°C.
Semota Continuous Remote Monitoring

Semota Continuous Remote Monitoring

SEMOTA is a hardware and software solution with a web-based application that enables the remote monitoring of any load cell, force, torque or pressure sensor, using our Wi-Fi enabled hardware.

SEMOTA Continuous Remote Monitoring provides dynamic dashboard views of your events, analysis and device control. Information can be captured and stored for review and in depth analysis. Linkage to common messaging systems deliver live alerts for device management. Tailor and build applications to suit your needs and devices. Read more below, then complete the form and we’ll arrange a demonstration.
 AT104 Compact Force & Torque Transducer

AT104 Compact Force & Torque Transducer

The AT104 force and torque transducer is a small form factor reaction torque device. It's pertect for measurement when you need to measure both force and reaction torque simultaniously. The AT104 is available in two capacities: 20N/0.1Nm and 50N/0.5Nm with 150% CAP safe overload. The AT104 features a very short axial length for simple installation into restricted spaces
 Flange Mount Rotary Torque Transducers

Flange Mount Rotary Torque Transducers

Flange Mount Rotary Torque Transducers
The Interface range of flange mount rotary, spindle torque sensors includes the T31, T32, T33 and T34 . This design can offer the user advantages over other types of devices: A very short axial length, Simple installation, Integrated speed / angle measurement. The T31, T32, T33 and T34 are all a contactless rotary devices offering torque measurement in capacities from just 1Nm to 500Nm at up to 2,000rpm.
WTSSHK-B-HL Wireless Bow Shackle

WTSSHK-B-HL Wireless Bow Shackle

The WTSSHK-B-HL is a range of wireless telemtry load shackles from Interface Force Measurements. Suitable for use in a wide range of industrial and marine heavy lifting applications, the WTSSHK-B-HL instrumented load shackles provide, live, wireless lifting data. when supplied with the WTS- The unique telemetry housing is manufactured from tough high performance polyamide resin making it strongyet light, resulting in a better balanced load shackle whencompared to others available on the market. Two clips enable you to open the housing to access and change the batteries, while the internal electronics underneath remain completely sealed. This includes the antenna to ensure maximum protection from damage. The built in radio telemetry electronics operates on the 2.4GHz licensefree frequency. The WTSSHK-B can also supply as standard with a handheld battery powered display which can toggle between MT or lbs, or alternatively, for multi-shackle applications, a single display can address up to 12 shackles for individual monitoring, or for summation/weighing applications.
 High Precision Flow Turbine Meter − VCT Series

High Precision Flow Turbine Meter − VCT Series

The VCT rotor geometry is further optimised and supported by a high-performance hybrid ball bearing. Those improvements result in a wide turndown and excellent repeatability. The turbine speed is detected with no drag to the rotor and converted into a common TTL frequency output.
 F6D45 Sensor for Robotic Applications

F6D45 Sensor for Robotic Applications

The multi-component sensor F6D45 is used for force and torque measurement in three mutually perpendicular axes. These 6 axis sensors are particularly suited for use with industrial robots
Flow Computer VCA Series

Flow Computer VCA Series

The smart VCA flow computer is designed for a harsh environment. It is the best choice for reliable operation at the demanding conditions of vehicle road testing. Due to the extremely compact housing, it simply fits into the engine compartment of eg EV vehicles, where space is limited.
 9825 Digital Display

9825 Digital Display

9825 Digital Display
The 9825 is a general purpose indicator that can be used with any mV/V sensor, including load cells, presure sensor and reaction for transducers. The 9825 features an easy to navigate menu with analoge output, peak/valley monitoring, USB connection and two relay/ set point alarms. It also features digital input for remote reset and tare. The display count +/-999,999 digits and 1,000,000 count <0.01% nonlinearity
 BX-8 Mounting Rack

BX-8 Mounting Rack

This mounting rack accomodates the BX8-HD15 BlueDAQ Series and BX8-HD44 BlueDAQ Series multi channel amplifiers. Holding up to 5 BX8's, it offers simultaneous acquisition and evaluation of measured values of up to 40 channels. Key guard and synchronization cable are included. This BX-8 rack also includes a single power input for upto five BX-8 multi channel amplifiers
XSensor HS Impact Testing

XSensor HS Impact Testing

XSensor's high speed pressure mapping system is the first system design to allow product designers and safety testing engineers to see, record and evaluate the distribution of force from high speed impacts on safety equipment such as helmets and body armour Evaluating the performance of helmets and other protective equipment designed to prevent injury requires detailed understanding of the pressure distribution on the body surface during dynamic impacts. XSENSOR’s high speed HS Impact system combined with our thin conformable sensors allow you to accurately measure those pressures and evaluate how different design configurations affect pressure distribution on impact.

About us

Interface Force Measurements Ltd serves as the primary distributor for Interface load cells in the UK, Ireland, Middle East, and North Africa. Although we are distinct entities, our shared interests and values have forged a robust and enduring commercial relationship that has spanned over three decades.

In addition to serving as the sole representative for Interface products, we have carefully chosen other brands within the sensor industry that align with comparable values, emphasising quality, reliability, and a strong commitment to customer satisfaction.

Our Products Include:

Load Cells
Interface produces and provides over 60 various types of load cells and mini load cells designed for force measurement. Our product line encompasses a broad spectrum of capacities, ranging from 1 lbf / 500 gf to 2 million lbf / 9,000 kN, with diverse configurations including mini-beam, S-Beam, column, and low profile options.

Torque Sensors & Torque Transducers
Interface provides a variety of torque sensors and transducers designed to meet the needs of a diverse range of applications. Our torque sensors come with capacities spanning from 0.005Nm to 340kNm. Each unit is crafted to the highest precision standards, ensuring precise and top-quality data collection.

Pressure Mapping Systems
Interface provides a selection of pressure mapping systems suitable for a range of applications, including but not limited to impact testing, pressure testing tires, runways, beds, seats, and various other uses.

In Vehicle Mini Pressure Sensors
Interface is pleased to introduce the innovative line of sub-miniature pressure/flow sensors from DDM to the automotive industry in the UK. DDM's sensors are primarily crafted for on-vehicle testing in challenging climatic conditions, spanning from -40°C to +125/150°C, and can also be utilised for bench use. All sensors boast a fully welded stainless steel construction, and users can customise pressure ports and electrical connectors to suit their specific application requirements.

Load Pins, Load Shackles & Tension Links
Load pins, load shackles, and tension links are available from Interface Force Measurements. Interface Force Measurements can now provide a variety of load pins, load shackles, and tension links suitable for a diverse range of industrial weighing applications, such as marine, offshore, industrial, civil engineering, crane, and overhead weighing and lifting applications. Our sensors are available in tension/compression and compression-only versions, with the choice of wired or wireless data transmission.

Hydrogen & Hybrid Vehicles
Our latest selection of flow sensors is suitable for gauging the flow and temperature of nearly any liquid, ranging from fruit juice and diesel fuel to coolants such as ethylene-glycol. Common applications include:
  • Assessing the flow around batteries and motors in electric vehicles (EVs) is essential to guarantee they maintain the ideal temperature for optimising charging efficiency and overall range.
  • Assessing the flow of coolant around Proton Exchange Membrane (PEM) fuel cells, which involve an electrolytic process for hydrogen generation within a fuel cell.
And much, much more.

Interface is a globally acknowledged brand, and our load cells, crafted with decades of expertise, have become the standard for thousands of users worldwide. Our products are unmatched in reliability, and every product line must meet this high standard before we recommend them to our customers. From aerospace giants to the most esteemed universities, our products are utilised, underscoring our reputation for providing quality solutions on projects of all scales across the globe.

Our website showcases our range of products, including Load Cells (for single and multi-axis force), Torque Sensors (both rotary and reaction), Pressure Sensors, and our Dynamic Pressure Mapping products.

We welcome any feedback or comments, whether positive or negative. Feel free to reach out to us via phone or email if you have any inquiries about our products or company.
